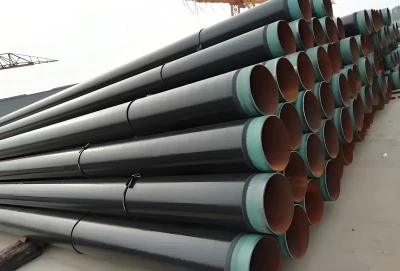

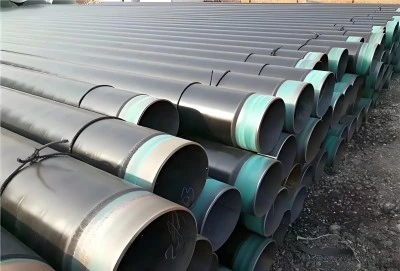

3PE coating steel pipe is a vital component in various industries, including oil and gas transportation, water supply systems, and offshore platform construction. This triple-layer polyethylene coating provides exceptional corrosion resistance and durability for underground and underwater pipelines. However, even the most robust coatings can sustain damage over time. This article explores effective repair methods for 3PE coatings, ensuring the longevity and integrity of your pipeline infrastructure.
Common Damages to 3PE Coatings
Impact and Abrasion: Causes and Identification
3PE coatings, despite their durability, are not immune to physical damage. During transportation, installation, or operational phases, pipelines can experience impacts from heavy machinery, rocks, or other abrasive materials. These incidents may result in scratches, dents, or even complete coating removal in localized areas.
Identifying impact and abrasion damage requires vigilant inspection. Look for visible scratches, gouges, or areas where the coating appears thinner or completely missing. In some cases, you might notice discoloration or a change in texture at the damaged site. Regular visual inspections and advanced non-destructive testing methods like ultrasonic thickness measurement can help detect these issues early.
Environmental Factors Affecting 3PE Coating Integrity
Environmental conditions play a significant role in the longevity of 3PE coating steel pipes. Extreme temperatures, UV radiation, chemical exposure, and soil stress can all contribute to coating degradation over time. In areas with high soil acidity or alkalinity, the coating may experience accelerated deterioration.
Signs of environmental damage include blistering, cracking, or peeling of the coating. You might also observe changes in the coating's color or texture, particularly in areas exposed to sunlight or harsh chemicals. Regular soil analysis and environmental monitoring can help predict and prevent such issues.
Cathodic Disbondment: A Major Threat to 3PE Coatings
Cathodic disbondment is a critical concern for 3PE coating steel pipe. This phenomenon occurs when the coating separates from the steel substrate due to electrochemical reactions, often exacerbated by the presence of cathodic protection systems. The result is a loss of adhesion between the coating and the pipe surface, creating potential entry points for corrosive elements.
Detecting cathodic disbondment requires specialized testing methods, such as the holiday detection test or adhesion pull-off tests. Visual signs might include blistering or bubbling of the coating, particularly near welded joints or areas with coating holidays. Regular monitoring of cathodic protection levels and periodic disbondment tests are crucial for early detection and prevention.
Step-by-Step Repair Process
Surface Preparation: Key to Successful 3PE Coating Repairs
Proper surface preparation is crucial for effective 3PE coating steel pipe repairs. Begin by cleaning the damaged area thoroughly, removing any dirt, debris, or loose coating material. Use appropriate solvents to degrease the surface, ensuring no contaminants remain.
Next, abrade the surrounding intact coating to create a roughened surface for better adhesion of the repair material. This step typically involves using sandpaper or a wire brush, being careful not to damage the undamaged coating further. For larger areas, consider using power tools with appropriate abrasive attachments.
After abrasion, clean the area again to remove any dust or particles. Use a tack cloth or compressed air to ensure a pristine surface. In cases of severe damage where bare metal is exposed, apply a compatible primer to prevent flash rusting and improve adhesion of the repair coating.
Application Techniques for 3PE Coating Patch Repairs
When applying patch repairs to 3PE coatings, precision and attention to detail are paramount. Start by selecting a compatible repair material – ideally, a 3PE repair kit from the original coating manufacturer or a certified equivalent. These kits typically include the necessary primers, adhesives, and polyethylene top coat.
Apply the primer (if required) in a thin, even layer over the prepared surface. Allow it to dry according to the manufacturer's instructions. Next, apply the adhesive layer, ensuring complete coverage of the damaged area and a slight overlap onto the surrounding intact coating.
For the final polyethylene layer, use heat-shrink sleeves or liquid-applied coatings, depending on the repair kit and damage size. When using heat-shrink sleeves, carefully wrap the material around the pipe, ensuring no air bubbles are trapped. Apply heat evenly using a propane torch or heat gun, moving continuously to avoid overheating any one area.
Quality Control Measures for 3PE Coating Repair Projects
Quality control is essential to ensure the effectiveness and longevity of 3PE coating repairs. Implement a comprehensive inspection process that includes visual examination, thickness measurements, and adhesion tests.
Use a wet film thickness gauge during application to ensure the correct coating thickness is achieved. After the repair has cured, perform a holiday detection test to identify any pinholes or thin spots in the coating. Adhesion tests, such as the peel test or pull-off test, can verify the bond strength between the repair material and the original coating.
Document all repair procedures, including surface preparation methods, materials used, and test results. This documentation is valuable for future reference and can help identify trends or recurring issues in your pipeline system.
Best Practices for Long-Term Protection
Regular Inspection Routines for 3PE Coated Pipelines
Implementing a robust inspection routine is crucial for maintaining the integrity of 3PE coating steel pipes. Develop a schedule for regular visual inspections, particularly in high-risk areas or locations prone to environmental stress. Train your inspection team to identify early signs of coating damage or deterioration.
Incorporate advanced inspection technologies such as pulsed eddy current testing or magnetic flux leakage to detect coating defects and potential corrosion under the coating. These non-destructive testing methods can provide valuable insights into the condition of your pipeline without the need for excavation or coating removal.
Maintain detailed records of all inspections, including date, location, findings, and any actions taken. This data can help identify patterns of damage and inform future maintenance strategies.
Advanced Monitoring Systems for 3PE Coating Performance
Leverage cutting-edge monitoring systems to enhance the protection of your 3PE coating steel pipes. Consider implementing remote monitoring solutions that use sensors to detect changes in temperature, pressure, or electrical resistance – indicators of potential coating failures or corrosion activity.
Utilize data analytics and machine learning algorithms to process the vast amount of data collected from these monitoring systems. These tools can help predict potential failure points and optimize maintenance schedules, allowing for proactive rather than reactive maintenance strategies.
Explore the use of smart pigs equipped with various sensors for internal pipeline inspection. These devices can provide comprehensive data on coating condition, pipe wall thickness, and potential corrosion sites, even in hard-to-reach areas of your pipeline network.
Training Programs: Enhancing 3PE Coating Maintenance Skills
Invest in comprehensive training programs to ensure your team has the skills and knowledge necessary for effective 3PE coating maintenance. Develop modules covering coating technology, damage identification, repair techniques, and quality control procedures.
Incorporate hands-on training sessions where team members can practice repair techniques on mock-up pipe sections. This practical experience is invaluable for developing the skills needed for real-world applications.
Stay updated on industry advancements by attending conferences, workshops, and seminars focused on pipeline coating technologies. Encourage your team to pursue relevant certifications, such as those offered by NACE International or similar organizations, to enhance their expertise and credibility.
Effective repair and maintenance of 3PE coating steel pipes are crucial for ensuring the longevity and reliability of pipeline infrastructure. By understanding common damage types, implementing proper repair techniques, and adopting best practices for long-term protection, pipeline operators can significantly extend the service life of their assets. Regular inspections, advanced monitoring systems, and ongoing staff training form the cornerstone of a comprehensive maintenance strategy. As technology continues to evolve, staying informed and adaptable will be key to maintaining the integrity of 3PE coated pipelines in challenging environments worldwide.
