Scope of Inspection:

A fundamental process that ensures the safety, quality, and consistency of these fundamental components in various businesses is the review of API carbon steel pipe. The degree of assessment encompasses an intensive evaluation of the lines' physical, mechanical, and compound properties to check their adherence to the rules set out by the American Oil Foundation.

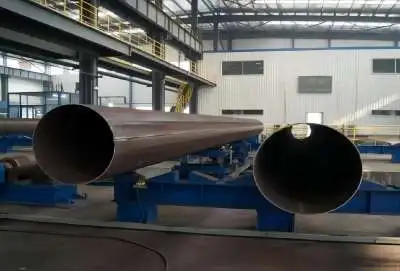

API carbon steel pipe

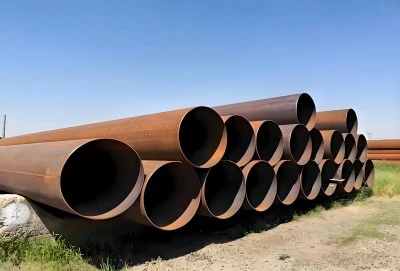

API carbon steel pipe



How to Conduct a Comprehensive Visual Examination of Carbon Steel Pipes:

Visual inspection is the foundation of API carbon steel pipe inspection, providing a thorough examination of the pipes' external and internal surfaces. This process involves trained inspectors meticulously scrutinizing the pipes for any visible defects, irregularities, or deviations from the specified standards.

External Visual Inspection:

1. Body of pipe: Reviewers inspect the line body for surface deformities, like pitting, consumption, scratches, gouges, or whatever other inconsistencies that could think twice about the line's respectability.

2. Ends of pipes: Straightness, squareness and the presence of any defects or damage that could affect the connection or welding of the pipe are checked at the ends of the pipe.

3. Markings: Auditors check the presence and clarity of required markings, for example, heat numbers, Programming interface monograms, and other ID markings, to guarantee recognizability.

Internal Visual Inspection:

4. Surface quality: Using specialized tools or borescopes, inspectors examine the internal surface of the pipes for defects, such as pitting, corrosion, or other irregularities.

5. Cleanliness: The internal cleanliness of the pipes is assessed to ensure they are free from foreign objects, debris, or contaminants that could affect their performance or cause operational issues.

Visual examination methods may likewise include the utilization of particular gear, for example, amplifying glasses, borescopes, or high-goal cameras, to upgrade the auditors' capacity to identify and assess imperfections or peculiarities.



Non-Destructive Testing (NDT) Methods:

Non-destructive testing (NDT) methods are essential for detecting subsurface or internal defects that may not be visible to the naked eye. Visual inspection provides valuable insights into the condition of API carbon steel pipes. Without affecting the properties of the pipes or causing any damage, these methods make it possible to conduct a more in-depth evaluation of their structural integrity.

1. Ultrasonic Testing (UT):

A common NDT technique for API carbon steel pipe inspection is ultrasonic testing. It includes bringing high-recurrence sound waves into the line material and breaking down the reflected waves to recognize inside absconds, like breaks, incorporations, or delaminations. The strategy is successful for distinguishing both surface and subsurface deformities and can give precise estimations of wall thickness.

2. Tests by radiography (RT):

Radiographic testing, otherwise called modern radiography, is a strong NDT method that uses infiltrating radiation (e.g., X-beams or gamma beams) to make a picture or radiograph of the line's inside structure. Cracks, porosity, inclusions, and lack of fusion in welds are just a few of the defects that can be identified using this method. When it comes to inspecting intricate geometries or inaccessible areas, radiographic testing is especially useful.

3. MPI, or Magnetic Particle Inspection,:

A common surface NDT technique, magnetic particle inspection is used to detect surface and near-surface defects in carbon steel pipes and other ferromagnetic materials. It includes prompting an attractive field in the line material and applying a ferromagnetic molecule suspension. Any imperfections or discontinuities in the material will make restricted attractive field twists, making the particles amass around the deformity region, making them apparent for assessment.

Other NDT strategies, for example, vortex current testing, fluid penetrant testing, and acoustic emanation testing, may likewise be utilized relying upon the particular prerequisites and assessment goals.



Dimensional Checks and Tolerances:

Dimensional checks and tolerance verification are crucial aspects of API carbon steel pipe inspection. These inspections ensure that the pipes conform to the precise dimensional specifications outlined in the relevant API standards, such as API 5L for line pipes or API 5CT for casing and tubing.

Dimensional checks typically involve measuring various parameters, including:

- Outside Diameter (OD): The external diameter of the pipe is measured at multiple locations to verify compliance with the specified tolerances.

- Wall Thickness: The pipe wall thickness is measured using specialized instruments or ultrasonic techniques to ensure it meets the minimum and maximum allowable values.

- Ovality: The degree of ovality, or deviation from a perfect circular cross-section, is assessed to ensure it falls within the specified limits.

- Straightness: The straightness of the pipe is evaluated to identify any excessive bending or curvature that could impact its performance or installation.

- End Squareness: The squareness of the pipe ends is measured to ensure they meet the requirements for proper connection or welding.

In addition to dimensional checks, inspectors also verify compliance with other API specifications, such as material composition, mechanical properties (e.g., yield strength, tensile strength, elongation), and weld quality, if applicable.

Dimensional inspections are typically performed using precision measurement tools, such as calipers, micrometers, laser scanners, or ultrasonic equipment, depending on the specific parameter being measured. Strict adherence to dimensional tolerances is crucial to ensure the pipes can withstand the intended operating conditions and perform as expected throughout their service life.



Carbon Steel Pipe Manufacturers:

When choosing carbon steel pipe manufacturers, LONGMA is a dependable and trusted partner that offers comprehensive carbon steel pipe solutions. LONGMA produces carbon steel pipes in accordance with the API 5L detail with a commitment to quality and adherence to industry standards.

LONGMA, a main maker of carbon steel pipes, utilizes state-of-the-art fabricating ways and severe quality control techniques to ensure that their items meet the best execution and trustworthiness norms. To guarantee consistency with API particulars, their carbon steel pipes go through severe investigation techniques that incorporate visual review, non-destructive testing, and layered checks.

LONGMA GROUP's expertise in the production of API carbon steel pipes is beneficial to the construction, petrochemical, energy, and oil and gas industries all at the same time. Their extensive plans include a wide range of items, including standardized and welded carbon steel lines as well as specialized coatings and end completes tailored to specific application requirements.

By forming a partnership with the business, customers can take advantage of LONGMA GROUP's extensive experience, technical expertise, and commitment to quality. As a result, they will receive carbon steel pipes with high performance that are dependable and meet their projects' stringent requirements.

LONGMA is a brilliant choice assuming that you are searching for a trustworthy maker of carbon steel pipes that puts a high worth on quality. If it's not too much trouble, you can contact them at info@longma-group.com with requests or additional data.
