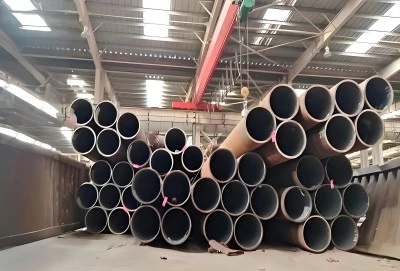

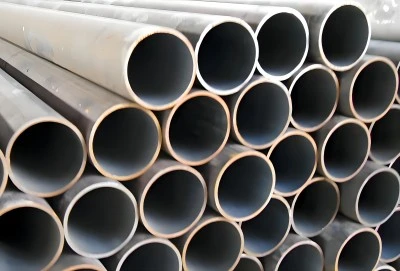

ASTM A500 structural tubing plays a vital role in modern construction and engineering projects worldwide. This high-strength steel material is widely used in oil and gas transportation, water supply systems, bridge and building structures, offshore platform construction, and industrial manufacturing. Ensuring the quality and integrity of A500 structural tubing through rigorous inspection and testing is crucial for the safety and longevity of these critical infrastructures. In this comprehensive guide, we'll explore the essential inspection and testing procedures that engineers, project managers, and industry professionals need to know to guarantee the reliability of ASTM A500 structural steel tubes in their projects.
Non-Destructive Testing Techniques Explained
Non-destructive testing (NDT) is a cornerstone of quality assurance for ASTM A500 structural tubing. These techniques allow for thorough inspection without compromising the integrity of the material. Let's delve into three primary NDT methods used in the industry:
Ultrasonic Testing for ASTM A500 Structural Tubing
Ultrasonic testing (UT) is a highly effective method for detecting internal flaws in ASTM A500 structural tubing. This technique uses high-frequency sound waves to penetrate the material and reveal defects such as cracks, voids, or inclusions. UT is particularly valuable for examining thick-walled tubes and can provide accurate measurements of wall thickness. The process is quick, reliable, and can be automated for large-scale inspections, making it ideal for projects in the oil and gas sector or offshore platform construction.
Magnetic Particle Inspection of Steel Pipes
Magnetic Particle Inspection (MPI) is another crucial NDT technique used for ASTM A500 structural tubing. This method is excellent for detecting surface and near-surface defects in ferromagnetic materials. MPI works by magnetizing the steel tube and applying magnetic particles, which congregate around any discontinuities, making them visible to inspectors. This technique is particularly useful for examining welds and areas prone to stress concentration in bridge and building structures.
Radiographic Testing: Ensuring Weld Integrity
Radiographic Testing (RT) is an indispensable tool for evaluating the integrity of welds in ASTM A500 structural tubing. This method uses X-rays or gamma rays to create images of the internal structure of the material, revealing defects such as porosity, inclusions, or lack of fusion in welded joints. RT is especially critical in applications like industrial manufacturing and water supply systems, where weld failure could have catastrophic consequences.
Quality Control: Key Inspection Points
Quality control is paramount when it comes to ASTM A500 structural tubing. Let's examine the key inspection points that ensure the highest standards are met:
Dimensional Accuracy in ASTM A500 Tubing
Precise dimensional accuracy is crucial for the proper fit and function of ASTM A500 structural tubing in various applications. Inspectors use advanced measuring tools to verify outside diameter, wall thickness, length, and straightness. Tolerance limits are stringent, often within fractions of a millimeter, to ensure seamless integration in complex structural designs. This level of precision is particularly important in projects like offshore platform construction, where even minor discrepancies can lead to significant issues.
Surface Finish and Defect Detection
The surface condition of ASTM A500 structural tubing is a key indicator of its quality and performance capabilities. Inspectors meticulously examine the surface for defects such as scratches, dents, or corrosion that could compromise the tube's integrity. Advanced visual inspection techniques, including high-resolution cameras and specialized lighting, are employed to detect even the smallest imperfections. This thorough examination is critical for applications in corrosive environments, such as oil and gas transportation systems.
Mechanical Property Verification for Structural Steel
Verifying the mechanical properties of ASTM A500 structural tubing is essential to ensure it meets the demanding requirements of various engineering applications. This process involves conducting tests to measure tensile strength, yield strength, and elongation. These properties are crucial for determining the tube's ability to withstand the loads and stresses it will encounter in service. For instance, in bridge construction, the steel tubes must possess specific strength characteristics to support heavy loads and resist fatigue over time.
Compliance: Meeting ASTM A500 Standards
Adherence to ASTM A500 standards is non-negotiable for ensuring the quality and reliability of structural steel tubing. Let's explore the key compliance requirements:
Chemical Composition Requirements for A500 Steel
The chemical composition of ASTM A500 steel is carefully controlled to achieve the desired mechanical properties. Spectrographic analysis is used to verify the precise percentages of elements such as carbon, manganese, phosphorus, and sulfur. The balance of these elements significantly influences the steel's strength, weldability, and corrosion resistance. Compliance with these compositional requirements is crucial for applications in diverse environments, from arid Middle Eastern oil fields to humid Southeast Asian industrial facilities.
Tensile Strength and Yield Point Testing
Tensile strength and yield point are critical parameters that determine the load-bearing capacity of ASTM A500 structural tubing. Testing involves subjecting sample sections to controlled tensile forces until failure occurs. The results must meet or exceed the minimum requirements specified in the ASTM A500 standard. This testing is particularly important for large-scale engineering projects, such as those undertaken by general contractors in the construction of high-rise buildings or industrial complexes.
Elongation and Flattening Test Procedures
Elongation tests measure the ductility of the steel, indicating its ability to deform under stress without fracturing. The flattening test, on the other hand, assesses the tube's ability to undergo severe plastic deformation without cracking. These tests are crucial for applications where the tubing may be subjected to bending or forming processes during installation or use. For instance, in water supply systems or oil and gas pipelines, where tubes may need to conform to specific terrain contours, these properties are essential for maintaining structural integrity.
The inspection and testing of ASTM A500 structural steel tubing are critical processes that ensure the safety, reliability, and longevity of various engineering projects across the globe. From non-destructive testing techniques to rigorous quality control measures and compliance with stringent standards, every step is designed to guarantee that the tubing meets the demanding requirements of modern construction and industrial applications. For professionals in the field, understanding and implementing these inspection and testing procedures is not just a matter of compliance – it's a commitment to excellence and safety in engineering practices.
Where to Buy ASTM A500 Structural Tubing?
When it comes to sourcing high-quality A500 structural tubing for your projects, look no further than Hebei Longma Group. Our state-of-the-art production facilities, equipped with German-imported machinery and four independently developed production lines, ensure top-notch quality and consistency. With a professional team of over 300 employees, including 60+ technical experts, we're at the forefront of innovation in steel tube manufacturing. Our comprehensive testing facilities, featuring online ultrasonic automatic flaw detectors and industrial X-ray television, guarantee that every tube meets the highest standards. We pride ourselves on fast delivery, with standard thickness pipes ready in as little as 7 days. Backed by complete certifications including API 5L, ISO 9001, ISO 14001, and more, we offer unparalleled quality assurance. Thanks to our long-term partnerships with raw material suppliers and an integrated production model, we maintain competitive pricing without compromising on quality. For all your ASTM A500 structural tubing needs, contact us at info@longma-group.com.
