Best practices for surface preparation before FBE application

Proper surface preparation is crucial for the successful application of Fusion Bonded Epoxy (FBE) coatings on steel pipes. FBE coated steel pipes are widely used in oil and gas transportation, water supply systems, and offshore platforms due to their exceptional corrosion resistance and durability. To ensure optimal adhesion and long-lasting protection, industry professionals must follow rigorous surface preparation techniques before applying FBE coatings. This article delves into the essential steps, common pitfalls, and advanced techniques for achieving superior FBE coating results.

Essential steps in FBE pre-coating preparation

Proper cleaning and degreasing of steel surfaces

The first critical step in FBE pre-coating preparation is thorough cleaning and degreasing of steel surfaces. This process removes contaminants such as oil, grease, and dirt that can interfere with coating adhesion. Effective cleaning methods include solvent degreasing, alkaline cleaning, and steam cleaning. It's essential to use appropriate cleaning agents that won't leave residues on the surface. After cleaning, surfaces should be inspected to ensure all contaminants have been removed.

Achieving optimal blast profile for FBE adhesion

Achieving the right blast profile is crucial for strong FBE adhesion. The blast profile, or surface roughness, provides a mechanical key for the coating to grip onto. Industry standards typically recommend a surface profile between 50 to 100 microns (2 to 4 mils) for FBE coatings. Abrasive blasting using materials like steel grit, aluminum oxide, or garnet is commonly employed to create this profile. The choice of abrasive material and blasting pressure must be carefully controlled to achieve the desired profile without damaging the steel substrate.

Environmental controls for FBE coating application

Environmental factors play a significant role in the success of FBE coating application. Temperature, humidity, and dew point must be closely monitored and controlled. The steel surface temperature should be at least 3°C (5°F) above the dew point to prevent moisture condensation. Relative humidity should be kept below 85% to avoid moisture-related issues. Proper ventilation and dust control measures are also essential to ensure a clean working environment. Many coating facilities use climate-controlled booths to maintain optimal conditions throughout the coating process.

Common pitfalls in surface preparation: What to avoid

One of the most common pitfalls in surface preparation is the inadequate removal of mill scale and rust. Mill scale, a layer of iron oxides formed during hot rolling of steel, can significantly impair coating adhesion if not completely removed. Similarly, rust must be thoroughly eliminated to prevent under-film corrosion. Blast cleaning to a near-white metal finish (SSPC-SP 10/NACE No. 2 standard) is typically required for FBE coatings. Failure to achieve this level of cleanliness can lead to premature coating failure and reduced service life of the steel pipe.

Overlooking moisture control in FBE application

Moisture control is often overlooked but is critical in FBE application. Even small amounts of moisture on the steel surface can lead to coating defects such as blistering or poor adhesion. In addition to maintaining proper environmental conditions, it's important to ensure that compressed air used for blasting and dust removal is dry and oil-free. Some facilities employ dehumidification equipment to maintain low humidity levels consistently. Regular checks of air quality and dew point should be conducted throughout the coating process.

Improper storage of FBE-coated pipes

Proper storage of FBE-coated pipes is often neglected but is crucial for maintaining coating integrity. Coated pipes should be stored in a clean, dry area protected from direct sunlight and extreme temperatures. Pipes should be supported on padded racks or timbers to prevent coating damage. Stacking heights should be limited to avoid excessive weight on lower pipes. Proper handling procedures, such as using fabric slings instead of chains or wire ropes, should be implemented to prevent coating damage during transportation and installation.

Advanced techniques for optimal FBE adhesion

Advanced blasting techniques can significantly enhance FBE bonding. Dual blasting, which involves a preliminary blast followed by a final blast with finer abrasives, can create an optimal surface profile for FBE adhesion. Vacuum blasting systems offer improved control over the blast profile and reduce dust emissions. Some facilities are experimenting with laser ablation for surface preparation, which provides precise control over surface roughness without the need for abrasive materials.

Cutting-edge surface treatment technologies

Emerging surface treatment technologies are pushing the boundaries of FBE coating performance. Plasma treatment can activate the steel surface at a molecular level, enhancing chemical bonding with the FBE coating. Nano-coatings applied as a primer before FBE application can improve corrosion resistance and coating adhesion. Some manufacturers are exploring the use of graphene-enhanced FBE coatings, which promise even greater durability and barrier properties.

Quality control measures for FBE coating integrity

Rigorous quality control is essential for ensuring FBE coating integrity. Advanced inspection techniques such as automated visual inspection systems and eddy current testing can detect coating defects with high precision. Holiday testing using high voltage spark testers helps identify pinhole defects in the coating. Adhesion testing, including pull-off and bend tests, verifies the bond strength between the coating and steel substrate. Implementing a comprehensive quality management system that includes regular audits and continuous improvement processes is crucial for maintaining consistent coating quality.

Proper surface preparation is the foundation for successful FBE coating application on steel pipes. By following industry best practices, avoiding common pitfalls, and embracing advanced techniques, pipeline engineers and coating professionals can ensure superior corrosion protection and extended service life for FBE coated steel pipes. As technology continues to evolve, staying informed about the latest developments in surface preparation and coating technologies is crucial for maintaining a competitive edge in the global market for high-performance pipeline solutions.

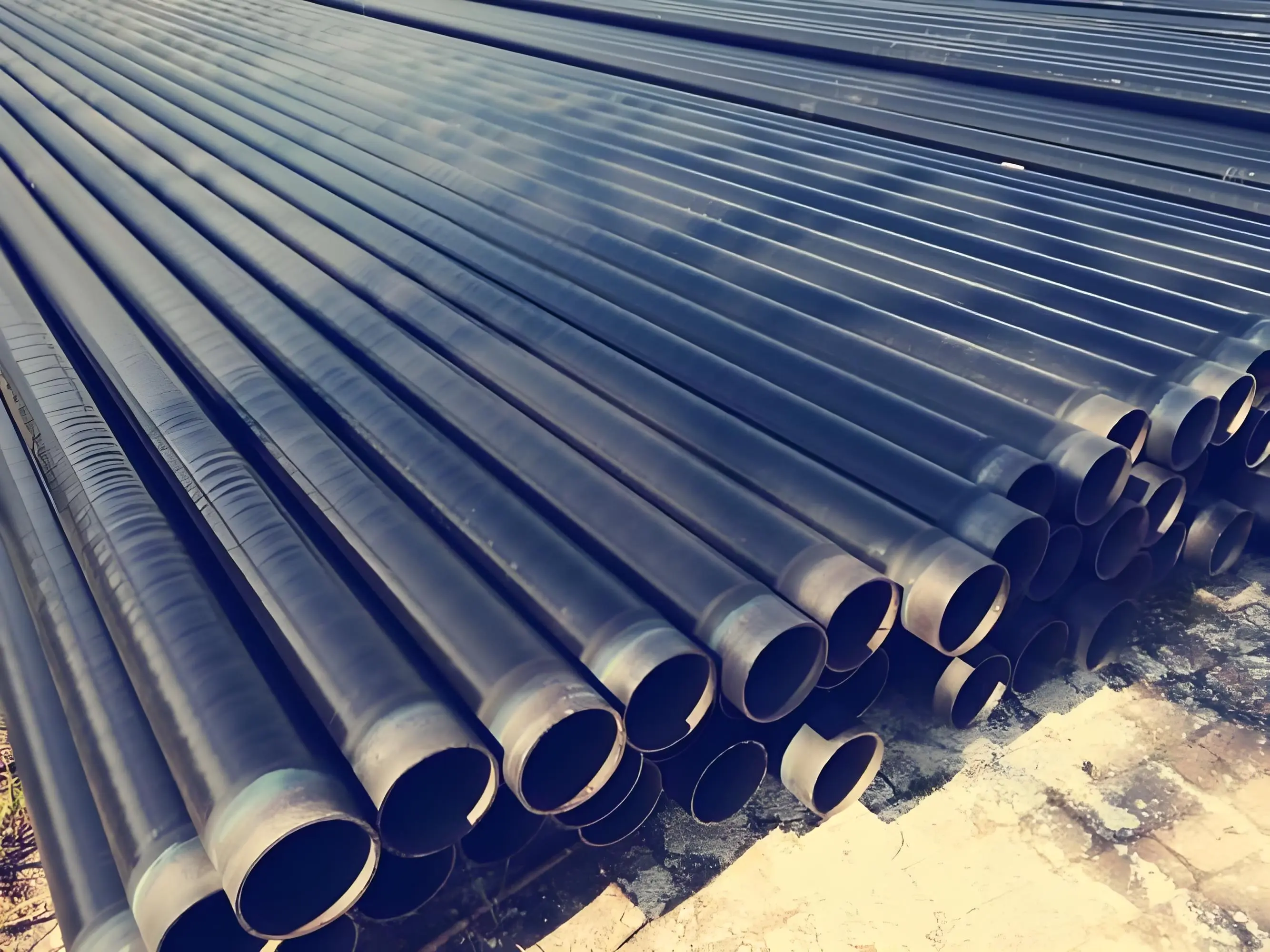

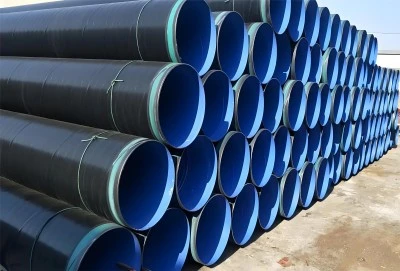

FBE Coated Steel Pipe For Sale

Hebei Longma Group offers premium FBE coated steel pipes that meet the highest industry standards. Our advanced production equipment, imported from Germany and complemented by four independently developed production lines, ensures top-quality FBE coatings. With a professional team of over 300 employees, including 60+ technical experts, we guarantee excellence in every aspect of production. Our comprehensive testing facilities, featuring ultrasonic flaw detectors and industrial X-ray equipment, ensure rigorous quality control. We pride ourselves on fast delivery, with standard thickness pipes ready in as little as 7 days. Our products are backed by complete certifications, including API 5L, ISO 9001, and ISO 14001. Thanks to our integrated production model and strategic partnerships, we offer competitive pricing without compromising on quality. For inquiries about our FBE coated pipes (API 5L, ASTM A53, EN10210, AS/NZS 1163 standards; 60.3-1422mm outer diameter; 6.02-50.8mm wall thickness), contact us at info@longma-group.com
