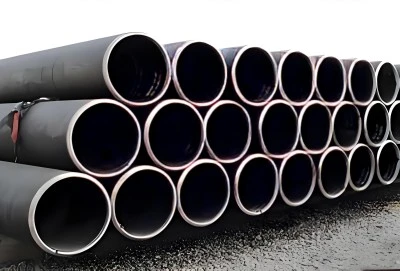

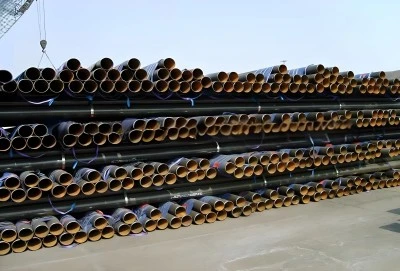

API 5L X42 PSL1 pipe is a widely used material in the oil and gas industry, known for its moderate strength and versatility. As a leading manufacturer of high-quality steel pipes, Longma Group often receives inquiries about the bending capabilities of X42 PSL1 pipe. In this comprehensive guide, we'll explore the bending properties of this pipe grade, recommended bending methods, and how bending affects its structural integrity and service life.
|
|
|
What is the bending capacity of API 5L X42 PSL1 Pipe?
The bending capacity of API 5L X42 PSL1 pipe is an essential factor to consider when planning pipeline installations or modifications. This pipe grade offers a good balance between strength and flexibility, making it suitable for various applications that may require bending.
API 5L X42 PSL1 pipe has a minimum yield strength of 42,100 psi (290 MPa) and a minimum tensile strength of 60,200 psi (415 MPa). These mechanical properties contribute to its bending capacity. The pipe's ability to bend depends on several factors, including:
- Pipe diameter
- Wall thickness
- Material composition
- Manufacturing process
- Environmental conditions
Generally, API 5L X42 PSL1 pipe can be bent to a certain degree without compromising its structural integrity. The minimum bend radius is typically expressed as a multiple of the pipe's outside diameter (OD). For X42 PSL1 pipe, the minimum bend radius usually ranges from 20 to 40 times the OD, depending on the specific pipe dimensions and project requirements.
It's important to note that the exact bending capacity may vary based on the manufacturing specifications and the intended application. Always consult with the pipe manufacturer or a qualified engineer to determine the specific bending limitations for your project.
What are the recommended bending methods for API 5L X42 PSL1 Pipe?
When it comes to bending API 5L X42 PSL1 pipe, several methods can be employed, each with its own advantages and limitations. The choice of bending method depends on factors such as pipe size, required bend angle, available equipment, and project specifications. Here are some commonly used bending methods for X42 PSL1 pipe:
1. Cold Bending
Cold bending is a popular method for bending API 5L X42 PSL1 pipe, especially for smaller diameters and moderate bend angles. This process involves bending the pipe at room temperature using specialized equipment such as hydraulic pipe benders or roll benders. Cold bending offers several advantages:
- Maintains the pipe's original mechanical properties
- Reduces the risk of material degradation associated with heat exposure
- Suitable for on-site bending operations
- Cost-effective for smaller pipe diameters
However, cold bending may have limitations for larger pipe diameters or tight bend radii, as it can lead to ovalization or wrinkling of the pipe wall.
2. Induction Bending
Induction bending is a more advanced method that involves heating a specific section of the pipe using an induction coil before bending. This technique is particularly useful for larger diameter pipes or when tighter bend radii are required. Advantages of induction bending include:
- Ability to achieve tighter bend radii compared to cold bending
- Reduced risk of pipe wall thinning or ovalization
- Suitable for a wide range of pipe diameters
- Better control over the bending process
However, induction bending requires specialized equipment and skilled operators, which may increase the overall cost of the bending operation.
3. Hot Bending
Hot bending involves heating the entire pipe section to be bent to temperatures above the material's recrystallization temperature. This method is typically used for very large diameter pipes or when extreme bend angles are required. While hot bending can achieve significant deformations, it has some drawbacks:
- May alter the pipe's microstructure and mechanical properties
- Requires careful control of heating and cooling processes
- More time-consuming and energy-intensive compared to other methods
- May necessitate post-bending heat treatment
Due to these factors, hot bending is less commonly used for API 5L X42 PSL1 pipe unless project specifications demand it.
4. Segmented Bending
For situations where a single large-radius bend is not feasible or economical, segmented bending can be employed. This method involves creating a series of smaller angle bends or using pre-fabricated elbow sections to achieve the desired overall bend. Segmented bending offers advantages such as:
- Ability to create complex pipe geometries
- Reduced stress on individual pipe sections
- Can be more cost-effective for certain applications
However, this method introduces additional welding points, which may require careful inspection and quality control.
When selecting a bending method for API 5L X42 PSL1 pipe, it's crucial to consider factors such as pipe dimensions, required bend radius, project specifications, and available resources. Consulting with experienced pipe manufacturers or bending specialists can help determine the most suitable method for your specific application.
How does bending impact the structural integrity and service life of API 5L X42 PSL1 Pipe?
Bending API 5L X42 PSL1 pipe can have various effects on its structural integrity and long-term performance. Understanding these impacts is crucial for ensuring the safety and reliability of pipeline systems. Let's explore the key considerations:
1. Stress Distribution
Bending introduces stress into the pipe wall, with the outer radius experiencing tensile stress and the inner radius experiencing compressive stress. The neutral axis, located at the center of the pipe wall thickness, remains relatively unstressed. Proper bending techniques aim to distribute these stresses evenly to minimize localized weak points.
2. Material Properties
The bending process can affect the mechanical properties of API 5L X42 PSL1 pipe, particularly in the bent region. Cold working during bending may slightly increase the yield strength and tensile strength while potentially reducing ductility. However, when performed correctly, these changes are generally within acceptable limits and do not significantly compromise the pipe's overall performance.
3. Geometric Changes
Bending can lead to geometric alterations in the pipe cross-section, such as:
- Ovalization: The circular cross-section may become slightly elliptical.
- Wall thinning: The outer radius may experience some wall thinning due to stretching.
- Wrinkling: The inner radius may develop small wrinkles or ripples if the bend is too severe.
These changes can affect fluid flow characteristics and may create stress concentration points. Proper bending techniques and adherence to industry standards help minimize these effects.
4. Fatigue Resistance
Bent sections of API 5L X42 PSL1 pipe may have slightly different fatigue resistance compared to straight sections. The altered stress distribution and potential microstructural changes can influence the pipe's ability to withstand cyclic loading. However, when bending is performed within recommended parameters, the impact on fatigue life is generally minimal.
5. Corrosion Resistance
Bending can potentially affect the pipe's corrosion resistance, particularly if it leads to surface defects or alters the protective coating. Proper surface preparation, coating application, and post-bending inspection are crucial to maintain the pipe's corrosion resistance properties.
6. Long-term Performance
When executed correctly, bending API 5L X42 PSL1 pipe should not significantly reduce its service life. However, factors such as the operating environment, pressure fluctuations, and maintenance practices play crucial roles in determining the long-term performance of bent pipe sections. Regular inspections and monitoring are essential to ensure the continued integrity of the pipeline system.
To minimize the negative impacts of bending on API 5L X42 PSL1 pipe and maximize its service life, consider the following best practices:
- Adhere to industry standards and specifications for pipe bending
- Use appropriate bending methods and equipment for the specific pipe dimensions and project requirements
- Conduct thorough inspections before, during, and after the bending process
- Implement proper quality control measures to ensure consistent bending results
- Consider the effects of bending on coatings and implement appropriate protection measures
- Develop and follow a comprehensive maintenance and inspection program for the pipeline system
Contact Longma
X42 PSL1 pipe can indeed be bent, offering flexibility in pipeline design and installation. Understanding its bending capacity, choosing the appropriate bending method, and considering the impacts on structural integrity are crucial for successful implementation. By following industry best practices and consulting with experienced professionals, you can ensure that bent X42 PSL1 pipe sections maintain their performance and reliability throughout their service life.
