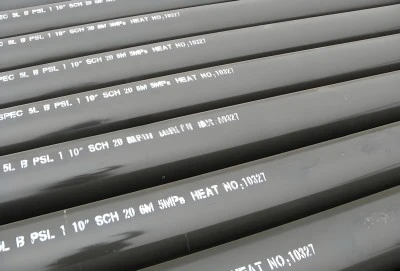

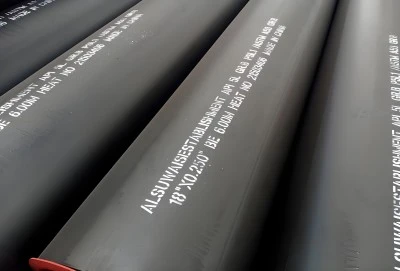

In the world of pipeline manufacturing and standards, API 5L specifications play a crucial role. These specifications, set by the American Petroleum Institute (API), define the requirements for line pipe used in transporting gas, water, and oil. Two important designations within these specifications are PSL1 and PSL2, which stand for Product Specification Level 1 and 2, respectively. Understanding the differences between API 5L PSL1 pipe and PSL2 pipe is essential for engineers, contractors, and anyone involved in pipeline projects. This article will delve into the key distinctions between these two specifications, focusing on chemical composition, mechanical properties, and inspection and testing requirements.
|
|
|
Chemical Composition: PSL1 VS PSL2 Pipe
The chemical composition of steel used in pipe manufacturing significantly influences its performance and durability. Let's examine the differences between PSL1 and PSL2 pipes in terms of their chemical makeup:
1.Carbon Content
Carbon is a crucial element in steel, affecting its strength and hardness. In API 5L PSL1 pipe, the maximum carbon content is typically higher compared to PSL2 pipes. PSL1 pipes allow for a maximum carbon content of 0.28%, while PSL2 pipes have a more stringent limit of 0.24%. This lower carbon content in PSL2 pipes contributes to improved weldability and toughness, which are critical factors in demanding pipeline applications.
2.Phosphorus and Sulfur Content
Phosphorus and sulfur are considered impurities in steel, and their content is carefully controlled. PSL2 pipes have more stringent requirements for these elements compared to PSL1 pipes. For PSL1, the maximum phosphorus content is 0.030%, and the maximum sulfur content is 0.030%. In contrast, PSL2 pipes have lower limits: 0.025% for phosphorus and 0.015% for sulfur. These tighter controls in PSL2 pipes result in improved toughness and reduced susceptibility to certain types of corrosion.
3.Carbon Equivalent
The carbon equivalent (CE) is a measure used to predict the weldability of steel. It takes into account the effects of various alloying elements. PSL2 pipes have more stringent requirements for CE compared to PSL1 pipes. While specific values can vary depending on the grade and thickness of the pipe, PSL2 pipes generally have lower maximum CE values. This lower CE in PSL2 pipes enhances weldability, which is particularly important in field welding operations during pipeline construction.
Mechanical Properties: Pipe PSL1 VS PSL2
The mechanical properties of pipes are crucial for ensuring their performance under various operating conditions. Let's explore the differences between PSL1 and PSL2 pipes in this regard:
1.Yield Strength and Tensile Strength
Both yield strength and tensile strength are important parameters that determine a pipe's ability to withstand pressure and external loads. While both PSL1 and PSL2 pipes must meet minimum strength requirements, PSL2 pipes often have more stringent and narrower ranges for these properties. For example, in the X52 grade, PSL1 pipes might have a yield strength range of 52,000 to 77,000 psi, while PSL2 pipes of the same grade might have a narrower range of 52,000 to 70,000 psi. This tighter control in PSL2 pipes ensures more consistent performance across the entire pipeline.
2.Fracture Toughness
Fracture toughness is a measure of a material's resistance to crack propagation. PSL2 pipes typically have higher fracture toughness requirements compared to PSL1 pipes. This increased toughness in PSL2 pipes provides better resistance to crack growth, which is particularly important in high-pressure applications or in areas prone to seismic activity. The enhanced fracture toughness of PSL2 pipes contributes to improved safety and longevity of pipeline systems.
3.Impact Test
Impact testing is crucial for assessing a pipe's ability to resist brittle fracture at low temperatures. PSL2 pipes have mandatory impact testing requirements, while for PSL1 pipes, these tests are often optional or only required upon customer request. The Charpy V-notch impact test is commonly used, and PSL2 pipes must meet specific energy absorption values at designated test temperatures. This additional requirement for PSL2 pipes ensures better performance in cold environments and contributes to the overall safety of the pipeline.
4.Inspection and Testing
The inspection and testing procedures for PSL1 and PSL2 pipes differ significantly, reflecting the more stringent quality control requirements for PSL2 pipes:
5.Nondestructive Testing
Nondestructive testing (NDT) is crucial for identifying defects in pipes without damaging them. For PSL1 pipes, NDT is often optional or limited in scope. In contrast, PSL2 pipes require mandatory NDT for the entire length of each pipe. This typically includes ultrasonic testing for seamless pipes and electromagnetic inspection for welded pipes. The more comprehensive NDT requirements for PSL2 pipes ensure a higher level of quality control and reduce the risk of defects in the final product.
6.Hydrostatic Test
Both PSL1 and PSL2 pipes undergo hydrostatic testing to verify their ability to withstand internal pressure. However, the test duration and documentation requirements differ. PSL2 pipes typically require longer test durations and more detailed documentation of the test results. This more rigorous testing for PSL2 pipes provides additional assurance of the pipe's integrity and its ability to perform under pressure.
7.Traceability
Traceability refers to the ability to track a pipe's manufacturing history and test results. For PSL1 pipes, traceability requirements are often minimal or non-existent. In contrast, PSL2 pipes have strict traceability requirements. Each PSL2 pipe must be uniquely identified, and its manufacturing and testing data must be fully documented and traceable. This enhanced traceability for PSL2 pipes allows for better quality control and easier identification of potential issues in the future.
Contact Longma
In conclusion, while both API 5L PSL1 pipe and PSL2 pipe are manufactured to high standards, PSL2 pipes have more stringent requirements across chemical composition, mechanical properties, and inspection and testing procedures. These additional requirements make PSL2 pipes suitable for more demanding applications, particularly in high-pressure or environmentally sensitive areas.
The choice between PSL1 and PSL2 pipes depends on the specific requirements of your project, including factors such as operating pressure, environmental conditions, and regulatory requirements. While PSL2 pipes offer enhanced performance and quality assurance, they also come with higher manufacturing costs.
