The development of enormous, high-strength pipes used in a variety of industries, particularly oil and gas transportation, has been altered by the muddled method for making double submerged arc welded (DSAW) pipes. This technique has acquired unrivaled prevalence since it can build strong, reliable lines that can endure outrageous strain and unfavorable normal circumstances. From the initial forming of steel plates to the final welding and quality control steps, the intricacies of the DSAW pipe production process will be discussed in this article.

blog-1-1

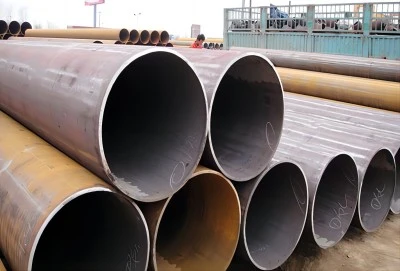

DSAW Steel Pipe

Double submerged arc welded (DSAW) pipe process:

The DSAW pipe creation process is portrayed by its extraordinary way to deal with welding, which includes concurrent welding on both within and beyond the line crease. The primary feature that distinguishes DSAW pipes from other types of welded pipes and significantly contributes to their superior strength and durability is this dual-sided welding method.

The cycle starts with great steel plates or loops, painstakingly chose in view of the particular necessities of the eventual outcome. These steels are typically high-strength, low-alloy steels that provide the ideal balance of toughness, strength, and weldability. The DSAW pipe's final performance is significantly influenced by the steel's chemical composition and mechanical properties.

When the fitting steel material is chosen, it goes through a progression of readiness steps. Precision cutting equipment is used to first cut the steel plates or coils to the necessary dimensions. This step is very important because it makes sure that the finished pipe will be the right length and diameter. After that, the cut edges are carefully examined and, if necessary, machined to guarantee that they are straight and free of flaws that could hinder the welding process.

The cylindrical shape of the flat steel plate is the next step. This is normally done utilizing huge water powered presses or moving machines. The basic cylinder shape of the pipe is created by gradually bending the plate into a U shape and then further forming it into an O shape. The final pipe's roundness and straightness are directly influenced by the precision of this forming process.

The seam is formed by joining the pipe's edges together after it has formed. The distinctive aspect of the DSAW procedure comes into play at this point. DSAW employs positioning welding heads on both the inside and outside of the pipe seam, in contrast to single-sided welding techniques. This double sided approach takes into consideration concurrent welding from the two sides, guaranteeing full entrance through the whole thickness of the line wall.

The synchronous inside and outside welding gives DSAW pipes their excellent strength and solidness. The process provides several significant advantages by welding from both sides:

1. Full infiltration: A continuous, solid joint is made possible by the dual welding heads, which ensure that the weld penetrates the entire thickness of the pipe wall.

2. Adjusted heat input: Welding from the two sides circulates the intensity all the more equally, diminishing the gamble of mutilation and limiting remaining anxieties in the welded region.

3. enhanced welding quality: The synchronous welding approach forestalls imperfections, for example, absence of combination or deficient entrance, which can happen in single-sided welding processes.

4. Improved mechanical properties: The reasonable intensity info and full infiltration add to worked on mechanical properties of the weld, including higher strength and better durability.

5. Expanded efficiency: When welding from both sides at the same time, speeds can be increased to match those of single-sided processes, resulting in increased production efficiency.

When it comes to making pipes with thick walls and large diameters, the DSAW method excels. It typically works with pipe diameters of 16 to more than 100 inches and wall thicknesses of up to several inches. Because of this, DSAW pipes are ideal for use in oil and gas industry high-pressure applications as well as challenging environments requiring exceptional strength and durability.

Uses Flux:

A key component of the double submerged arc welding process is the use of flux to protect the welding arc and enhance the overall quality of the weld. The term "submerged" in DSAW refers to the fact that the welding arc is completely submerged under a layer of granular flux throughout the welding process. This flux plays a crucial role in several aspects of the welding operation and contributes significantly to the superior quality of DSAW pipes.

The flux used in DSAW is typically a mixture of various mineral compounds, carefully formulated to provide specific properties that enhance the welding process. Common components of welding flux include silica, manganese oxide, calcium fluoride, and various other metal oxides. The exact composition of the flux is often tailored to suit the specific steel grade being welded and the desired properties of the final weld.

When the welding arc is struck, it is completely covered by this granular flux. As the arc burns, it melts a portion of the flux, creating a protective slag that covers the molten weld pool. This slag layer serves several critical functions:

1. Protection from atmospheric contamination: The molten slag forms a barrier that prevents oxygen and nitrogen from the atmosphere from coming into contact with the molten weld metal. This protection is crucial for preventing the formation of oxides and nitrides, which can weaken the weld.

2. Arc stabilization: The flux helps to stabilize the welding arc, allowing for smoother and more consistent welding. This stability contributes to better control over the welding process and improved weld quality.

3. Alloying additions: Some components of the flux can enter the weld pool, adding alloying elements to the weld metal. This can help improve the mechanical properties of the weld, such as increasing strength or enhancing corrosion resistance.

4. Slag formation: As the weld cools, the molten flux solidifies to form a slag cover over the weld bead. This slag helps to control the cooling rate of the weld, which can have a significant impact on the weld's microstructure and properties. The slag also protects the cooling weld from atmospheric contamination.

5. Improved weld appearance: The flux and resulting slag help to shape the weld bead, typically resulting in a smooth, uniform appearance. This can be particularly important for applications where weld appearance is a consideration.

6. Increased deposition rates: The flux allows for the use of higher welding currents compared to open-arc welding processes. These higher currents contribute to increased deposition rates, improving overall welding productivity.

The use of flux in the DSAW process also allows for deeper penetration of the weld. The insulating properties of the flux concentrate the heat of the arc, allowing it to penetrate deeper into the joint. This deep penetration is crucial for ensuring full fusion in thick-walled pipes.

Another advantage of the flux-protected welding process is the reduction of welding fumes and UV radiation. Since the arc is completely covered by the flux, there is minimal emission of harmful fumes or intense light, creating a safer working environment for welding operators.

Double Submerged Arc Welded Pipe supplier:

When it comes to sourcing high-quality Double Submerged Arc Welded (DSAW) pipes, choosing a reliable and experienced supplier is crucial. One such supplier is the Longma Group, which offers a comprehensive range of DSAW pipes designed to meet the demanding requirements of various industries, including oil and gas, construction, and water transportation.

The Longma Group supplies Double Submerged Arc Welded Pipes with a wide range of dimensions to suit various project needs. Their product line includes pipes with outer diameters ranging from 1/2 inch to 72 inches, catering to both small-diameter and large-diameter applications. This versatility allows customers to source pipes for various parts of their pipeline systems, from gathering lines to main transmission pipelines, from a single supplier.

For project managers, engineers, or procurement specialists looking to source DSAW pipes for their projects, the Longma Group offers expert assistance in selecting the right products. They can be contacted at info@longma-group.com for detailed information about their product range, specifications, and how their pipes might meet specific project requirements.
