In the world of energy transmission, high-frequency welded (HFW) pipes have emerged as a crucial component for transporting natural gas across vast distances. These pipes are designed to withstand the immense pressures associated with gas transmission, ensuring safe and efficient delivery of this vital energy resource. In this comprehensive guide, we'll explore how HFW pipes handle high-pressure demands, their safety features, and the key considerations in their manufacturing process.

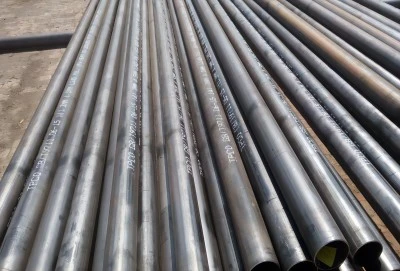

How Do HFW Pipes Handle the High Pressure Demands of Gas Transmission?
High-frequency welded pipes are engineered specifically to meet the rigorous demands of high-pressure gas transmission. Their ability to withstand extreme pressures is a result of several factors:
1. Advanced Welding Technology: The high-frequency welding process used in HFW pipe production creates a strong, consistent weld seam. This process involves heating the edges of the steel strip to forging temperature using high-frequency electric current, then pressing them together to form a solid-state bond. The result is a weld that is as strong as, or sometimes stronger than, the base metal itself.
2. Material Selection: HFW pipes for high-pressure applications are typically made from high-strength, low-alloy (HSLA) steels. These materials offer an optimal balance of strength, toughness, and weldability, allowing the pipes to withstand high internal pressures without compromising structural integrity.
3. Wall Thickness Design: The wall thickness of HFW pipes is carefully calculated based on the expected operating pressures. Engineers use formulas that consider factors such as the pipe's diameter, the yield strength of the steel, and safety factors to determine the optimal wall thickness for each application.
4. Quality Control Measures: Rigorous testing and inspection procedures are implemented throughout the manufacturing process. This includes non-destructive testing methods such as ultrasonic inspection and hydrostatic pressure testing to ensure the pipes meet or exceed industry standards for pressure resistance.
By incorporating these elements, HFW pipes can effectively handle the high-pressure demands of gas transmission systems, typically operating at pressures ranging from 600 to 1500 psi (4.1 to 10.3 MPa) or even higher in some cases.

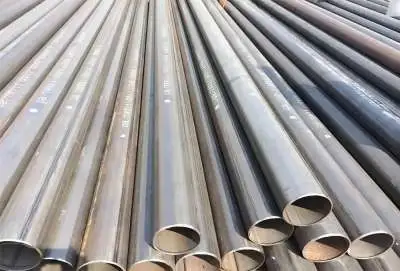

What Are the Safety and Reliability Features of HFW Pipes for High-Pressure Applications?
Safety and reliability are paramount in high-pressure gas transmission systems. HFW pipes incorporate several features to ensure the utmost safety and dependability:
1. Uniform Weld Strength: The high-frequency welding process produces a consistent weld seam along the entire length of the pipe. This uniformity minimizes weak points that could potentially fail under high pressure, enhancing overall pipe reliability.
2. Corrosion Resistance: HFW pipes used in gas transmission are often coated with specialized materials to protect against corrosion. Common coating types include fusion-bonded epoxy (FBE) and three-layer polyethylene (3LPE) systems. These coatings significantly extend the service life of the pipes and reduce the risk of corrosion-related failures.
3. Fracture Toughness: The steel used in high-pressure HFW pipes is selected for its excellent fracture toughness properties. This characteristic helps prevent crack propagation and ensures that the pipe can withstand sudden pressure changes or impacts without catastrophic failure.
4. Automated Monitoring Systems: While not a feature of the pipe itself, modern gas transmission systems often incorporate advanced monitoring technologies. These systems can detect pressure anomalies, leaks, or other issues in real-time, allowing for swift response to potential safety concerns.
5. Strict Compliance with Standards: HFW pipes for high-pressure applications are manufactured in compliance with stringent industry standards such as API 5L and ISO 3183. These standards set rigorous requirements for material properties, manufacturing processes, and testing procedures to ensure the highest levels of safety and reliability.
By integrating these safety and reliability features, HFW pipes provide a robust solution for high-pressure gas transmission, minimizing the risk of failures and ensuring the safe, efficient delivery of natural gas.
What Are the Key Material and Welding Considerations for High-Pressure HFW Pipes?
The performance of high-pressure HFW pipes is heavily influenced by material selection and welding processes. Here are the key considerations in these areas:
Material Considerations
1. Steel Grade Selection: The choice of steel grade is critical for high-pressure applications. Commonly used grades include API 5L X52, X60, X70, and even X80 for extremely high-pressure systems. These grades offer progressively higher yield strengths, allowing for thinner pipe walls or higher operating pressures.
2. Chemical Composition: The steel's chemical composition is carefully controlled to achieve the desired mechanical properties. Elements like carbon, manganese, and microalloying elements (such as niobium, vanadium, and titanium) are balanced to optimize strength, toughness, and weldability.
3. Microstructure: The microstructure of the steel plays a crucial role in its performance. For high-pressure HFW pipes, a fine-grained, uniform microstructure is desirable as it contributes to improved strength and toughness.
Welding Considerations:
1. Welding Frequency: The frequency of the electric current used in the welding process typically ranges from 100 to 800 kHz. Higher frequencies generally result in a narrower heat-affected zone (HAZ) and can improve weld quality.
2. Welding Speed: The welding speed must be carefully controlled to ensure proper heating and forging of the steel edges. Too slow a speed can lead to excessive heat input and grain growth, while too fast a speed may result in incomplete welding.
3. Post-Weld Heat Treatment: In some cases, post-weld heat treatment (PWHT) may be necessary to relieve residual stresses and improve the mechanical properties of the weld area.
4. Weld Seam Inspection: Advanced inspection techniques, such as ultrasonic testing and eddy current testing, are employed to ensure the integrity of the weld seam throughout the entire length of the pipe.
5. Weld Seam Annealing: Some high-pressure HFW pipe production processes include inline annealing of the weld seam. This step helps to homogenize the microstructure of the weld area, improving its mechanical properties and corrosion resistance.
By carefully considering these material and welding factors, manufacturers can produce high-frequency welded pipes that meet the demanding requirements of high-pressure gas transmission systems. The result is a product that combines strength, reliability, and cost-effectiveness, making HFW pipes an excellent choice for modern energy infrastructure projects.
Conclusion
High-frequency welded pipes have proven to be a reliable and efficient solution for high-pressure gas transmission systems. Their ability to withstand extreme pressures, coupled with advanced safety features and carefully considered material and welding processes, makes them an ideal choice for modern energy infrastructure projects.
As the demand for natural gas continues to grow globally, the importance of safe and efficient transmission systems cannot be overstated. HFW pipes play a crucial role in meeting this demand, offering a balance of performance, safety, and cost-effectiveness.
If you're involved in a gas transmission project and are considering high-frequency welded pipes for your high-pressure applications, we encourage you to explore the solutions offered by Longma Group. With our extensive experience in manufacturing high-quality HFW pipes, we can provide you with products that meet the most stringent industry standards and your specific project requirements.
To learn more about our high-frequency welded pipe offerings or to discuss your project needs, please don't hesitate to reach out to us at info@longma-group.com. Our team of experts is ready to assist you in selecting the right pipes for your high-pressure gas transmission needs, ensuring the safety, reliability, and efficiency of your energy infrastructure project.
References
[1] Kah, P., Mvola, B., Martikainen, J., & Suoranta, R. (2014). Real-time control of welding processes. International Journal of Mechanical Engineering and Robotics Research, 3(3), 330-337.
[2] Hillenbrand, H. G., Gräf, M., & Kalwa, C. (2001). Development and production of high strength pipeline steels. Niobium Science & Technology, 543-569.
[3] American Society of Mechanical Engineers. (2019). ASME B31.8: Gas Transmission and Distribution Piping Systems.
[4] American Petroleum Institute. (2018). API Specification 5L: Specification for Line Pipe.
[5] U.S. Department of Transportation. (2021). Pipeline and Hazardous Materials Safety Administration: Natural Gas Transmission Pipelines.
