In the ever-evolving world of pipeline technology, API 5L X80 welded pipe stands out as a game-changer. This high-strength steel pipe has become increasingly popular in the oil and gas industry, offering a combination of durability, efficiency, and cost-effectiveness. Let's delve into the characteristics, applications, and corrosion resistance of API 5L X80 welded pipe, exploring why it's becoming the go-to choice for high-pressure pipeline systems.
|
|
|
What are the high-strength characteristics of API 5L X80 welded pipe?
API 5L X80 welded pipe is renowned for its exceptional strength properties, which set it apart from conventional pipeline materials. The "X80" designation indicates that this pipe grade has a minimum yield strength of 80,000 psi (552 MPa), significantly higher than many other grades in the API 5L specification.
One of the key features of API 5L X80 pipe is its advanced microstructure. Through careful control of the chemical composition and thermo-mechanical controlled processing (TMCP), manufacturers can achieve a fine-grained structure that contributes to the pipe's high strength and excellent toughness. This microstructure typically consists of a mixture of ferrite and bainite, with small amounts of martensite, resulting in an optimal balance of strength and ductility.
The high yield strength of API 5L X80 welded pipe allows for several advantages in pipeline design and operation:
- Reduced wall thickness: For a given operating pressure, X80 pipes can be manufactured with thinner walls compared to lower-grade pipes. This reduction in wall thickness translates to significant material savings and lower transportation costs.
- Increased operating pressures: Alternatively, the high strength allows pipelines to operate at higher pressures, increasing throughput capacity without necessitating larger diameter pipes.
- Improved toughness: Despite its high strength, X80 pipe maintains excellent toughness, particularly at low temperatures. This characteristic is crucial for pipelines operating in harsh environments or subject to seismic activity.
- Enhanced fatigue resistance: The high strength-to-weight ratio of X80 pipe contributes to superior fatigue resistance, which is vital for long-term pipeline integrity, especially in offshore applications.
It's worth noting that achieving these high-strength characteristics in welded pipe requires precise control during the welding process. Advanced welding techniques, such as submerged arc welding (SAW) for longitudinal seam welded (LSAW) pipes, are employed to ensure that the weld zone maintains strength and toughness comparable to the base metal.
How is API 5L X80 welded pipe applied to high-pressure pipeline systems?
The exceptional properties of API 5L X80 welded pipe make it an ideal choice for high-pressure pipeline systems, particularly in challenging environments. Its applications span various sectors of the oil and gas industry, from onshore transmission lines to offshore installations.
In onshore applications, API 5L X80 pipe is increasingly used for long-distance, high-pressure natural gas transmission lines. The ability to operate at higher pressures allows for increased gas throughput, reducing the number of compressor stations required along the pipeline route. This not only improves operational efficiency but also leads to significant cost savings over the lifecycle of the pipeline.
For instance, the West-East Gas Pipeline project in China, one of the world's longest natural gas pipelines, utilized X80 grade pipe for substantial portions of its route. This choice allowed for higher operating pressures and reduced material costs compared to lower-grade alternatives.
In offshore environments, API 5L X80 pipe finds application in deepwater pipeline systems. The high strength-to-weight ratio is particularly advantageous in these settings, where the weight of the pipeline itself becomes a significant design factor. X80 pipes can be manufactured with reduced wall thickness while still withstanding the high external pressures encountered in deepwater installations.
Moreover, the superior low-temperature toughness of X80 pipe makes it suitable for Arctic and sub-Arctic pipeline projects. In these harsh environments, where temperatures can drop dramatically, the ability of the pipe to maintain its mechanical properties is crucial for ensuring long-term integrity and safety.
The application of API 5L X80 welded pipe in high-pressure systems also extends to:
- Sour service environments: With proper material selection and heat treatment, X80 pipes can be made resistant to sulfide stress cracking, allowing their use in pipelines transporting sour crude oil or gas.
- High-pressure water injection systems: In enhanced oil recovery operations, X80 pipes can handle the high pressures required for water injection into reservoirs.
- CO2 transportation: As carbon capture and storage technologies gain traction, X80 pipes are being considered for high-pressure CO2 transportation pipelines.
The versatility of API 5L X80 welded pipe in these diverse applications underscores its importance in modern pipeline infrastructure development.
What is the corrosion resistance of API 5L X80 welded pipe?
While API 5L X80 welded pipe is primarily known for its high strength, its corrosion resistance properties are equally crucial for long-term pipeline integrity. The corrosion resistance of X80 pipe is a result of both its chemical composition and the manufacturing process.
The base metal of API 5L X80 pipe typically contains alloying elements such as chromium, nickel, and molybdenum, which contribute to improved corrosion resistance. Additionally, the fine-grained microstructure achieved through TMCP helps in reducing the susceptibility to localized corrosion.
However, it's important to note that the corrosion resistance of X80 pipe can vary depending on the specific environmental conditions it's exposed to. In general, X80 pipe exhibits good resistance to:
- General corrosion: The uniform loss of metal across the surface due to electrochemical reactions with the environment.
- Pitting corrosion: Localized attack that results in small holes or pits in the metal surface.
- Stress corrosion cracking (SCC): Under certain conditions, X80 pipes can be made resistant to SCC through careful control of microstructure and residual stresses.
For applications in more aggressive environments, such as sour service conditions where hydrogen sulfide is present, additional measures are taken to enhance the corrosion resistance of X80 pipe. These may include:
- Specialized heat treatments to improve resistance to sulfide stress cracking (SSC).
- Application of corrosion-resistant alloy (CRA) cladding or lining.
- Use of advanced coating systems to provide a barrier against corrosive elements.
It's worth noting that the welded seam in API 5L X80 pipe requires particular attention regarding corrosion resistance. The heat-affected zone (HAZ) adjacent to the weld can have slightly different properties compared to the base metal. Proper welding procedures and post-weld heat treatment are essential to ensure that the welded area maintains corrosion resistance comparable to the rest of the pipe.
To further enhance corrosion protection, pipeline operators often implement cathodic protection systems in conjunction with high-performance coatings. These measures, combined with the inherent properties of X80 pipe, contribute to extending the operational life of pipelines and reducing the risk of corrosion-related failures.
Ongoing research in the field of materials science continues to improve the corrosion resistance of high-strength steels like X80. Innovations in alloying techniques, surface treatments, and coating technologies are pushing the boundaries of what's possible in terms of long-term corrosion protection for high-pressure pipeline systems.

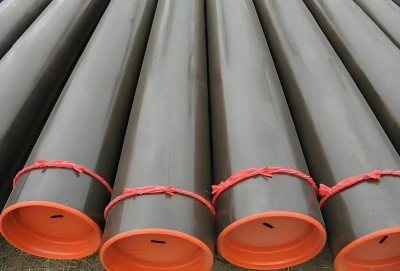

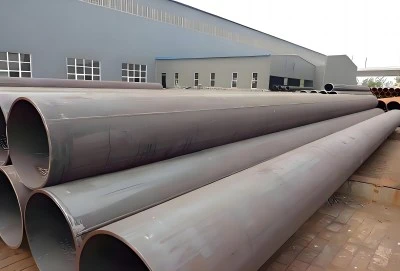

High-Quality API 5L X80 Pipes
API 5L X80 welded pipe represents a significant advancement in pipeline technology, offering a combination of high strength, excellent toughness, and good corrosion resistance. Its ability to withstand high pressures while allowing for reduced wall thickness makes it an economically attractive option for modern pipeline projects, both onshore and offshore.
As the demand for efficient and reliable energy transportation continues to grow, the role of API 5L X80 welded pipe in high-pressure pipeline systems is likely to expand further. Its versatility in handling various products, from natural gas to CO2, positions it as a key enabler in the transition towards more sustainable energy infrastructures.
For pipeline operators and project managers looking to leverage the benefits of API 5L X80 welded pipe, it's crucial to partner with experienced manufacturers who can ensure consistent quality and performance. At LONGMA GROUP, we specialize in producing high-quality API 5L X80 pipes that meet the most stringent industry standards.
Are you planning a high-pressure pipeline project and considering API 5L X80 welded pipe? We invite you to explore how our expertise can contribute to the success of your project. Contact us at info@longma-group.com to discuss your specific requirements and learn more about our API 5L X80 pipe offerings. Let's work together to build the next generation of safe, efficient, and durable pipeline systems.
