Hot Rolled Steel Pipe with Beveled Ends for Easy Welding

In the world of industrial construction and manufacturing, efficiency and quality are paramount. When it comes to steel pipes, one innovation that has significantly improved both aspects is the incorporation of beveled ends. Hot rolled steel pipes with beveled ends have become increasingly popular due to their ability to facilitate easier and more effective welding.

What are Beveled Ends?

Beveled ends refer to the angled or sloped edges at the ends of steel pipes. These specially prepared edges are created by cutting away material from the pipe's end at a specific angle, typically ranging from 30 to 45 degrees. The purpose of this modification is to create a V-shaped groove when two pipes are aligned end-to-end, which is crucial for the welding process.

The beveling process can be performed using various methods, including mechanical cutting, flame cutting, or machining. Each method has its advantages, depending on the pipe material, thickness, and the desired level of precision. For hot rolled steel pipes, which are known for their strength and versatility, beveled ends are particularly beneficial in enhancing their usability in various industrial applications.

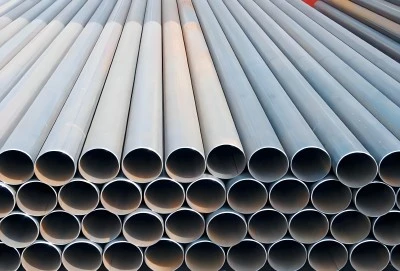

Hot rolled steel pipes are produced by heating steel billets to high temperatures and then passing them through a series of rollers to achieve the desired shape and dimensions. This process results in pipes with excellent strength and formability, making them ideal for structural and mechanical applications. When these pipes are equipped with beveled ends, their utility is further enhanced, especially in scenarios requiring on-site welding and assembly.

How do Beveled Ends Improve Weld Quality and Joint Strength?

The incorporation of beveled ends in hot rolled steel pipes offers several significant advantages when it comes to welding quality and joint strength:

1. Enhanced Weld Penetration: The V-shaped groove created by aligning two beveled ends allows for deeper weld penetration. This increased depth ensures that the weld material can fully fill the joint, creating a stronger and more durable connection between the pipes.
2. Reduced Weld Defects: Beveled ends help minimize the risk of weld defects such as lack of fusion or incomplete penetration. The angled surfaces guide the welding material into the joint more effectively, reducing the chances of gaps or weak spots in the weld.
3. Improved Weld Consistency: The uniform angle of beveled ends helps welders maintain a consistent welding technique throughout the pipe's circumference. This consistency leads to more uniform welds, which are crucial for maintaining the structural integrity of the piping system.
4. Stress Distribution: Beveled ends create a larger surface area for the weld, which helps in better distribution of stresses across the joint. This even distribution of forces enhances the overall strength and durability of the welded connection.
5. Easier Alignment: The beveled edges serve as a guide for aligning pipes during the welding process. This feature is particularly beneficial in field welding situations where precise alignment can be challenging.
6. Accommodation of Welding Processes: Beveled ends are compatible with various welding techniques, including stick welding, MIG welding, and TIG welding. This versatility makes hot rolled steel pipes with beveled ends suitable for a wide range of industrial applications.

These improvements in weld quality and joint strength are crucial in industries where the integrity of piping systems is paramount, such as oil and gas, chemical processing, and construction. By using hot rolled steel pipes with beveled ends, manufacturers and contractors can ensure higher quality installations with reduced risk of failure and increased longevity of the piping systems.

Typical Beveling Standards for Hot Rolled Steel Pipes in Industrial Use

To ensure consistency and compatibility across different manufacturers and applications, several standards have been established for beveling hot rolled steel pipes. These standards specify the angle, depth, and shape of the bevel, as well as tolerances for these measurements. Some of the most commonly used standards include:

1. API 5L: This standard, set by the American Petroleum Institute, is widely used in the oil and gas industry. It specifies a bevel angle of 30 degrees (±5°) for pipes with wall thicknesses greater than 3/16 inch (4.8 mm).
2. ASME B16.25: The American Society of Mechanical Engineers provides this standard, which covers buttwelding ends for pipes, valves, fittings, and flanges. It offers detailed specifications for various pipe sizes and wall thicknesses.
3. ISO 6761: This international standard provides specifications for the preparation of ends of steel tubes and fittings for welding. It covers a range of bevel angles and configurations suitable for different welding processes.
4. DIN 2559: This German standard specifies requirements for pipe end preparation for welding, including beveling specifications for various pipe sizes and materials.

These standards typically consider factors such as:

• Bevel Angle: Commonly ranging from 30 to 45 degrees, with 37.5 degrees being a popular choice for many applications.
• Root Face: The flat surface at the end of the pipe that remains after beveling. The width of this face is usually specified based on the pipe's wall thickness.
• Land Thickness: The thickness of the pipe at the root face, which is critical for achieving proper weld penetration.
• Bevel Length: The distance from the root face to the outer edge of the pipe, which varies based on the bevel angle and pipe wall thickness.

It's important to note that while these standards provide general guidelines, specific industries or projects may have additional requirements or modifications based on their unique needs. For instance, the nuclear power industry often has more stringent standards for pipe end preparation due to the critical nature of their applications.

When selecting hot-rolled steel pipes with beveled ends, it's crucial to specify the appropriate beveling standard based on the intended application. This ensures compatibility with welding procedures and equipment, and ultimately contributes to the overall quality and reliability of the piping system.
