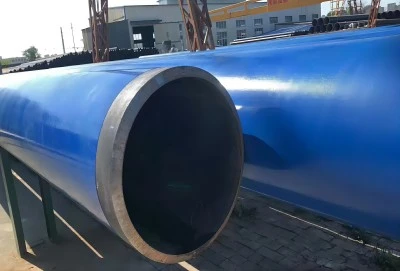

Testing polyethylene coating adhesion on steel pipes is crucial for ensuring the durability and effectiveness of these essential components in various industries. polyethylene coated steel pipes are widely used in oil and gas transportation, water supply systems, and offshore platforms due to their excellent corrosion resistance and longevity. To guarantee optimal performance, engineers and quality control specialists employ several methods to assess the bond strength between the coating and the steel substrate. These tests help identify potential weaknesses in the coating application process and prevent premature failure in the field.
Standard adhesion testing methods for PE coatings
When it comes to evaluating the adhesion of polyethylene coatings on steel pipes, industry professionals rely on several standardized testing methods. These procedures provide valuable insights into the coating's ability to withstand various environmental stresses and maintain its protective properties. Let's explore three primary testing techniques used to assess PE coating adhesion:
Pull-off adhesion test: Measuring coating bond strength
The pull-off adhesion test is a widely accepted method for quantifying the bond strength between the polyethylene coating and the steel pipe surface. This test involves attaching a loading fixture, typically a dolly, to the coated surface using a strong adhesive. Once the adhesive cures, a controlled force is applied to the fixture using a hydraulic or pneumatic device until the coating separates from the substrate or the dolly detaches.
Engineers measure the force required to cause separation, expressed in units of pressure (e.g., MPa or psi). Higher values indicate stronger adhesion, while lower values may suggest potential issues with the coating application or surface preparation. This test provides a direct numerical value for comparing different coating systems or evaluating the effectiveness of surface treatments.
Cross-cut test: Evaluating coating resistance to separation
The cross-cut test, also known as the tape adhesion test, assesses the coating's resistance to separation when subjected to mechanical stress. In this procedure, a series of parallel cuts are made through the coating to the substrate, followed by another set of cuts perpendicular to the first, creating a grid pattern. An adhesive tape is then applied to the grid and quickly removed.
Technicians evaluate the amount of coating removed by the tape, comparing it to standardized rating scales. This test is particularly useful for identifying weak spots in the coating or areas where adhesion may be compromised. While less quantitative than the pull-off test, the cross-cut method provides valuable visual feedback on coating performance.
Cathodic disbondment: Assessing coating durability
Cathodic disbondment testing simulates real-world conditions that polyethylene coated steel pipes may encounter in underground or underwater environments. This test evaluates the coating's ability to resist degradation when exposed to cathodic protection systems commonly used to prevent corrosion in steel structures.
In this test, a small defect is intentionally created in the coating, and the sample is immersed in an electrolyte solution. A cathodic current is applied to the pipe, and the test runs for a specified period, typically 28 days. After the test, technicians measure the area of coating detachment around the initial defect. Coatings with minimal disbondment demonstrate superior resistance to cathodic protection-induced degradation, indicating better long-term performance in the field.
Interpreting adhesion test results: What's acceptable?
Understanding and interpreting the results of adhesion tests for polyethylene coatings on steel pipes is crucial for ensuring the quality and longevity of pipeline systems. The outcomes of these tests provide valuable insights into the coating's performance and help determine whether it meets industry standards. Let's delve into the key aspects of interpreting adhesion test results:
Industry standards for PE coating adhesion on steel pipes
Various industry standards govern the acceptable levels of adhesion for polyethylene coatings on steel pipes. These standards are established by organizations such as NACE International, ASTM International, and ISO. For instance, NACE SP0394 and ISO 21809-1 provide specific guidelines for external fusion-bonded epoxy coatings, which are often used as a primer layer for polyethylene coatings.
Typically, the minimum acceptable adhesion strength for polyethylene coatings on steel pipes ranges from 4 to 7 MPa (580 to 1015 psi), depending on the specific standard and application. However, it's important to note that these values may vary based on the coating thickness, pipe diameter, and intended use of the pipeline.
Factors affecting adhesion test outcomes in pipe coatings
Several factors can influence the results of adhesion tests on polyethylene coated steel pipes. Understanding these variables is essential for accurately interpreting test outcomes and identifying potential areas for improvement in the coating process. Some key factors include:
- Surface preparation: The cleanliness and roughness of the steel surface significantly impact coating adhesion. Improper surface preparation can lead to weak bonds and poor test results.
- Coating application temperature: Applying the polyethylene coating at the wrong temperature can affect its ability to bond with the steel substrate, resulting in suboptimal adhesion.
- Coating thickness: Excessively thick or thin coatings may not adhere properly to the steel surface, leading to inconsistent test results.
- Environmental conditions: Humidity, temperature, and contaminants during the coating process can all influence the final adhesion strength.
- Curing time: Insufficient curing time may result in incomplete bonding between the coating and the steel, affecting adhesion test outcomes.
Comparing test results: PE vs FBE coatings on steel pipes
When interpreting adhesion test results, it's often helpful to compare the performance of polyethylene (PE) coatings with other common coating systems, such as fusion-bonded epoxy (FBE). While both coating types offer excellent corrosion protection, they have distinct characteristics that influence their adhesion properties:
- Bonding mechanism: FBE coatings form a chemical bond with the steel substrate, while PE coatings primarily rely on mechanical adhesion. This difference can result in variations in adhesion test outcomes.
- Temperature resistance: FBE coatings generally exhibit better high-temperature performance, which can lead to stronger adhesion at elevated temperatures compared to PE coatings.
- Flexibility: PE coatings offer superior flexibility, which can be advantageous in certain applications but may result in slightly lower adhesion strength compared to FBE coatings.
- Thickness: PE coatings are typically applied in thicker layers than FBE coatings, which can influence the results of certain adhesion tests.
When comparing test results between PE and FBE coatings, it's essential to consider the specific requirements of the application and the intended operating conditions of the pipeline. While FBE coatings may show higher adhesion strength in some cases, PE coatings offer advantages in terms of flexibility, impact resistance, and overall corrosion protection that make them ideal for many pipeline applications.
Troubleshooting poor adhesion: Common causes and solutions
When polyethylene coated steel pipes exhibit poor adhesion test results, identifying the root causes and implementing effective solutions is crucial for maintaining the integrity of pipeline systems. Let's explore some common issues that can lead to suboptimal coating adhesion and discuss strategies to address them:
Surface preparation issues: Ensuring proper pipe cleaning
Inadequate surface preparation is one of the most frequent causes of poor coating adhesion. To achieve optimal bonding between the polyethylene coating and the steel substrate, the pipe surface must be clean, dry, and free from contaminants. Common surface preparation issues include:
- Residual mill scale or rust: These can prevent direct contact between the coating and the steel surface, compromising adhesion.
- Oil or grease contamination: Even small amounts of oil can create a barrier that inhibits proper coating adhesion.
- Dust or debris: Fine particles on the surface can interfere with the coating's ability to bond with the steel.
To address these issues, implement the following solutions:
- Thorough abrasive blasting: Use appropriate abrasive materials to remove all traces of mill scale, rust, and other contaminants.
- Solvent cleaning: Apply suitable solvents to remove oil, grease, and other organic contaminants before coating application.
- Compressed air cleaning: Use clean, dry compressed air to remove dust and debris immediately before coating application.
- Regular quality control checks: Implement a rigorous inspection process to ensure surface cleanliness meets required standards before proceeding with coating application.
Coating application errors: Optimizing temperature and thickness
Errors during the coating application process can significantly impact adhesion performance. Two critical factors to consider are temperature control and coating thickness:
Temperature-related issues:
- Insufficient preheating: Applying the coating to a cold pipe surface can result in poor bonding.
- Overheating: Excessive temperatures can degrade the coating material, reducing its adhesive properties.
Thickness-related problems:
- Insufficient coating thickness: Too thin a layer may not provide adequate coverage or bonding strength.
- Excessive thickness: Overly thick coatings can lead to internal stresses and reduced adhesion.
To optimize coating application and improve adhesion:
- Implement precise temperature control: Use infrared thermometers or other monitoring devices to ensure the pipe surface and coating material are at the correct temperature during application.
- Calibrate application equipment: Regularly check and adjust coating spray equipment to maintain consistent thickness across the pipe surface.
- Train operators: Provide comprehensive training to coating applicators, emphasizing the importance of proper technique and parameter control.
- Conduct regular thickness measurements: Use non-destructive testing methods to verify coating thickness meets specifications throughout the application process.
Environmental factors: Mitigating moisture and contamination
Environmental conditions during coating application and curing can significantly impact adhesion quality. Key environmental factors to consider include:
- Humidity: High humidity levels can lead to moisture entrapment between the coating and the steel surface.
- Ambient temperature: Extreme temperatures can affect coating viscosity and curing rates.
- Airborne contaminants: Dust, salt, or industrial pollutants can interfere with the coating process.
To mitigate these environmental challenges:
- Control application environment: When possible, perform coating application in a controlled indoor setting to minimize exposure to adverse weather conditions.
- Monitor and adjust humidity levels: Use dehumidifiers or heating systems to maintain optimal humidity levels during coating application and curing.
- Implement proper ventilation: Ensure adequate air circulation to control temperature and remove potential airborne contaminants.
- Schedule coating operations strategically: Plan coating activities during periods of favorable weather conditions when working in outdoor environments.
- Use protective enclosures: When working in challenging environments, consider using temporary shelters or enclosures to shield the coating process from adverse conditions.
By addressing these common causes of poor adhesion and implementing targeted solutions, pipeline engineers and coating specialists can significantly improve the performance and longevity of polyethylene coatings on steel pipes. Regular testing, continuous monitoring, and a commitment to quality control are essential for maintaining high standards of coating adhesion in pipeline projects.
Testing polyethylene coating adhesion on steel pipes is a critical process that ensures the long-term performance and reliability of pipeline systems. By employing standardized testing methods such as pull-off adhesion tests, cross-cut tests, and cathodic disbondment assessments, industry professionals can accurately evaluate coating quality and identify potential issues. Proper interpretation of test results, adherence to industry standards, and consideration of factors affecting adhesion are essential for making informed decisions about coating acceptance. When troubleshooting poor adhesion, focusing on surface preparation, optimizing coating application parameters, and mitigating environmental factors can lead to significant improvements in coating performance. As the demand for durable and corrosion-resistant pipeline solutions continues to grow, maintaining high standards in polyethylene coating adhesion will remain crucial for the success of infrastructure projects worldwide.

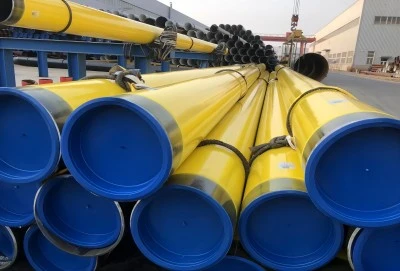

Where to Buy Polyethylene Coated Steel Pipes?
For high-quality polyethylene coated steel pipes, look no further than Hebei Longma Group. Our state-of-the-art production facilities, equipped with German-imported machinery and four independently developed production lines, ensure superior product quality. With a professional team of over 300 employees, including 60+ technical experts and an independent research team, we're at the forefront of innovation in steel pipe manufacturing. Our comprehensive testing facilities, featuring online ultrasonic flaw detectors and industrial X-ray equipment, guarantee the integrity of every pipe we produce. We pride ourselves on fast delivery. Backed by complete certifications including API 5L, ISO 9001, and ISO 14001, our products meet the highest industry standards. Thanks to our integrated production model and strategic partnerships with raw material suppliers, we offer competitive pricing without compromising on quality. For all your polyethylene coated pipe needs, contact us at info@longma-group.com.
References
- ASTM D4541: Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers
- NACE SP0394: Application, Performance, and Quality Control of Plant-Applied, Fusion-Bonded Epoxy External Pipe Coating
- ISO 21809-1: Petroleum and natural gas industries — External coatings for buried or submerged pipelines used in pipeline transportation systems — Part 1: Polyolefin coatings (3-layer PE and 3-layer PP)
- Journal of Protective Coatings & Linings: "Adhesion Testing of Pipeline Coatings: A Comprehensive Review"
- Pipeline Coatings: Materials, Design, and Application by Y. Frank Cheng
