In the ever-evolving field of pipeline engineering and oil & gas transportation, the selection of appropriate pipe materials for high-pressure applications is crucial. API 5L X80 pipe has emerged as a significant player in this domain, offering a compelling combination of strength, durability, and reliability. This comprehensive analysis explores the suitability of API 5L X80 pipe for high-pressure environments, examining its characteristics, performance, and manufacturing processes.
|
|
|
What is the pressure rating of the API 5L X80 pipe?
API 5L X80 pipe is engineered to withstand substantial pressure loads, with its pressure rating determined by several key factors. The X80 designation indicates a specified minimum yield strength (SMYS) of 80,000 psi (552 MPa), making it one of the higher-strength grades available in the API 5L specification. The actual pressure rating of an X80 pipe depends on various factors, including wall thickness, diameter, and design factor.
For typical oil and gas pipeline applications, API 5L X80 pipes can handle operating pressures ranging from 1,440 psi to 2,500 psi (99.3 to 172.4 bar), depending on the specific design parameters. The maximum allowable operating pressure (MAOP) is calculated using the modified Barlow's formula, which takes into account the pipe's diameter, wall thickness, and design factor. X80 pipes are commonly used in high-pressure natural gas transmission lines where operating pressures can exceed 2,000 psi.
How does API 5L X80 pipe perform in high-pressure environments over the long term?
The long-term performance of API 5L X80 pipe in high-pressure environments has been extensively studied and documented. These pipes demonstrate exceptional fatigue resistance and durability under sustained high-pressure conditions. The advanced metallurgical properties of X80 steel, achieved through careful control of alloying elements and microstructure, contribute to its superior performance.
Research has shown that X80 pipes maintain their structural integrity even after years of exposure to cyclic pressure loads. The material's high strength-to-weight ratio and excellent toughness properties help prevent crack initiation and propagation under high-pressure conditions. Field studies have documented cases where X80 pipelines have operated successfully for over 20 years in high-pressure transmission systems without significant degradation. X80 pipes exhibit remarkable resistance to pressure-induced stress corrosion cracking (SCC), a common concern in high-pressure pipeline applications. This resistance is attributed to the optimized microstructure and chemical composition of the steel, which includes carefully controlled amounts of elements like niobium, vanadium, and titanium.
How does the manufacturing process of API 5L X80 pipe ensure its suitability for high-pressure applications?
The manufacturing process of API 5L X80 pipe involves several sophisticated steps designed to enhance its pressure-bearing capabilities. The process begins with the careful selection of raw materials and continues through controlled forming and heat treatment procedures. Thermomechanical controlled processing (TMCP) is a crucial manufacturing technique that optimizes the microstructure and mechanical properties of the steel.
During TMCP, precise control of rolling temperatures and cooling rates helps achieve the desired combination of strength and toughness. The process typically involves controlled rolling at temperatures below the recrystallization temperature, followed by accelerated cooling. This results in a fine-grained microstructure with improved strength and toughness properties. Quality control measures during manufacturing include ultrasonic testing, radiographic examination, and hydrostatic testing. Each pipe undergoes rigorous inspection to ensure compliance with dimensional tolerances and detect any potential defects that could compromise performance under high pressure. The manufacturing process also includes specific heat treatment procedures to relieve residual stresses and optimize mechanical properties.
What is the international standard for high-pressure environments?
Comprehensive guidelines for the design, production, and testing of X80 steel pipes meant for high-pressure service are provided by the API 5L specification and other international standards. The well-known API 5L standard for pipeline steel specifies essential specifications to guarantee the performance and mechanical integrity of X80 pipes in demanding applications, like the transportation of gas and oil at high pressures. The definition of particular mechanical properties is one of the main features of the API 5L specification for the API 5L X80 Pipe. These include specifications for elongation, tensile strength, and yield strength, which guarantee that the material can tolerate the strains found in high-pressure settings.
In order to guarantee the performance and dependability of X80 steel pipes in high-pressure applications, the API 5L specification specifies essential requirements. The standard defines tensile strength, elongation values, and minimum yield strength as important mechanical properties. While the tensile strength of X80 pipes must adhere to certain standards to guarantee the pipe can sustain the pressures experienced during operation, the minimum yield strength is normally set at 550 MPa. In order to prevent brittle fracture under stress, the elongation requirement guarantees that the material has adequate ductility.
In order to define the quality and performance requirements for X80 steel pipes—which are frequently utilized in high-pressure offshore and onshore applications—international standards such as ISO 3183 and DNV-OS-F101 are essential. These requirements are crucial for guaranteeing the longevity, safety, and dependability of pipelines that function in harsh environments, like deepwater offshore settings or high-pressure gas transportation. The mechanical and material characteristics of steel pipes, including those composed of X80 grade steel, are described in ISO 3183, which is primarily concerned with the specification of pipeline transportation systems.

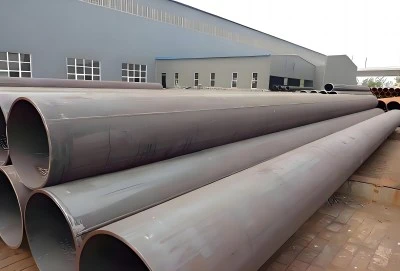

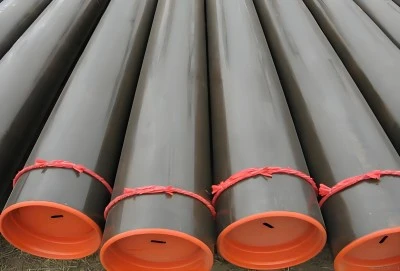

API 5L X80 Pipe For Sale
LONGMA GROUP offers high-quality API 5L X80 pipes manufactured to PSL1 and PSL2 specifications. Our pipes undergo rigorous quality control and testing procedures to ensure compliance with international standards and suitability for high-pressure applications. For inquiries about API 5L X80 pipe procurement, please contact us at info@longma-group.com.
