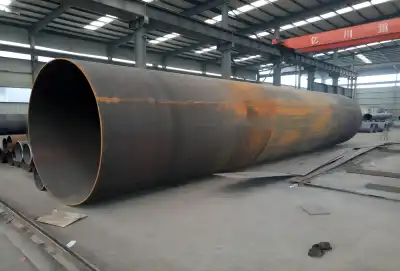

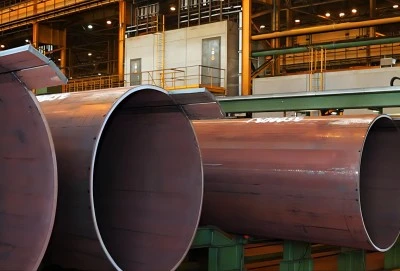

Long seam welded pipe is an essential component in numerous modern applications, such as water dispersion frameworks, oil and gas transportation, and developing underlying scaffolding. The round and hollow shape of these pipes is created by welding a steel plate or strip along its length. Despite its strength and adaptability, vibration analysis faces unique challenges as a result of this manufacturing process. To ensure their durability, safety, and optimal performance, it must be understood and reduced in vibration.
Long seam welded pipes are frequently used in industrial piping systems because they are affordable and can withstand high pressures. The longitudinal weld seam that runs the length of the pipe is a crucial component that affects the mechanical properties and behavior of the pipe under a variety of operating conditions. These pipes are frequently exposed to liquid streams and dynamic loads. As a result, they may experience vibrations that, if not properly maintained, may cause wear and tear, underlying damage, or even devastating disappointment.
Long seam welded pipe vibration investigation is a confusing field that combines materials science, liquid mechanics, and standards of underlying elements. By comprehending the types of vibrations, their sources, and the methods used to analyze them, engineers and operators can develop effective strategies to reduce issues related to vibrations and guarantee the reliability of piping systems.
Types of Vibration:
Vibrations of various kinds can occur in long seam welded pipe, each with distinct characteristics and the potential to compromise the integrity of the pipe. The three primary kinds of vibrations are torsional, lateral, and longitudinal.
Parallel vibration, otherwise called cross over vibration, happens opposite to the pipe's hub. This type of vibration can cause significant pipe displacement and is frequently the most obvious. Long, unsupported pipe spans can be particularly susceptible to lateral vibrations, which may result in excessive stress at support points and weld seams.
Along the length of the pipe, longitudinal vibration causes the pipe to stretch and compress. Longitudinal vibrations can still cause significant stress, particularly at connections and fixtures, despite being frequently less noticeable than lateral vibrations. In long seam welded pipes, these vibrations might overburden the weld crease, possibly prompting exhaustion or break proliferation after some time.
The motion of torsional vibration revolves around the central axis of the pipe. Even though torsional vibrations are less common than lateral or longitudinal vibrations, they can be particularly harmful to long seam welded pipes. If not addressed appropriately, the twisting motion may result in high stress concentrations at the weld seam, which could cause premature failure.
Sources of Vibration:
For efficient analysis and mitigation, it is essential to comprehend the sources of vibration. In long seam welded pipe, vibrations can begin from different variables, both interior and outer to the channeling framework.
One of the primary causes of vibration in piping systems is fluid flow. Turbulence, changes in pressure, and flow-induced vibrations can be caused by fluids moving through the pipe. The internal weld seam can sometimes act as a roughness element in products, which could make flow-induced vibrations worse. Additionally, significant pipe vibrations can be caused by phenomena like water hammer, in which abrupt changes in fluid velocity result in pressure waves.
In long seam welded pipes, external loads are an additional significant source of vibration. Vibrations from nearby machinery or vehicles, seismic activity, or wind loads on above-ground pipelines are all examples of these. The geometry of the pipe, the conditions of the support, and the properties of the weld seam can all have an impact on how long seam welded pipes respond to these external loads.
It may also experience vibration issues as a result of manufacturing flaws. Flaws in the weld crease, like the absence of combination, porosity, or misalignment, can make pressure focuses that might enhance vibrations or lead to untimely disappointment. Additionally, the natural frequencies and vibration characteristics of the pipe may be affected by residual stresses from the welding process.
Vibration Analysis Methods:
To successfully address vibration issues in long seam welded pipe, engineers utilize an assortment of examination techniques. These methods include experimental approaches as well as sophisticated computational simulations.
A common method for describing the dynamic behavior of long seam welded pipes is experimental modal analysis. Using accelerometers or other sensors, this method involves stimulating the pipe with known input forces and measuring its response. Engineers can ascertain the natural frequencies, mode shapes, and damping characteristics of the pipe by analyzing the frequency response functions derived from these measurements. During modal testing, the weld seam's behavior is often given special consideration for pipes with long seams.
In the vibration analysis of long seam welded pipes, numerical simulation has grown in importance. Limited Component Investigation (FEA) permits specialists to make definite models of the line, including the weld crease, and recreate its reaction to different stacking conditions. Stress distributions, potential failure modes, and the efficacy of proposed vibration mitigation strategies can all be gained from these simulations. Modeling the intricate interaction between fluid flow and pipe vibration can be accomplished with advanced methods like Fluid-Structure Interaction (FSI) analysis.
For evaluating the performance of products in the real world and validating analytical predictions, in-situ vibration monitoring is essential. This includes introducing sensors on functional funneling frameworks to ceaselessly quantify vibration levels and examples. Trends, anomalies, and early warning of potential issues can all be found with long-term monitoring. Monitoring may focus specifically on the weld seam area of long seam welded pipes to look for signs of fatigue or degradation.
Long seam welded pipe Supplier:
LONGMA GROUP is a good option to look into when looking for suppliers for long seam welded pipes that are welded together. The Longitudinally Submerged Arc Welded (LSAW) process, which is well-known for producing high-quality, long-lasting pipes suitable for a wide range of applications, is their area of expertise in the production of pipes.
Assuming you're on the lookout for long seam welded pipe manufacturers and keen on getting more familiar with LONGMA GROUP's contributions, you can contact them straightforwardly at info@longma-group.com. It's a good idea to do thorough research and compare various suppliers, just like you would with any major industrial purchase, to find the one that best suits your project's requirements and vibration analysis needs.
