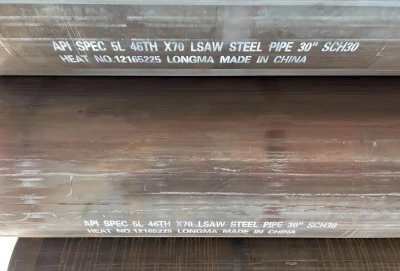

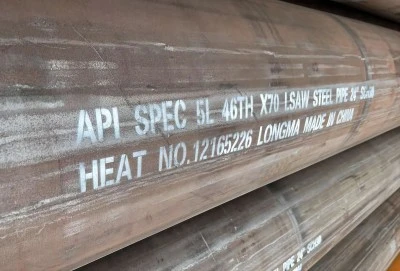

When it comes to pipeline engineering, understanding the maximum pressure that API 5L X70 pipes can withstand is crucial for ensuring safety, efficiency, and longevity in oil and gas transmission systems. In this comprehensive guide, we'll delve into the factors influencing maximum pressure, calculation methods, and safety standards for X70 pipes. Whether you're a seasoned engineer or new to the field, this article will provide valuable insights into maximizing the performance of your pipeline infrastructure.
|
|
|
What factors influence the maximum pressure on X70 pipe?
Several key factors determine the maximum allowable pressure for API 5L X70 pipes. Let's explore these elements in detail:
1. Material Properties: The mechanical properties of X70 steel, including yield strength, tensile strength, and toughness, play a pivotal role in determining pressure capacity. X70 pipes boast a minimum yield strength of 70,000 psi (485 MPa), which contributes to their high-pressure resistance.
2. Pipe Dimensions: The pipe's outer diameter and wall thickness are critical factors. Generally, pipes with larger diameters and thicker walls can withstand higher pressures. However, the relationship isn't always linear, and other factors must be considered.
3. Manufacturing Process: The method used to produce the pipe, whether seamless or welded (ERW or SAW), can affect its pressure-bearing capacity. Seamless pipes often exhibit superior pressure resistance due to their uniform structure.
4. Operating Temperature: Temperature fluctuations can impact the pipe's material properties and, consequently, its pressure-bearing capacity. Extreme temperatures, both high and low, may require derating of the maximum allowable pressure.
5. Corrosion Allowance: In corrosive environments, a portion of the wall thickness is allocated as a corrosion allowance. This reduces the effective thickness available for pressure resistance, potentially lowering the maximum allowable pressure.
6. Safety Factors: Design codes and standards typically incorporate safety factors to account for uncertainties in material properties, loading conditions, and potential defects. These factors influence the final maximum allowable pressure.
7. External Loads: While not directly related to internal pressure, external loads such as soil pressure, traffic loads, and seismic activity can affect the pipe's overall stress state and must be considered in pressure calculations.
8. Weld Quality: For welded pipes, the quality and integrity of the welds can be a limiting factor in pressure capacity. High-quality welds are essential for maintaining the pipe's designed pressure rating.
9. Cyclic Loading: In applications with frequent pressure fluctuations, fatigue considerations may limit the maximum allowable pressure to prevent long-term damage.
10. Environmental Factors: Extreme environmental conditions, such as those found in arctic or subsea applications, may necessitate adjustments to the maximum allowable pressure.
Understanding these factors is essential for accurately determining the maximum pressure capacity of X70 pipes and ensuring their safe and efficient operation in various applications.
How to calculate the maximum pressure for X70 pipe?
Calculating the maximum pressure for API 5L X70 pipe involves considering various factors and applying appropriate formulas. Here's a step-by-step guide to help you determine the maximum allowable pressure:
1. Barlow's Formula: The most commonly used equation for calculating the maximum allowable pressure is Barlow's formula: P = (2 * S * t) / (D * F)
Where:
P = Maximum allowable pressure (psi or MPa)
S = Specified minimum yield strength (SMYS) of X70 steel (70,000 psi or 485 MPa)
t = Nominal wall thickness (inches or mm)
D = Nominal outside diameter (inches or mm)
F = Design factor (typically 0.72 for onshore pipelines, but may vary based on location and regulations)
2. Adjustments for Temperature: If the operating temperature differs significantly from ambient conditions, you may need to apply a temperature derating factor. Consult relevant standards or manufacturer specifications for temperature derating curves.
3. Corrosion Allowance: Subtract the corrosion allowance from the nominal wall thickness to obtain the effective thickness for pressure calculations: t_effective = t_nominal - corrosion_allowance
4. Weld Joint Factor: For welded pipes, apply the appropriate weld joint factor (E) to account for potential weld weaknesses: P = (2 * S * t * E) / (D * F) Typical values for E range from 0.60 to 1.00, depending on the welding method and quality control.
5. Surge Pressure Considerations: In systems prone to pressure surges, calculate the maximum surge pressure and add it to the steady-state pressure: P_total = P_steady + P_surge Ensure that P_total does not exceed the maximum allowable pressure calculated earlier.
6. Fatigue Analysis: For applications with cyclic loading, perform a fatigue analysis to determine if the calculated maximum pressure needs to be reduced to prevent long-term fatigue damage.
7. External Load Considerations: Incorporate the effects of external loads into your calculations. This may involve complex finite element analysis or simplified methods outlined in design codes.
8. Safety Factor Application: Apply an overall safety factor to your calculated pressure to account for uncertainties: P_safe = P_calculated / safety_factor Typical safety factors range from 1.5 to 2.0, depending on the application and governing standards.
9. Code Compliance: Ensure that your calculations comply with relevant industry codes and standards, such as ASME B31.4 for liquid pipelines or ASME B31.8 for gas pipelines.
10. Validation: Cross-check your calculations using specialized pipeline design software or consult with experienced engineers to validate your results. Remember, while these calculations provide a good starting point, real-world conditions can be complex.
It's crucial to consider all relevant factors and consult with experts when designing high-pressure pipeline systems using X70 pipes.
What are the safety standards for the maximum pressure on X70 pipe?
Ensuring the safe operation of API 5L X70 pipes under maximum pressure conditions is paramount in the oil and gas industry. Several safety standards and regulations govern the design, installation, and operation of these high-pressure pipelines. Let's explore the key safety standards and considerations:
1. ASME B31 Code Series: The American Society of Mechanical Engineers (ASME) B31 series of codes provides comprehensive guidelines for pressure piping. Specifically:
- ASME B31.4: Pipeline Transportation Systems for Liquids and Slurries
- ASME B31.8: Gas Transmission and Distribution Piping Systems These codes outline design factors, material requirements, and testing procedures to ensure safe operation under maximum pressure conditions.
2. API Standards: The American Petroleum Institute (API) provides several standards relevant to X70 pipe pressure safety:
- API 1104: Welding of Pipelines and Related Facilities
- API RP 1111: Design, Construction, Operation, and Maintenance of Offshore Hydrocarbon Pipelines
These standards address welding procedures, quality control, and specific considerations for offshore applications.
3. DNV-OS-F101: For offshore pipelines, the Det Norske Veritas (DNV) Offshore Standard F101 provides comprehensive guidelines for submarine pipeline systems, including pressure design and safety factors.
4. ISO 3183: This international standard specifies the technical delivery conditions for steel pipes used in pipeline transportation systems in the petroleum and natural gas industries.
5. Maximum Operating Pressure (MOP): Regulatory bodies often specify a Maximum Operating Pressure (MOP) that is lower than the calculated maximum allowable pressure. For example, in the United States, the Department of Transportation's Pipeline and Hazardous Materials Safety Administration (PHMSA) sets MOP requirements for different pipeline classifications.
6. Hydrostatic Testing: Safety standards typically require hydrostatic testing of pipelines before commissioning. The test pressure is usually 1.25 to 1.5 times the maximum operating pressure, depending on the applicable code.
7. Overpressure Protection: Installation of pressure relief devices and automatic shut-off systems is mandated to prevent accidental overpressurization of the pipeline.
8. Corrosion Control: Standards require implementation of corrosion control measures, such as cathodic protection systems and protective coatings, to maintain the integrity of the pipe over its operational lifetime.
9. Inspection and Maintenance: Regular inspection and maintenance programs are mandated to ensure the ongoing integrity of the pipeline. This may include in-line inspections, external corrosion surveys, and periodic pressure tests.
10. Risk Assessment: Many standards now require comprehensive risk assessments to identify potential hazards and implement appropriate mitigation measures.
11. Strain-Based Design: For pipelines in seismically active areas or regions prone to ground movement, strain-based design approaches may be required to ensure safety under extreme conditions.
12. Fracture Control: Standards often specify requirements for fracture toughness and crack arrest properties to prevent catastrophic failures under high-pressure conditions.
13. Material Traceability: Strict material traceability requirements ensure that all components used in high-pressure applications meet the specified grade and quality standards.
14. Welding and Non-Destructive Testing (NDT): Stringent welding procedures and comprehensive NDT requirements are specified to ensure the integrity of welded joints, which are often the weakest points in a pipeline system.
15. Environmental Considerations: Safety standards increasingly incorporate environmental protection measures, including requirements for leak detection systems and emergency response plans. Adhering to these safety standards is crucial for ensuring the safe and reliable operation of X70 pipes under maximum pressure conditions.
It's important to note that regulations and standards may vary by region and application, so always consult the most up-to-date versions and seek expert advice when designing and operating high-pressure pipeline systems.
Longma Group:
In conclusion, understanding the maximum pressure capabilities of API 5L X70 pipes is essential for designing and operating safe, efficient, and long-lasting pipeline systems. By considering the various factors that influence pressure capacity, applying accurate calculation methods, and adhering to stringent safety standards, engineers and operators can maximize the performance of their infrastructure while minimizing risks. As the oil and gas industry continues to push the boundaries of pipeline technology, staying informed about the latest developments in materials science, engineering practices, and safety regulations is crucial. Whether you're working on a new pipeline project or managing existing infrastructure, the principles discussed in this article provide a solid foundation for making informed decisions about maximum pressure limits for X70 pipes. Remember, while calculations and standards provide invaluable guidance, real-world conditions can be complex and unpredictable. Always err on the side of caution, consult with experts, and prioritize safety in all aspects of pipeline design and operation.
For more information on our high-quality X70 pipes and how they can meet your specific pressure requirements, please don't hesitate to contact us at info@longma-group.com. Our team of experts is ready to assist you in selecting the right pipe solutions for your project needs.
