In the world of oil and gas transportation, API 5L pipes play a crucial role in ensuring the safe and efficient movement of resources. Among these, the distinction between PSL1 and PSL2 specifications is particularly important. This article delves into the key differences between API 5L PSL1 and PSL2 pipes, exploring their technical specifications, mechanical properties, and inspection protocols.
API 5L PSL1 and PSL2 Specifications
API 5L, which stands for American Petroleum Institute Specification 5L, is a standard that governs the manufacturing of line pipes used in oil and gas transportation. Within this specification, there are two product specification levels: PSL1 and PSL2. These levels differ in their requirements and are chosen based on the specific needs of a pipeline project.
API 5L PSL1 pipes are generally considered the standard specification level. They are suitable for less demanding applications and are often used in lower-pressure systems or where the operating conditions are less severe. PSL1 pipes have been a staple in the industry for many years and continue to serve well in numerous applications.
On the other hand, API 5L PSL2 pipes are designed for more critical applications. They have stricter requirements in terms of manufacturing processes, material properties, and testing protocols. PSL2 pipes are typically used in high-pressure systems, offshore pipelines, or in environments where the consequences of failure could be more severe.
The choice between PSL1 and PSL2 depends on various factors, including the intended use of the pipeline, environmental conditions, regulatory requirements, and project specifications. Understanding these differences is crucial for engineers, project managers, and procurement specialists in the oil and gas industry.
Technical Differences Between PSL1 and PSL2 Pipes
The technical specifications for PSL1 and PSL2 pipes differ in several key areas:
1. Chemical Composition: PSL2 pipes have more stringent requirements for chemical composition compared to PSL1 pipes. For instance, PSL2 pipes often have tighter controls on carbon equivalent, which affects the weldability and overall strength of the pipe. This ensures better performance in demanding environments.
2. Manufacturing Process: While both PSL1 and PSL2 pipes can be manufactured using similar methods (such as seamless, ERW, or LSAW processes), PSL2 pipes often require more advanced manufacturing techniques and stricter quality control measures. This results in a more consistent and reliable product.
3. Dimensional Tolerances: PSL2 pipes generally have tighter tolerances for dimensions such as diameter, wall thickness, and straightness. This ensures better fit-up during pipeline construction and reduces the risk of stress concentrations.
4. Surface Finish: PSL2 pipes often have more stringent requirements for surface finish and defect tolerances. This is particularly important for applications where corrosion resistance or flow efficiency is critical.
5. Heat Treatment: Depending on the grade and intended use, PSL2 pipes may require specific heat treatment processes to achieve the desired mechanical properties. This is less common for PSL1 pipes.
These technical differences contribute to the overall quality and performance of the pipes, making PSL2 pipes more suitable for critical applications where reliability and safety are paramount.
Mechanical Property Requirements: PSL1 vs PSL2
The mechanical properties of API 5L pipes are crucial for ensuring their performance and safety in various operating conditions. PSL1 and PSL2 pipes have different requirements in this regard:
1. Yield Strength and Tensile Strength: Both PSL1 and PSL2 pipes have specified minimum yield strength (SMYS) and specified minimum tensile strength (SMTS) requirements. However, PSL2 pipes often have tighter ranges for these properties, ensuring more consistent performance. Additionally, PSL2 may have requirements for maximum yield strength to prevent overly brittle behavior.
2. Elongation: Elongation is a measure of a material's ductility. While they have elongation requirements, PSL2 specifications are typically more stringent, ensuring better performance under deformation.
3. Fracture Toughness: PSL2 pipes often have specific requirements for fracture toughness, usually measured by Charpy V-notch impact tests. This is crucial for preventing brittle fracture, especially in low-temperature environments. PSL1 pipes may not always have these requirements, depending on the grade and intended use.
4. Hardness: Maximum hardness limits are often specified for PSL2 pipes, particularly for sour service applications. This helps ensure weldability and reduces the risk of hydrogen-induced cracking. PSL1 pipes may not always have specific hardness requirements.
5. Strain Aging: PSL2 pipes may have requirements related to strain aging resistance, which is important for maintaining mechanical properties over time, especially in pipelines subject to plastic deformation during installation or operation.
These mechanical property requirements reflect the more demanding applications for which PSL2 pipes are intended. The stricter controls ensure that PSL2 pipes can withstand higher pressures, more extreme temperatures, and more challenging environmental conditions compared to their PSL1 counterparts.
Inspection and Testing Protocols: PSL1 vs PSL2
The inspection and testing protocols for API 5L pipes differ significantly between PSL1 and PSL2 specifications, reflecting the higher quality assurance standards required for PSL2 pipes:
1. Non-Destructive Testing (NDT): PSL2 pipes typically require more extensive NDT compared to PSL1 pipes. This may include:
- 100% ultrasonic inspection of the pipe body and weld seam (for welded pipes)
- Radiographic testing of weld seams
- Magnetic particle or dye penetrant testing of pipe ends
PSL1 pipes may have less stringent NDT requirements, often allowing for partial inspection or relying more on visual inspection methods.
2. Mechanical Testing Frequency: PSL2 pipes generally require more frequent mechanical testing. For example, tensile tests and impact tests may be required for each heat of steel and each lot of pipes, whereas PSL1 might allow for less frequent testing.
3. Hydrostatic Testing: While both PSL1 and PSL2 pipes undergo hydrostatic testing, the test pressure and duration may be more demanding for PSL2 pipes. Additionally, PSL2 may require more precise pressure measurement and recording during the test.
4. Material Traceability: PSL2 pipes often require enhanced traceability, with each pipe marked to allow tracking back to the specific heat of steel and manufacturing lot. This level of traceability may not always be required for PSL1 pipes.
5. Quality Documentation: PSL2 pipes typically come with more extensive quality documentation, including detailed test reports, material certificates, and manufacturing records. PSL1 documentation requirements are generally less extensive.
6. Supplementary Testing: Depending on the specific application, PSL2 pipes may require additional tests not typically performed on PSL1 pipes. These could include:
- Hydrogen-induced cracking (HIC) tests for sour service applications
- Stress corrosion cracking (SCC) tests
- Collapse testing for offshore applications
These more rigorous inspection and testing protocols for PSL2 pipes ensure a higher level of quality assurance, which is critical for the demanding applications in which these pipes are typically used. The additional testing and inspection contribute to the higher cost of PSL2 pipes but provide greater confidence in their performance and reliability.
About Longma Group
The choice between API 5L PSL1 and PSL2 pipes is a critical decision in pipeline projects, with far-reaching implications for safety, performance, and cost. PSL1 pipes, with their standard specifications, continue to serve well in many applications where conditions are less demanding. They offer a cost-effective solution for many pipeline projects.
PSL2 pipes, with their enhanced technical specifications, stricter mechanical property requirements, and more rigorous inspection protocols, are the go-to choice for critical applications. While they come at a higher cost, the additional assurance of quality and performance they provide is often essential in high-pressure systems, offshore pipelines, or environmentally sensitive areas.
Ultimately, the decision between PSL1 and PSL2 should be based on a careful assessment of the specific project requirements, regulatory standards, and risk factors involved. Engineers and project managers must weigh the benefits of the higher-specification PSL2 pipes against their increased cost, considering the long-term implications for pipeline safety, reliability, and maintenance.

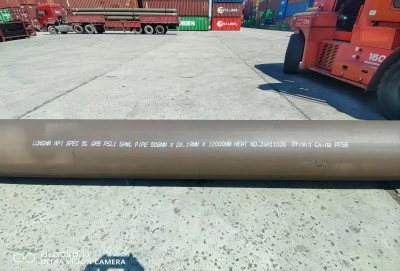

For those seeking high-quality PSL1 pipes, Longma Group stands out as a reliable manufacturer. With an annual output exceeding 1,000,000 tons as of 2023, Longma Group offers a wide range of API 5L PSL1 pipes in grades B, X42, X46, X52, X56, X60, X65, X70, and X80. Their pipes range from 1/8" to 80" in outer diameter and SCH10 to SCH160 in thickness. With a commitment to excellent products and services, and the ability to deliver in as fast as 7 days, Longma Group is equipped to meet diverse project needs. For more information or to discuss your specific requirements, please contact Longma Group at info@longma-group.com.
References
- American Petroleum Institute. (2018). API Specification 5L: Specification for Line Pipe. Washington, DC: API Publishing Services.
- Bai, Y., & Bai, Q. (2014). Subsea Pipeline Design, Analysis, and Installation. Gulf Professional Publishing.
- Cosham, A., & Hopkins, P. (2004). The Effect of Dents in Pipelines - Guidance in the Pipeline Defect Assessment Manual. International Journal of Pressure Vessels and Piping, 81(2), 127-139.
- Palmer, A. C., & King, R. A. (2008). Subsea Pipeline Engineering. PennWell Books.
