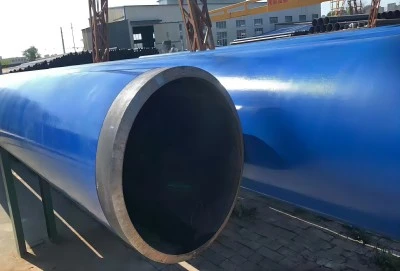

The 3-Layer Polyethylene (3LPE) coating process for steel pipes is a cutting-edge method used to protect pipelines from corrosion and mechanical damage. This process involves applying three distinct layers - epoxy, adhesive, and polyethylene - to create a robust PE coated steel pipe. The 3LPE coating enhances the durability and longevity of pipelines, making them ideal for various applications in the oil and gas, water supply, and industrial sectors.
Surface preparation: Key to 3LPE coating success
The foundation of a successful PE coated steel pipe lies in thorough surface preparation. This critical step ensures optimal adhesion and long-lasting protection for the steel pipe. Let's break down the surface preparation process into three essential components:
Blast cleaning: Removing contaminants for optimal adhesion
Blast cleaning is the first and most crucial step in surface preparation. This process involves propelling abrasive materials at high velocity against the steel surface to remove rust, mill scale, and other contaminants. The choice of abrasive material depends on the pipe's condition and the desired surface profile. Common options include steel grit, aluminum oxide, and garnet.
For optimal results, the blast cleaning process should achieve a near-white metal finish, typically corresponding to Sa 2.5 or Sa 3 as per ISO 8501-1 standards. This level of cleanliness ensures that the pipe surface is free from visible oil, grease, dirt, mill scale, rust, paint coatings, and other foreign matter.
Surface profile: Creating ideal anchor patterns for coating
After blast cleaning, the steel surface should have a specific roughness or profile. This profile creates an ideal anchor pattern for the coating to adhere to. The surface profile is typically measured in micrometers (μm) and should fall within a range of 50-100 μm for most 3LPE applications.
To achieve the desired profile, operators must carefully select the abrasive material size and adjust the blasting pressure. Regular profile measurements using replica tape or digital profile gauges help ensure consistency throughout the pipe length.
Pre-heating: Ensuring proper temperature for coating application
The final step in surface preparation involves pre-heating the steel pipe. This process serves two primary purposes: it removes any remaining moisture from the surface and brings the pipe to the optimal temperature for coating application.
Pre-heating temperatures typically range from 180°C to 240°C, depending on the specific coating system requirements. Induction heating or gas-fired ovens are commonly used to achieve uniform heating across the pipe surface. Proper temperature control is crucial, as it affects the curing of the epoxy layer and the overall coating quality.
Applying epoxy, adhesive, and PE layers
Once the surface preparation is complete, the actual coating process begins. The PE coated steel pipe system consists of three distinct layers, each serving a specific purpose in protecting the steel pipe. Let's examine each layer and its application process:
FBE primer: Laying the foundation for corrosion protection
The first layer applied to the prepared steel surface is the Fusion Bonded Epoxy (FBE) primer. This layer serves as the primary corrosion barrier and provides excellent adhesion to the steel substrate. The FBE powder is electrostatically charged and sprayed onto the heated pipe surface, where it immediately melts and flows to form a continuous film.
The thickness of the FBE layer typically ranges from 125 to 250 micrometers, depending on the specific project requirements. The application temperature is critical, usually between 180°C and 240°C, to ensure proper curing and bonding of the epoxy to the steel surface.
Adhesive layer: Enhancing bonding between FBE and PE
The second layer in the 3LPE system is the adhesive layer. This layer acts as a bridge between the FBE primer and the outer polyethylene coating, ensuring strong adhesion between these two dissimilar materials. The adhesive is typically a grafted polyethylene material that is compatible with both the epoxy and the PE topcoat.
The adhesive is applied immediately after the FBE layer while the pipe is still hot. It is extruded onto the pipe surface in a thin, uniform layer, usually ranging from 150 to 300 micrometers in thickness. The heat from the pipe causes the adhesive to melt and bond with the FBE layer beneath it.
Polyethylene topcoat: Providing mechanical protection
The final layer in the 3LPE coating system is the polyethylene topcoat. This outer layer provides mechanical protection against impacts, abrasion, and environmental stresses. High-density polyethylene (HDPE) is commonly used for this layer due to its excellent durability and resistance to chemicals and moisture.
The PE topcoat is applied through extrusion, immediately following the adhesive layer. The thickness of this layer can vary significantly depending on the pipe's intended use and environmental conditions, typically ranging from 1.8 to 3.5 millimeters or more for severe service conditions.
Post-coating inspection and testing procedures
After the application of all three layers, the PE coated steel pipe undergoes rigorous inspection and testing to ensure coating quality and performance. These procedures are critical for verifying the integrity of the coating system and its ability to protect the steel pipe in service. Let's explore the key inspection and testing methods:
Holiday detection: Identifying coating defects and pinholes
Holiday detection is a crucial step in quality control for PE coated steel pipes. This non-destructive test aims to identify any discontinuities, pinholes, or thin spots in the coating that could compromise its protective properties. The test involves passing a high-voltage probe over the entire coated surface of the pipe.
For 3LPE coatings, the test voltage is typically set between 20-25 kV, depending on the total coating thickness. Any defects in the coating will allow the electrical current to pass through, triggering an alarm. These defects are then marked for repair or further investigation. Holiday detection ensures that the coating provides a continuous barrier against corrosion and moisture ingress.
Adhesion testing: Ensuring proper bonding of 3LPE layers
Adhesion testing is performed to verify the strength of the bond between the different layers of the 3LPE coating and the steel substrate. There are several methods for testing adhesion, including peel tests and pull-off tests.
The peel test involves cutting a strip of the coating and measuring the force required to peel it away from the pipe surface at a specific angle (usually 90 degrees). The pull-off test uses a dolly glued to the coating surface, which is then pulled perpendicular to the pipe surface until failure occurs. Both tests provide quantitative data on the adhesion strength, which should meet or exceed the minimum requirements specified in industry standards such as ISO 21809-1.
Cathodic disbondment: Evaluating coating resistance
Cathodic disbondment testing assesses the coating's ability to resist degradation under cathodic protection conditions. This test simulates long-term exposure to cathodic protection systems commonly used in buried or submerged pipelines.
The test involves creating a small holiday in the coating and exposing it to an electrolyte solution while applying a cathodic current. After a specified period (typically 28 days), the sample is examined to measure the extent of coating disbondment from the intentional holiday. The results indicate the coating's resistance to degradation and its ability to maintain adhesion under cathodic protection, which is crucial for long-term pipeline integrity.

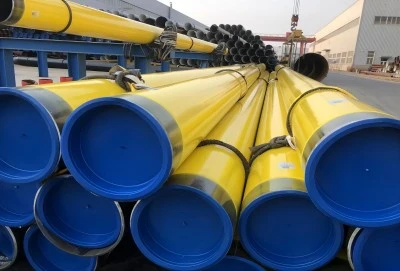

The step-by-step 3LPE coating process for steel pipes is a sophisticated and highly effective method for protecting pipelines against corrosion and mechanical damage. From meticulous surface preparation to the application of multiple protective layers and rigorous quality control tests, every stage plays a vital role in creating a durable and long-lasting PE coated steel pipe. By understanding and implementing this process, pipeline engineers and project managers can ensure the longevity and reliability of their infrastructure, particularly in challenging environments like those found in the Middle East, Australia, and Southeast Asia. As the demand for robust pipeline solutions continues to grow in these regions, the 3LPE coating process stands as a testament to the industry's commitment to innovation and excellence in pipeline protection.
