Welding Standards And Specifications
The welding process for A53 B ERW (Electric Resistance Welded) pipes is governed by a set of rigorous standards and specifications designed to ensure the integrity and reliability of the welded joints. These standards are crucial in maintaining the quality and safety of pipelines and other structures that utilize these pipes. The primary standard that governs A53 B ERW pipes is ASTM A53/A53M, which provides detailed specifications for the pipe material, manufacturing process, and testing requirements.
In addition to ASTM A53/A53M, several other standards play important roles in defining the welding requirements for these pipes. The American Welding Society (AWS) provides comprehensive guidelines for welding processes, particularly in its D1.1 Structural Welding Code - Steel. This code outlines the requirements for welding steel structures, including the qualification of welding procedures and welders. For pipeline applications, API 1104 (Welding of Pipelines and Related Facilities) is often referenced, providing specific guidelines for pipeline welding.
The ASME Boiler and Pressure Vessel Code, particularly Section IX, is another crucial standard that addresses the qualification of welding procedures and welders. This code is especially relevant when A53 B ERW pipes are used in pressure vessel applications or in systems where pressure containment is critical. These standards collectively ensure that the welding process meets the necessary quality and safety requirements across various industries and applications.
It's important to note that while A53 B ERW pipes are manufactured using the electric resistance welding process, additional welding is often required during installation or when joining pipe sections. The standards mentioned above primarily govern these field welding processes. The original ERW seam is typically not rewelded unless specifically required by project specifications or if defects are detected.
|
|
|
Welding Processes
When it comes to welding A53 B ERW pipes in the field or for joining pipe sections, several welding processes are commonly employed. The choice of welding process depends on factors such as the pipe diameter, wall thickness, material properties, project requirements, and the specific application of the piping system.
Shielded Metal Arc Welding (SMAW), also known as stick welding, is one of the most widely used processes for welding A53 pipes. This process is favored for its versatility, particularly in field conditions where access may be limited. SMAW is suitable for a wide range of pipe sizes and can be used in various positions, making it ideal for pipeline construction and repair work. The process involves using a flux-coated electrode that creates a shielding gas as it melts, protecting the weld pool from atmospheric contamination.
Gas Tungsten Arc Welding (GTAW), also referred to as TIG welding, is another process commonly used, especially for the root pass in pipe welding. GTAW provides excellent control and produces high-quality welds with minimal spatter. This process is particularly beneficial when working with thinner-walled pipes or when a high degree of precision is required. However, GTAW is generally slower than other processes and requires more skill from the welder.
Gas Metal Arc Welding (GMAW), or MIG welding, is sometimes used for welding A53 pipes, particularly in shop environments or for larger diameter pipes. This process offers higher deposition rates compared to SMAW and GTAW, potentially increasing productivity. However, GMAW is more sensitive to wind and environmental conditions, which can limit its use in field applications.
Flux-Cored Arc Welding (FCAW) is another process that finds application in welding A53 B ERW pipes. This process combines the productivity advantages of GMAW with the versatility of SMAW. FCAW is particularly useful in outdoor conditions as the flux core provides shielding, making it less susceptible to wind compared to GMAW.
In some cases, particularly for large-diameter pipes or in high-production environments, automated welding processes may be employed. These can include automated GMAW systems or specialized orbital welding equipment that can produce consistent, high-quality welds with increased efficiency.
Welding Procedure Specification (WPS)
A critical component in ensuring the quality and consistency of welds on A53 B ERW pipes is the development and implementation of a Welding Procedure Specification (WPS). A WPS is a formal document that provides detailed instructions for performing welding operations. It serves as a guide for welders and ensures that welding is carried out in a consistent manner that meets the required quality standards.
The WPS for welding A53 B ERW pipes typically includes several key elements. First, it specifies the base material, in this case, A53 Grade B steel, along with its thickness range. The welding process to be used is clearly defined, whether it's SMAW, GTAW, GMAW, or another approved method. The WPS also details the type and size of filler metals to be used, which must be compatible with the A53 B material and provide the required mechanical properties in the completed weld.
Welding parameters form a crucial part of the WPS. These include the welding current and voltage ranges, travel speed, and heat input limits. For multi-pass welds, which are common in pipe welding, the WPS will specify the number of passes and the sequence in which they should be performed. Preheating and interpass temperature requirements are also typically included, as these can significantly affect the metallurgical properties of the weld and heat-affected zone.
The WPS will also address joint design, detailing the required bevel angle, root face, and root gap for butt welds, or the fit-up requirements for fillet welds. Post-weld heat treatment requirements, if any, are specified, although this is less common for A53 B ERW pipes unless they are being used in particularly demanding applications.
Before a WPS can be used in production, it must be qualified through testing. This typically involves creating test welds following the WPS and subjecting them to a range of mechanical tests, including tensile testing, bend testing, and often impact testing. The results of these tests must meet or exceed the minimum requirements specified in the applicable codes and standards.
It's important to note that welders who will be performing the welding must also be qualified on the specific WPS. This involves demonstrating their ability to produce acceptable welds following the WPS under test conditions. Welder qualification helps ensure that the individuals performing the welding have the necessary skills and knowledge to consistently produce high-quality welds.

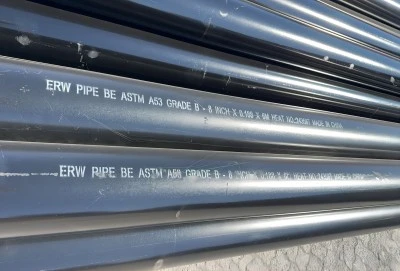

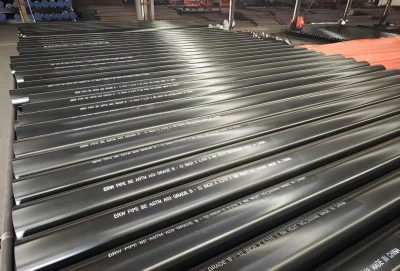

A53 B ERW Pipe For Sale
