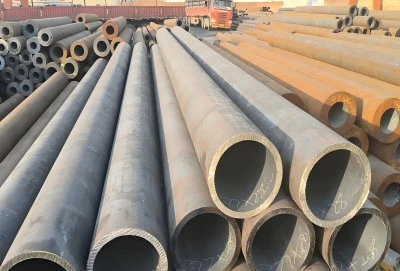

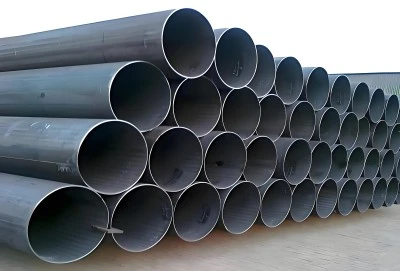

When it comes to structural steel grades, understanding the various designations and their meanings is crucial for engineers, contractors, and anyone involved in construction or manufacturing. One common grade you may encounter is S235JR, particularly in the form of S235JR pipe. But what exactly does the "JR" stand for, and why is it important? In this comprehensive guide, we'll delve into the significance of the JR designation, its impact on steel properties, and how it compares to other similar classifications.
The Meaning Behind JR in S235JR
To understand what JR stands for in S235JR, let's break down the entire designation:
- S: Structural steel
- 235: Minimum yield strength in megapascals (MPa)
- JR: Impact test requirements
The "JR" in S235JR specifically refers to the impact test requirements for the steel. In this case:
- J: Indicates that the steel has been impact tested using the Charpy V-notch test
- R: Specifies that the test was conducted at room temperature (20°C or 68°F)
This designation is part of the European standard EN 10025, which defines the technical delivery conditions for hot-rolled products of structural steels. The JR classification ensures that the steel meets specific toughness requirements at room temperature, making it suitable for various applications, including S235JR pipe production.
Impact of JR Classification on S235JR Properties
The JR designation in S235JR has significant implications for the steel's properties, particularly its impact resistance. Here's how the JR classification affects the characteristics of S235JR pipe and other structural elements:
1. Toughness at Room Temperature
The primary influence of the JR designation is on the steel's toughness at room temperature. S235JR is required to meet a minimum impact energy of 27 Joules (J) at 20°C when tested using the Charpy V-notch method. This ensures that the material can withstand sudden impacts without brittle fracture under normal environmental conditions.
2. Weldability
The JR classification also indirectly affects the weldability of S235JR pipe. Since the steel meets specific toughness requirements at room temperature, it generally exhibits good weldability without the need for preheating in most applications. This characteristic makes S235JR an excellent choice for various welded structures and piping systems.
3. Cold-Forming Capabilities
The impact resistance properties associated with the JR designation contribute to the steel's ability to undergo cold-forming processes. S235JR pipe can be bent, rolled, or otherwise shaped at room temperature without compromising its structural integrity, making it versatile for various manufacturing and construction applications.
4. Suitability for Different Environmental Conditions
While S235JR is tested for impact resistance at room temperature, it's important to note that its performance may vary in different environmental conditions. For applications involving lower temperatures or more severe impact requirements, other grades with different suffixes (such as J0 or J2) may be more appropriate.
Other Suffixes in European Steel Standards
The JR designation is just one of several suffixes used in European steel standards to indicate impact test requirements. Understanding these alternatives can help you choose the right steel grade for your specific application. Here are some other common suffixes:
1. J0
Similar to JR, the J0 suffix indicates that the steel has been impact tested using the Charpy V-notch method. However, J0 specifies that the test was conducted at 0°C (32°F). This grade offers improved low-temperature toughness compared to JR, making it suitable for applications where the material may be exposed to colder environments.
2. J2
The J2 designation signifies that the steel has been impact tested at -20°C (-4°F). This grade provides even better low-temperature toughness, making it ideal for structures or components that may be subjected to very cold conditions or require enhanced impact resistance.
3. K2
While not as common as the J-series suffixes, K2 indicates that the steel has been impact tested at -20°C (-4°F) but with a higher minimum impact energy requirement of 40 Joules. This grade is used for applications demanding superior toughness and impact resistance at low temperatures.
4. N
The N suffix stands for "Normalized" or "Normalized Rolled." This designation indicates that the steel has undergone a heat treatment process to refine its grain structure, resulting in improved strength and toughness. S235JRN, for example, would have the same impact test requirements as S235JR but with the added benefits of normalization.
5. M
The M suffix denotes "Thermomechanically Rolled" steel. This processing method involves carefully controlled rolling and cooling to achieve specific microstructural properties. Thermomechanical rolling can result in improved strength and toughness compared to conventional hot-rolling techniques.
When selecting steel for your project, it's crucial to consider the specific requirements of your application, including operating temperature, impact resistance needs, and fabrication methods. While S235JR pipe may be suitable for many room-temperature applications, other grades with different suffixes might be more appropriate for more demanding environments or specialized uses.
Contact Information
Are you embarking on a new project and in search of top-notch S235JR pipe or other premium steel products? Your search ends right here with Longma Group. Since our establishment in 2003, we have firmly entrenched ourselves as one of the preeminent ERW (Electric Resistance Welded)/LSAW (Longitudinal Submerged Arc Welded) steel pipe manufacturers in China.
Our area of expertise lies in the production of large - diameter, thick - walled, double - sided, sub - arc - seam welding steel pipes. When it comes to large-diameter pipes, we are well-equipped to meet the demands of projects that require substantial throughput or enhanced structural support. For instance, in major infrastructure projects such as large-scale water supply systems or oil and gas pipelines that span vast distances, our large-diameter pipes ensure the efficient transportation of fluids with minimal resistance. These pipes are engineered to maintain their integrity under high-pressure conditions and the weight of the substances they carry.
Don't hesitate to reach out to us at info@longma-group.com to discuss your steel needs and how we can help you achieve success in your endeavors.
References
- EN 10025-2:2019 - Hot rolled products of structural steels - Part 2: Technical delivery conditions for non-alloy structural steels
- ASM International, "ASM Handbook, Volume 1: Properties and Selection: Irons, Steels, and High-Performance Alloys"
- The Welding Institute (TWI), "Welding of Structural Steels"
- International Journal of Mechanical Sciences, "Cold forming of structural steels: Material properties and process simulation"
- Journal of Constructional Steel Research, "Impact toughness of structural steels at various temperatures"
