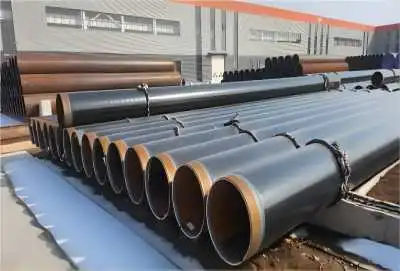

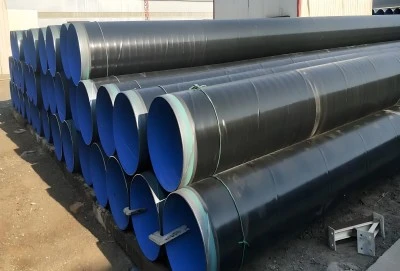

3PE coating steel pipe is a revolutionary solution in pipeline protection technology. This advanced piping system features a triple-layer coating that combines the strengths of fusion-bonded epoxy (FBE), adhesive, and polyethylene. The result is a highly durable, corrosion-resistant pipe that outperforms traditional coating methods. Designed to withstand harsh environments and extend pipeline lifespans, 3PE coating pipes have become the go-to choice for major infrastructure projects worldwide, particularly in oil and gas, water supply, and offshore applications.
Three-Layer Protection Explained
The 3PE coating steel pipe's exceptional performance stems from its unique three-layer structure. Each layer serves a specific purpose, working in harmony to provide unparalleled protection for steel pipes. Let's delve into the composition and functions of each layer:
FBE Layer: The Corrosion-Resistant Foundation
At the core of the 3PE coating steel pipe lies the Fusion Bonded Epoxy (FBE) layer. This thermosetting polymer coating is applied directly to the steel surface of the pipe. The FBE layer acts as a powerful barrier against corrosion, effectively shielding the pipe from moisture, chemicals, and other corrosive elements. Its excellent adhesion properties ensure a strong bond with the steel substrate, preventing underfilm corrosion.
The FBE layer also provides cathodic disbondment resistance, which is crucial for maintaining the integrity of the coating system in cathodically protected pipelines. This feature is particularly valuable in underground and underwater applications where electrochemical corrosion is a significant concern.
Adhesive Layer: Ensuring Strong Bonding
The second layer in the 3PE coating steel pipe is the adhesive layer. This intermediate coating serves as a critical link between the FBE layer and the outer polyethylene layer. The adhesive is typically a modified polyethylene material that is compatible with both the FBE and the topcoat.
The primary function of the adhesive layer is to enhance the overall bonding strength of the coating system. It creates a strong chemical and mechanical bond between the inner and outer layers, ensuring that the entire coating remains intact even under extreme conditions. This strong adhesion is essential for preventing coating delamination, which could expose the pipe to potential corrosion risks.
Polyethylene Layer: Durable Outer Protection
The final component of the 3PE coating is the polyethylene (PE) layer. This outermost layer provides mechanical protection and acts as a barrier against external damage. High-density polyethylene (HDPE) is commonly used for this layer due to its excellent resistance to impact, abrasion, and environmental stress cracking.
The PE layer also offers superior resistance to UV radiation, making it ideal for above-ground applications. Its smooth surface reduces friction during pipe installation, particularly in trenchless or directional drilling methods. Additionally, the PE layer's low water absorption properties further enhance the overall moisture barrier of the coating system.
Advantages Over Traditional Coatings
The 3PE coating steel pipe offers numerous benefits compared to conventional pipe coating methods. These advantages have made it the preferred choice for many large-scale infrastructure projects, especially in challenging environments. Let's explore the key benefits that set 3PE coating apart:
Enhanced Corrosion Resistance for Longer Pipe Life
One of the primary advantages of 3PE coating steel pipe is its superior corrosion resistance. The multi-layer structure provides a formidable barrier against various corrosive agents, including moisture, chemicals, and soil contaminants. This enhanced protection significantly extends the service life of pipelines, reducing the need for costly repairs and replacements.
The FBE layer, with its excellent adhesion to steel, prevents underfilm corrosion even if the outer layers are damaged. The combination of FBE and polyethylene creates a synergistic effect, offering protection that surpasses what either material could provide individually. This robust corrosion resistance is particularly valuable in aggressive environments such as offshore installations or areas with high soil acidity.
Improved Mechanical Properties and Wear Resistance
3PE coated pipes exhibit exceptional mechanical strength and durability. The outer polyethylene layer provides excellent resistance to impact, abrasion, and puncture. This enhanced toughness protects the pipe during transportation, installation, and throughout its operational life.
The coating system also demonstrates superior resistance to soil stress and movement. This flexibility allows the pipe to withstand ground shifts and settlement without compromising the coating's integrity. The improved wear resistance translates to lower maintenance requirements and reduced risk of coating failure in high-stress applications.
Cost-Effective Solution for Pipeline Protection
While the initial cost of 3PE coating steel pipe may be higher than some traditional coating methods, it proves to be a cost-effective solution in the long run. The extended service life and reduced maintenance needs result in significant cost savings over the pipeline's lifetime. Fewer repairs and replacements mean lower operational costs and minimized downtime for pipeline operators.
Moreover, the 3PE coating's excellent performance in trenchless installation methods can lead to substantial cost reductions in urban or environmentally sensitive areas. The coating's low friction surface facilitates easier pipe pulling, reducing installation time and equipment wear. These factors contribute to overall project cost efficiency, making 3PE coating an attractive option for large-scale infrastructure investments.
Industries Benefiting from 3PE Technology
The versatility and robust performance of 3PE coating steel pipe technology have made it invaluable across various industries. Its ability to withstand diverse environmental conditions and provide long-lasting protection has led to widespread adoption in critical infrastructure projects. Let's examine how different sectors are leveraging 3PE coating to enhance their operations:
Oil and Gas: Safeguarding Global Energy Infrastructure
In the oil and gas industry, 3PE coating steel pipe has become a standard for protecting pipelines that transport crude oil, natural gas, and refined products. These pipelines often traverse challenging terrains and face harsh environmental conditions, from desert heat to arctic cold. The superior corrosion resistance and mechanical strength of 3PE coated pipes ensure the integrity of these vital energy arteries.
For offshore oil and gas projects, 3PE coating provides crucial protection against the corrosive effects of seawater and marine organisms. The coating's resistance to cathodic disbondment is particularly valuable in subsea applications where impressed current cathodic protection systems are commonly used. This technology has played a significant role in enabling the development of deep-water oil and gas fields, where pipeline reliability is paramount.
Water Supply: Ensuring Clean, Reliable Distribution
Municipal water authorities and utility companies increasingly rely on 3PE coated pipes for their water distribution networks. The coating's excellent resistance to soil-borne corrosion and its ability to prevent leaching of contaminants make it ideal for preserving water quality. In areas with aggressive soil conditions or high groundwater tables, 3PE coating significantly extends the lifespan of water mains.
The smooth surface of the polyethylene outer layer reduces friction losses in the pipeline, improving flow efficiency. This characteristic is particularly beneficial in long-distance water transmission lines. Additionally, the coating's durability minimizes the risk of water loss through leaks, contributing to conservation efforts in water-scarce regions.
Offshore Platforms: Combating Harsh Marine Environments
Offshore platforms represent one of the most challenging environments for pipeline systems. The combination of saltwater, extreme temperatures, and high-pressure conditions demands exceptional corrosion protection. 3PE coating rises to this challenge, providing a robust shield against the corrosive marine atmosphere and seawater immersion.
On offshore platforms, 3PE coating steel pipes are used for various applications, including fire water systems, cooling water lines, and produced water disposal pipelines. The coating's resistance to thermal cycling and its ability to withstand the mechanical stresses associated with platform movement make it an ideal choice for these critical systems. By ensuring the longevity and reliability of platform piping, 3PE coating contributes to the overall safety and efficiency of offshore operations.
3PE coating technology has revolutionized pipeline protection across various industries. Its unique three-layer structure offers unparalleled corrosion resistance, mechanical strength, and longevity. From safeguarding global energy infrastructure to ensuring clean water distribution, 3PE coating steel pipes have proven their worth in the most demanding applications. As industries continue to seek reliable, cost-effective solutions for their pipeline needs, 3PE coating stands out as a testament to innovation in material science and engineering.
Buy 3PE Coating Pipe
For high-quality 3PE coating steel pipes, look no further than Hebei Longma Group. Our advanced production equipment, imported from Germany and complemented by our independently developed technologies, ensures top-notch product quality. With a professional team of over 300 employees, including 60+ technical experts, we deliver innovative solutions tailored to your needs. Our comprehensive testing facilities, featuring ultrasonic flaw detectors and industrial X-ray equipment, guarantee the integrity of every pipe. We pride ourselves on fast delivery, with standard thickness pipes ready in as little as several days. Backed by complete certifications including API 5L and ISO standards, we offer competitive pricing thanks to our integrated production model and strong supplier relationships. For more information about our 3PE coating pipes, contact us at info@longma-group.com.
