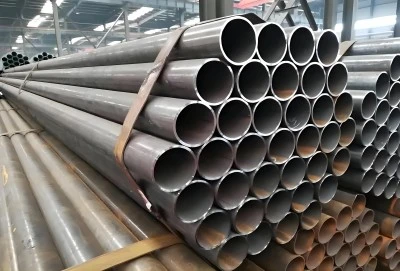

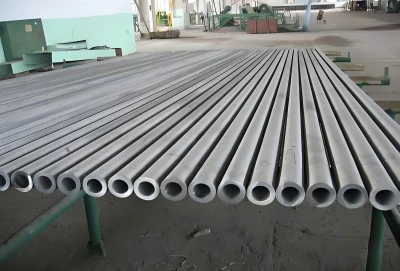

In the world of steel tubing, ASTM A513 is a crucial standard that defines the specifications for electric-resistance-welded carbon and alloy steel mechanical tubing. This blog post will delve into the details of ASTM A513 tubing, exploring its key specifications, different types, and manufacturing process. Whether you're an engineer, manufacturer, or simply curious about steel tubing standards, this comprehensive guide will provide valuable insights into the world of ASTM A513 tubes.
|
|
|
What are the Key Specifications of ASTM A513 Tubing?
ASTM A513 tubing is known for its versatility and wide range of applications in various industries. The key specifications of ASTM A513 tubes are designed to ensure consistent quality and performance across different manufacturing processes and end-uses. Let's explore the primary specifications that define ASTM A513 tubing:
Chemical Composition
The chemical composition of ASTM A513 tubes varies depending on the specific grade. Common grades include 1010, 1015, and 1020 carbon steel. Each grade has its own unique chemical makeup, which influences the tube's mechanical properties and performance characteristics. For example:
- Grade 1010: Contains 0.08-0.13% carbon, 0.30-0.60% manganese, and up to 0.04% phosphorus and 0.05% sulfur
- Grade 1015: Contains 0.12-0.18% carbon, 0.30-0.60% manganese, and up to 0.04% phosphorus and 0.05% sulfur
- Grade 1020: Contains 0.18-0.23% carbon, 0.30-0.60% manganese, and up to 0.04% phosphorus and 0.05% sulfur
The specific chemical composition affects properties such as strength, ductility, and weldability, making certain grades more suitable for particular applications.
Dimensional Tolerances
ASTM A513 tubes are manufactured to tight dimensional tolerances to ensure consistency and reliability in various applications. These tolerances cover aspects such as:
- Outside Diameter (OD): Typically ranges from 21.3mm to 406.4mm, with specific tolerances depending on the size
- Wall Thickness: Options from SCH10 to SCHXXS, with tolerances based on the nominal thickness
- Length: Cut-to-length or random lengths, with specified tolerances for each option
- Straightness: Maximum deviation allowed over a given length
These precise dimensional tolerances are critical for ensuring proper fit and function in various assemblies and applications.
Mechanical Properties
ASTM A513 tubing is characterized by specific mechanical properties that determine its performance in different applications. Key mechanical properties include:
- Tensile Strength: Minimum requirements vary by grade, typically ranging from 330 MPa to 415 MPa
- Yield Strength: Minimum requirements also vary by grade, usually between 205 MPa and 290 MPa
- Elongation: Minimum elongation percentages are specified to ensure adequate ductility
- Hardness: Brinell or Rockwell hardness values may be specified for certain applications
These mechanical properties are crucial for determining the tube's suitability for specific load-bearing and structural applications.
What are the Different Types of ASTM A513 Tubing?
ASTM A513 tubing encompasses various types, each designed to meet specific requirements and applications. Understanding these types is essential for selecting the right tubing for your project. Let's explore the main categories of ASTM A513 tubes:
Type 1 - Hot-Rolled Electric-Resistance-Welded Tubing
Type 1 ASTM A513 tubing is produced using hot-rolled steel strip or sheet. The manufacturing process involves:
- Forming the hot-rolled material into a tubular shape
- Welding the seam using electric resistance welding
- Sizing the tube to achieve the desired dimensions
This type of tubing is known for its good formability and is often used in applications where tight bends or forming operations are required.
Type 2 - Cold-Drawn Electric-Resistance-Welded Tubing
Type 2 ASTM A513 tubing starts as Type 1 tubing but undergoes additional processing:
- The Type 1 tube is cold-drawn through a die
- This process reduces the diameter and wall thickness
- Cold drawing also improves the surface finish and dimensional accuracy
Type 2 tubing offers enhanced mechanical properties and a smoother surface finish, making it suitable for applications requiring tighter tolerances and improved strength.
Type 3 - Normalized Electric-Resistance-Welded Tubing
Type 3 ASTM A513 tubing undergoes a normalization heat treatment process:
- The tubing is heated to a specific temperature above its critical range
- It is then allowed to cool in still air
- This process refines the grain structure and improves the mechanical properties
Normalized tubing offers improved uniformity in microstructure and mechanical properties, making it ideal for applications requiring consistent performance across the entire tube length.
Type 4 - Stress-Relieved Electric-Resistance-Welded Tubing
Type 4 ASTM A513 tubing undergoes a stress-relief heat treatment:
- The tubing is heated to a temperature below its critical range
- It is held at this temperature for a specified time
- The tube is then cooled under controlled conditions
This process helps reduce internal stresses caused by welding and forming, resulting in improved dimensional stability and reduced risk of stress-induced failures.
Type 5 - Fully Annealed Electric-Resistance-Welded Tubing
Type 5 ASTM A513 tubing is subjected to a full annealing heat treatment:
- The tubing is heated to a temperature above its critical range
- It is held at this temperature for a specified time
- The tube is then cooled slowly, often in a controlled furnace environment
Fully annealed tubing offers maximum ductility and formability, making it ideal for applications requiring extensive forming or bending operations.
How is ASTM A513 Tubing Manufactured?
The manufacturing process for ASTM A513 tubing involves several key steps, each crucial to ensuring the final product meets the required specifications and quality standards. Let's explore the typical manufacturing process for ASTM A513 tubes:
1. Raw Material Selection
The process begins with the careful selection of raw materials:
- High-quality steel strip or coil is chosen based on the required chemical composition
- The steel is typically sourced from reputable suppliers to ensure consistency and quality
- Material certifications are verified to confirm compliance with ASTM A513 standards
This initial step is critical in determining the final properties of the ASTM A513 tube.
2. Coil Preparation
Once the raw material is selected, it undergoes preparation for the tube-forming process:
- The steel coil is uncoiled and inspected for any surface defects
- If necessary, the edges of the strip are trimmed to ensure uniform width
- The strip may be cleaned to remove any oils or contaminants
Proper coil preparation ensures smooth operation in subsequent manufacturing steps.
3. Tube Forming
The prepared steel strip is then formed into a tubular shape:
- The strip passes through a series of forming rolls
- These rolls gradually bend the strip into a circular or desired profile
- The edges of the strip are brought together to form the tube seam
The forming process requires precise control to achieve the desired tube dimensions and shape.
4. Electric Resistance Welding
Once formed, the tube undergoes the critical welding process:
- The edges of the formed tube are heated using electric current
- Pressure is applied to forge the heated edges together
- This creates a continuous welded seam along the length of the tube
The electric resistance welding process ensures a strong, uniform seam without the need for filler material.
5. Post-Weld Heat Treatment (if applicable)
Depending on the specific type of ASTM A513 tubing being produced, various heat treatments may be applied:
- Normalization for Type 3 tubing
- Stress relief for Type 4 tubing
- Full annealing for Type 5 tubing
These heat treatments modify the microstructure and properties of the tubing to meet specific requirements.
6. Sizing and Straightening
After welding and any necessary heat treatment, the tubing is sized and straightened:
- The tube passes through sizing rolls to achieve the final desired dimensions
- Straightening machines remove any residual curvature from the forming process
- These steps ensure the tubing meets the tight dimensional tolerances specified by ASTM A513
Precise sizing and straightening are crucial for maintaining consistent quality across the entire production run.
7. Non-Destructive Testing
Quality control is a critical aspect of ASTM A513 tube manufacturing:
- Eddy current testing is often used to detect any weld defects or imperfections
- Ultrasonic testing may be employed for thicker-walled tubes
- Visual inspections are conducted to check for surface defects or inconsistencies
These non-destructive testing methods ensure the integrity and reliability of the finished ASTM A513 tubes.
8. Cutting and Finishing
The final steps in the manufacturing process involve:
- Cutting the tubing to the required lengths
- Deburring the cut ends to remove any sharp edges
- Applying any specified surface treatments or coatings
- Marking the tubes with relevant product information
These finishing steps prepare the ASTM A513 tubes for packaging and shipment to customers.
Contact Information
ASTM A513 tubing plays a crucial role in various industries, offering a wide range of options to meet diverse application requirements. From its key specifications and different types to the intricate manufacturing process, understanding A513 tubes is essential for engineers, manufacturers, and users alike.
