In the world of industrial piping and construction, understanding the specifications and properties of materials is crucial for ensuring safety, durability, and performance. One such material that plays a significant role in various applications is ASTM A671 GR CC60 CL 22. This blog post will delve into the details of this material, exploring its composition, characteristics, and applications to provide you with a comprehensive understanding of its importance in the industry.
|
|
|
ASTM A671 and Its Grades

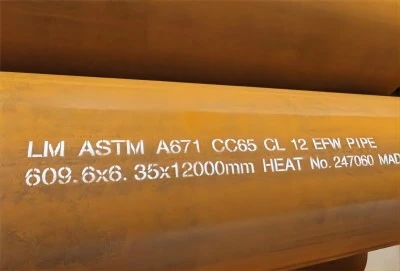

ASTM A671 is a standard specification for electric-fusion-welded steel pipe for atmospheric and lower temperatures. This specification covers various grades of pipe, including Grade CC60, which we'll focus on in this article. The "CC" in CC60 stands for "carbon content," indicating that this grade is made from carbon steel.

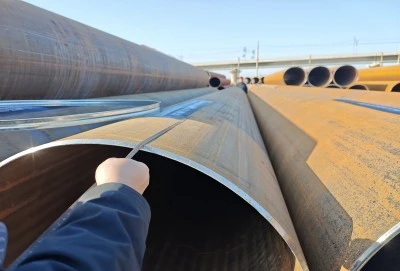

The ASTM A671 specification is quite comprehensive in terms of the physical dimensions it covers. The pipes available under this standard have nominal sizes that range from NPS 16 to NPS 150, which is equivalent to DN 400 to DN 3800 in the metric system. This wide range of sizes caters to the diverse needs of different industrial applications. For example, in large-scale oil and gas pipeline projects that involve the transportation of large volumes of hydrocarbons over long distances, larger-diameter pipes such as those with NPS 150 (DN 3800), are used. These large-diameter pipes can handle high-volume flow rates efficiently. On the other hand, in some petrochemical plant processes where the flow requirements are more moderate, smaller-diameter pipes like NPS 16 (DN 400) may be sufficient. Additionally, the wall thicknesses of ASTM A671 pipes can reach up to 3 inches (75 mm). The variation in wall thickness allows for customization based on the specific pressure and load requirements of each application. Thicker-walled pipes are typically used in situations where higher pressures or more severe mechanical stresses are expected, providing an added layer of protection against potential failures due to excessive stress.
What Does GR CC60 CL 22 Mean in ASTM A671 Specifications?
To fully understand the ASTM A671 GR CC60 CL 22 material, let's break down each component of its designation:
- GR CC60: This refers to the grade of the material. In this case, CC60 indicates a specific carbon content and strength level.
- CL 22: The "CL" stands for "Class," and the number 22 represents a specific set of requirements for the pipe's manufacturing process and testing.
Class 22 pipes are double submerged-arc welded (DSAW) and require 100% radiographic examination of the weld seam. This class also specifies that the pipe must undergo heat treatment after welding to ensure optimal mechanical properties.
The combination of Grade CC60 and Class 22 indicates a high-quality pipe suitable for demanding applications where strength and reliability are paramount.
Chemical and Mechanical Composition of A671 GR CC60 CL 22
The ASTM A671 GR CC60 CL 22 material has specific chemical and mechanical properties that contribute to its performance and suitability for various applications. Let's examine these characteristics in detail:
1.Chemical Composition
The chemical composition of ASTM A671 GR CC60 CL 22 is carefully controlled to achieve the desired properties. While exact percentages may vary slightly depending on the manufacturer, the typical chemical composition includes:
- Carbon (C): 0.18% max
- Manganese (Mn): 0.90-1.35%
- Phosphorus (P): 0.035% max
- Sulfur (S): 0.035% max
- Silicon (Si): 0.15-0.40%
This balanced composition ensures that the material has the right combination of strength, ductility, and weldability required for its intended applications.
2.Mechanical Properties
The mechanical properties of ASTM A671 GR CC60 CL 22 are crucial for its performance in various industrial settings. Some key mechanical properties include:
- Tensile Strength: 60,000 psi (415 MPa) minimum
- Yield Strength: 30,000 psi (205 MPa) minimum
- Elongation in 2 inches: 22% minimum
These properties ensure that the pipe can withstand high pressures and temperatures while maintaining its structural integrity. The combination of strength and ductility makes ASTM A671 GR CC60 CL 22 pipes suitable for a wide range of applications.
3.Heat Treatment
As mentioned earlier, Class 22 pipes undergo heat treatment after welding. This process, typically involving normalization or stress relieving, helps to:
- Reduce residual stresses from the welding process
- Improve the material's microstructure
- Enhance overall mechanical properties
- Increase resistance to brittle fracture
The heat treatment process is crucial in ensuring the long-term reliability and performance of ASTM A671 pipes in demanding industrial environments.
Applications of ASTM A671 GR CC60 CL 22 Pipes
ASTM A671 GR CC60 CL 22 pipes find applications in various industries due to their excellent combination of strength, durability, and reliability. Some common applications include:
- Oil and Gas Industry: These pipes are used in pipelines for transporting crude oil, natural gas, and refined products. Their ability to withstand high pressures and corrosive environments makes them ideal for this purpose.
- Petrochemical Plants: In petrochemical facilities, ASTM A671 pipes are used for process piping, handling various chemicals and gases under controlled conditions.
- Power Generation: These pipes play a crucial role in power plants, especially in steam lines and cooling systems where reliability is paramount.
- Water Treatment Facilities: The corrosion resistance and durability of these pipes make them suitable for use in water treatment and distribution systems.
- Industrial Process Piping: Various manufacturing and processing industries use ASTM A671 pipes for their process piping needs, especially in applications involving high temperatures or pressures.
The versatility of ASTM A671 GR CC60 CL 22 pipes makes them a popular choice across these industries, where safety, reliability, and long-term performance are critical factors.
Contact us
ASTM A671 GR CC60 CL 22 material represents a high-quality, reliable option for industrial piping applications. Its carefully controlled chemical composition, excellent mechanical properties, and rigorous manufacturing and testing processes ensure that it meets the demanding requirements of various industries.
Understanding the specifications and characteristics of materials like ASTM A671 GR CC60 CL 22 is crucial for engineers, project managers, and procurement specialists working in industries that rely on high-performance piping systems. By choosing the right materials, you can ensure the safety, efficiency, and longevity of your industrial projects.
If you're looking for high-quality ASTM A671 pipes or need expert advice on selecting the right materials for your project, don't hesitate to reach out to us at Longma Group. Our team of specialists is ready to assist you in finding the perfect piping solutions for your specific needs. Contact us today at info@longma-group.com to learn more about our pipe offerings and how we can support your industrial piping requirements.
