What is EFW piping?

In the world of industrial piping, Electric Fusion Welded (EFW) pipes have emerged as a crucial component, offering strength, reliability, and versatility across various applications. This article delves into the intricacies of EFW piping, exploring its manufacturing process, common applications, and the stringent standards that ensure its quality and performance.

EFW (Electric Fusion Welded) Pipe Manufacturing

EFW piping, also known as Electric Resistance Welded (ERW) piping, is a type of steel pipe manufactured using an innovative welding technique that employs electrical current to join the pipe seam. This process begins with flat steel strips or coils, which are carefully formed into a cylindrical shape and then welded along the longitudinal seam.

The manufacturing process of EFW pipes involves several key steps:

1. Coil Preparation: High-quality steel coils are selected and thoroughly cleaned to remove any surface contaminants.
2. Forming: The steel is fed through a series of rollers that gradually shape it into a tubular form.
3. Welding: As the edges of the formed tube come together, high-frequency electrical current is applied, generating heat that fuses the seam.
4. Cooling and Sizing: The welded pipe is rapidly cooled and passed through sizing rolls to achieve the desired dimensions.
5. Heat Treatment: Depending on the intended application, the pipe may undergo heat treatment to enhance its mechanical properties.
6. Quality Control: Rigorous testing and inspection procedures are implemented to ensure the pipe meets industry standards.

This efficient manufacturing process allows for the production of EFW pipes in various sizes, typically ranging from 8 to 24 inches in diameter, with wall thicknesses up to 0.5 inches. The controlled welding process results in a strong, uniform seam that is often indistinguishable from the rest of the pipe wall.

One of the key advantages of EFW piping is its cost-effectiveness compared to seamless pipes, particularly for larger diameter applications. The continuous production process also allows for higher manufacturing speeds, contributing to increased productivity and shorter lead times.

Common Applications of EFW Piping in Industry

The versatility and reliability of EFW piping have led to its widespread adoption across numerous industries. Some of the most common applications include:

1. Oil and Gas Transportation: EFW pipes are extensively used in the construction of pipelines for transporting crude oil, natural gas, and refined petroleum products over long distances.
2. Water Distribution: Municipal water supply systems often utilize EFW pipes for their durability and resistance to corrosion when properly coated.
3. Construction: In the building industry, EFW pipes are employed for structural purposes, such as piling and foundation support.
4. Industrial Process Piping: Many manufacturing facilities rely on EFW pipes for conveying various fluids and gases in their production processes.
5. Automotive Industry: EFW pipes find applications in exhaust systems and structural components of vehicles.
6. Agriculture: Irrigation systems and farm equipment often incorporate EFW piping for its strength and cost-effectiveness.

The wide range of applications for EFW piping is a testament to its versatility and reliability. Its ability to withstand high pressures and temperatures, coupled with excellent corrosion resistance when properly treated, makes it an ideal choice for many industrial and infrastructure projects.

Strength and Testing Standards for EFW Pipes

To ensure the quality and performance of EFW pipes, manufacturers adhere to strict industry standards and conduct rigorous testing procedures. These standards typically cover aspects such as material composition, dimensional tolerances, mechanical properties, and weld integrity.

Some of the key standards governing EFW pipe production and testing include:

• API 5L: Specification for Line Pipe
• ASTM A53: Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
• ASTM A135: Standard Specification for Electric-Resistance-Welded Steel Pipe
• EN 10217: Welded steel tubes for pressure purposes

Testing procedures for EFW pipes are comprehensive and may include:

1. Hydrostatic Testing: Pipes are pressurized with water to verify their ability to withstand operational pressures without leakage.
2. Non-Destructive Testing (NDT): Techniques such as ultrasonic testing, eddy current testing, and magnetic particle inspection are used to detect any flaws in the pipe wall or weld seam.
3. Mechanical Testing: Samples undergo tensile strength, yield strength, and elongation tests to ensure they meet specified mechanical properties.
4. Chemical Analysis: The composition of the steel is verified to ensure it meets the required specifications.

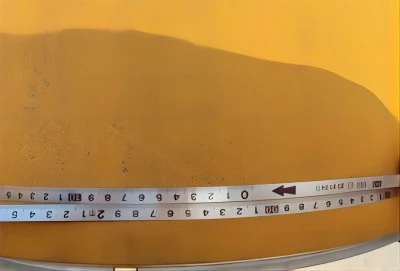

5. Dimensional Inspection: Pipes are measured to confirm they meet the specified diameter, wall thickness, and straightness tolerances.

These rigorous testing procedures ensure that EFW pipes meet or exceed the strength and quality requirements for their intended applications. The combination of advanced manufacturing techniques and stringent quality control measures results in EFW pipes that offer excellent performance and reliability in a wide range of industrial settings.

About Longma Group

EFW pipe has established itself as a vital component in numerous industries, offering a balance of strength, versatility, and cost-effectiveness. From oil and gas transportation to water distribution and industrial processes, EFW pipes continue to play a crucial role in modern infrastructure and manufacturing.

As technology advances and industry demands evolve, EFW pipe manufacturers are continuously improving their processes and products to meet the growing needs of various sectors. The stringent standards and testing procedures ensure that EFW pipes maintain their high quality and reliability, making them a preferred choice for many applications.

For those seeking high-quality EFW piping solutions, Longma Group stands out as a leading manufacturer in China. With a specialization in large-diameter, thick-walled, double-sided, sub-arc-seam welding steel pipes, including LSAW (Longitudinal Submerged Arc Welded) and ERW steel pipes, Longma Group has established itself as a reliable partner in the industry. By the end of 2023, the company's annual output exceeded an impressive 1,000,000 tons, demonstrating their significant production capacity and commitment to meeting global demand. For more information or to discuss your pipes needs, please don't hesitate to contact Longma Group at info@longma-group.com.
