The allowable stress for API 5L X70 pipe is determined through careful engineering calculations based on the material's mechanical properties and applicable design codes. For X70 grade pipe, with a specified minimum yield strength (SMYS) of 70,000 psi (483 MPa), the allowable stress typically ranges from 35,000 to 42,000 psi (241-290 MPa) depending on the specific application and governing code requirements. This value incorporates appropriate safety factors to ensure safe operation under design conditions. The allowable stress serves as a fundamental parameter in pipeline design, influencing critical decisions about wall thickness, operating pressure, and overall system configuration.
Introduction To API 5L X70 Pipe

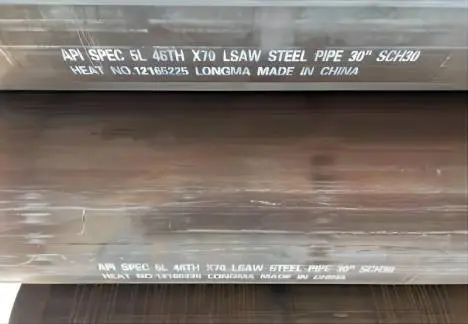

API 5L X70 pipe represents a high-strength grade within the API 5L specification, engineered specifically for demanding pipeline applications. The material combines excellent mechanical properties with good weldability and toughness characteristics, making it particularly suitable for high-pressure transmission systems. The X70 designation indicates a minimum yield strength of 483 MPa (70,000 psi), achieved through careful control of chemical composition and thermomechanical processing during manufacture. This grade has become increasingly popular in modern pipeline construction due to its optimal balance of strength, fabricability, and cost-effectiveness.
Understanding the allowable stress for X70 pipe proves crucial for ensuring safe and reliable pipeline operation. The allowable stress value influences numerous aspects of pipeline design and operation, including pressure containment capabilities, structural stability under various loading conditions, and long-term integrity management strategies. Engineers must carefully consider these stress limitations when developing pipeline systems to ensure compliance with regulatory requirements while optimizing system performance and economic efficiency.
The evolution of X70 grade pipe reflects significant advances in steel manufacturing technology and pipeline engineering practices. Modern production techniques enable consistent achievement of required mechanical properties while maintaining excellent field construction characteristics. This combination of attributes has established X70 as a preferred material choice for major pipeline projects worldwide, particularly where high operating pressures or challenging environmental conditions necessitate superior material performance.
Allowable Stress Calculation
The calculation of allowable stress for API 5L X70 pipe involves multiple factors and considerations. The basic methodology typically begins with the specified minimum yield strength (SMYS) of 483 MPa, applying appropriate safety factors to account for various operational and environmental conditions. Design codes commonly specify safety factors ranging from 0.67 to 0.72 of SMYS for basic allowable stress calculations. These factors reflect accumulated industry experience and engineering judgment regarding safe operating margins.
Temperature derating factors may modify the basic allowable stress value when operating temperatures exceed normal ambient conditions. The temperature effects on material properties require careful consideration, particularly in high-temperature service environments. Additional modification factors may apply based on specific application requirements, service conditions, or regulatory constraints. The final allowable stress value must ensure adequate safety margins while enabling practical and efficient system design.
The mathematical expression for calculating allowable stress typically follows the format: Allowable Stress = SMYS × Design Factor × Temperature Derating Factor × Other Applicable Factors. This calculation framework provides a systematic approach to determining appropriate stress limits while incorporating relevant safety considerations. The specific factors and their values may vary depending on the governing design code and particular application requirements.
Design Considerations
Allowable stress values significantly influence pipeline design decisions and system configurations. Wall thickness calculations represent a primary application of allowable stress data, determining the minimum material requirements for safe pressure containment. The relationship between allowable stress, design pressure, pipe diameter, and wall thickness follows established engineering principles, typically expressed through the pipe stress formula derived from mechanics of materials theory.
System designers must consider additional loading conditions beyond internal pressure when applying allowable stress criteria. External loads, thermal stresses, and installation forces can contribute to the overall stress state in the pipeline. The combined effects of these various loading conditions must remain within acceptable limits based on the established allowable stress values. Modern design practices often employ sophisticated analysis tools to evaluate complex loading scenarios and verify compliance with stress limitations.
Material selection and specification decisions frequently depend on allowable stress considerations. The choice between different pipe grades or wall thickness options often involves optimizing the balance between material costs, installation requirements, and operational capabilities while maintaining compliance with allowable stress limitations. This optimization process requires careful evaluation of various technical and economic factors to achieve the most effective design solution.
Industry Standards And Regulations
Multiple industry standards and regulatory documents govern the determination and application of allowable stress values for API 5L X70 pipe. The ASME B31 series of pressure piping codes provides comprehensive guidelines for calculating and applying allowable stress in various service environments. These codes establish fundamental principles for safe design while incorporating lessons learned from industry experience and technological advances.
Regulatory requirements may impose additional constraints or modifications to standard allowable stress calculations. Pipeline safety regulations often specify minimum design factors or maximum operating pressure limitations based on population density, location classification, or environmental considerations. Compliance with these regulatory requirements necessitates careful attention to allowable stress determination and application in pipeline design and operation.
Quality assurance programs play an essential role in ensuring that manufactured pipe meets the mechanical property requirements underlying allowable stress calculations. Regular testing and verification of material properties, along with comprehensive documentation requirements, help maintain the integrity of the allowable stress basis for pipeline systems. These quality control measures represent crucial elements in the overall framework for safe pipeline design and operation.
X70 Pipe Supplier
LONGMA GROUP manufactures API 5L X70 pipe to stringent quality standards, ensuring consistent mechanical properties that support reliable allowable stress calculations. The company's production facilities maintain comprehensive quality control programs, including regular testing and verification of material properties. Both PSL1 and PSL2 quality levels are available to meet varying project requirements and specifications.
Technical support services assist customers in understanding and applying allowable stress criteria for their specific applications. Interested parties seeking detailed information about X70 pipe specifications and availability can contact the sales team at info@longma-group.com for professional assistance in selecting appropriate pipe products for their projects.
