When it comes to choosing the right piping material for your project, it's crucial to understand the differences between various options. Two popular choices in the industry are 3PE anti-corrosion steel pipes and ductile iron pipes. In this article, we'll explore the key differences between these two materials, focusing on their composition, impact resistance, and anti-corrosion performance. By the end, you'll have a clearer understanding of which option might be best suited for your specific needs.
|
|
|
Material Composition: Strength And Durability

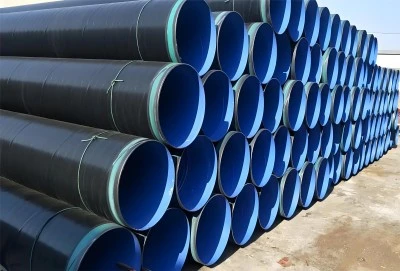

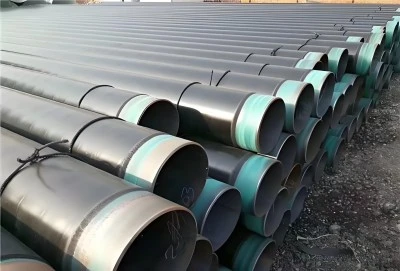

Let's start by examining the material composition of both 3PE pipes and ductile iron pipes. 3PE pipes, also known as three-layer polyethylene coated steel pipes, consist of a steel core with three layers of protective coating. The steel core provides excellent strength and durability, while the three-layer coating system offers superior protection against corrosion and external damage.
On the other hand, ductile iron pipes are made from an alloy of iron, carbon, and silicon. This composition results in a material that's stronger and more flexible than traditional cast iron. Ductile iron pipes have been a popular choice in the water and wastewater industry for many years due to their durability and relatively low cost.
While both materials offer strength and durability, 3PE pipes have an edge when it comes to weight. The steel core of 3PE pipes is typically lighter than ductile iron, making transportation and installation easier and more cost-effective. This weight difference can be particularly advantageous in large-scale projects or in areas with challenging terrain.
Impact Resistance: Standing Up To Pressure
When it comes to impact resistance, both 3PE pipes and ductile iron pipes have their strengths. 3PE pipes, with their steel core and protective coating, offer excellent resistance to impact and external pressures. The polyethylene coating provides an additional layer of protection, helping to absorb shocks and prevent damage to the steel core.
Ductile iron pipes, true to their name, are known for their ductility - the ability to deform under stress without breaking. This property makes them resistant to cracking and bursting under pressure. However, it's worth noting that while ductile iron pipes can withstand significant pressure, they may be more susceptible to external damage compared to 3PE pipes.
In terms of brittleness, 3PE pipes have a clear advantage. The combination of the steel core and the flexible polyethylene coating results in a pipe that's less likely to crack or shatter under stress. Ductile iron pipes, while more flexible than traditional cast iron, can still be prone to brittle fracture under certain conditions, especially in colder temperatures.
For projects in areas with high seismic activity or those subject to ground movement, the flexibility and impact resistance of 3PE pipes can be particularly beneficial. The pipes can better accommodate ground shifts without compromising their structural integrity.
Anti-Corrosion Performance: Long-Term Protection
When it comes to anti-corrosion performance, 3PE pipes truly shine. The three-layer polyethylene coating system provides exceptional protection against corrosion, making these pipes ideal for use in harsh environments or corrosive soils. The layers typically consist of an epoxy primer, an adhesive middle layer, and an outer layer of polyethylene. This combination creates a robust barrier against moisture, chemicals, and other corrosive elements.
Ductile iron pipes, while more resistant to corrosion than traditional cast iron, still require additional protection in corrosive environments. They are often coated with cement mortar or polyethylene encasement to enhance their corrosion resistance. However, these protective measures may not be as comprehensive or long-lasting as the three-layer system used in 3PE pipes.
The superior anti-corrosion properties of 3PE pipes translate to a longer service life and reduced maintenance costs over time. While the initial cost of 3PE pipes may be higher than ductile iron pipes, the long-term savings in maintenance and replacement costs can make them a more economical choice in the long run, especially in challenging environments.
It's worth noting that the anti-corrosion performance of 3PE pipes also contributes to better water quality in applications such as water distribution systems. The inert nature of the polyethylene coating means there's less risk of contamination from pipe corrosion, ensuring cleaner, safer water delivery.
Wholesale 3PE Pipe Manufacturers
While both 3PE anti-corrosion steel pipes and ductile iron pipes are widely utilized across various industries, 3PE pipes offer distinct advantages that make them an exceptional choice in challenging environments. The three-layer polyethylene (3PE) coating system—comprising an epoxy primer, an adhesive layer, and a polyethylene topcoat—provides outstanding protection against moisture, chemicals, and physical damage. This advanced coating technology makes 3PE pipes highly resistant to corrosion, ensuring a longer service life even in harsh conditions such as underground or marine environments. Additionally, their excellent impact resistance ensures durability during handling and installation, while their lighter weight simplifies transportation and reduces labor costs.
On the other hand, ductile iron pipes are well-known for their strength and rigidity, making them suitable for certain municipal applications or high-pressure systems. Therefore, the choice between 3PE pipes and ductile iron pipes ultimately depends on the specific needs of your project. Factors such as the installation environment, budget constraints, expected service life, and maintenance requirements should all be carefully assessed to make an informed decision.
