When it comes to industrial piping systems, choosing the right material is crucial for ensuring safety, efficiency, and longevity. Two commonly used standards in the industry are ASTM A333 and ASTM A671. While both are used for pipe manufacturing, they have distinct characteristics and applications. In this comprehensive guide, we'll explore the key differences between A333 and A671, focusing on their chemical compositions, mechanical properties, and performance in various applications.
|
|
|
How do the chemical compositions of A333 and A671 differ?
The chemical composition of a pipe material plays a significant role in determining its properties and performance. Let's examine how A333 and A671 differ in this aspect:
ASTM A333:
ASTM A333 is a standard specification for seamless and welded steel pipe for low-temperature service and other applications requiring notch toughness. The chemical composition of A333 varies depending on the grade, but generally includes:
- Carbon: 0.30% max
- Manganese: 0.40-1.06%
- Phosphorus: 0.025% max
- Sulfur: 0.025% max
- Silicon: 0.10-0.50%
- Nickel: Up to 3.5% (for some grades)
ASTM A671:
ASTM A671 covers electric-fusion-welded steel pipe for atmospheric and lower temperatures. The chemical composition of A671 pipes depends on the grade but typically includes:
- Carbon: 0.12-0.31% (varies by grade)
- Manganese: 0.29-1.06%
- Phosphorus: 0.035% max
- Sulfur: 0.035% max
- Silicon: 0.15-0.40%
The key difference in chemical composition lies in the carbon content and the presence of nickel in some A333 grades. A333 pipes generally have a higher carbon content, which contributes to their strength and toughness at low temperatures. The addition of nickel in certain A333 grades further enhances their low-temperature performance.
On the other hand, A671 pipes have a wider range of carbon content depending on the grade, allowing for more versatility in applications. The absence of nickel in A671 pipes makes them more suitable for general-purpose use where extreme low-temperature performance is not required.
What are the mechanical property differences between A333 and A671?
The mechanical properties of pipes are crucial in determining their suitability for specific applications. Let's compare the mechanical properties of A333 and A671 pipes:
ASTM A333:
- Tensile Strength: 415-585 MPa (60-85 ksi), depending on the grade
- Yield Strength: 205-415 MPa (30-60 ksi), depending on the grade
- Elongation: 16-30% minimum in 50 mm (2 inches)
- Impact Test: Required at specified low temperatures
ASTM A671:
- Tensile Strength: 415-585 MPa (60-85 ksi), depending on the grade
- Yield Strength: 205-415 MPa (30-60 ksi), depending on the grade
- Elongation: 16-22% minimum in 50 mm (2 inches)
- Impact Test: Not always required, depends on the class
While the tensile and yield strength ranges are similar for both standards, there are notable differences:
- Low-Temperature Performance: A333 pipes are specifically designed for low-temperature service and are required to undergo impact testing at specified low temperatures. This ensures their toughness and reliability in cryogenic applications. A671 pipes, while suitable for lower temperatures, may not have the same level of guaranteed low-temperature performance across all grades.
- Elongation: A333 pipes generally have higher elongation requirements, indicating better ductility and formability. This can be advantageous in applications where the pipe may be subjected to bending or forming operations.
- Impact Testing: While impact testing is mandatory for A333 pipes, it's not always required for A671 pipes. The specific requirements depend on the class of A671 pipe being used. This difference reflects the intended use of each standard, with A333 being more focused on low-temperature applications where impact resistance is critical.
These mechanical property differences highlight the specialized nature of A333 pipes for low-temperature service, while A671 pipes offer more flexibility for a range of temperature applications.
How do A333 and A671 compare in terms of application and performance?
The application and performance characteristics of A333 and A671 pipes are influenced by their chemical compositions and mechanical properties. Let's explore how these standards compare in various aspects:
1. Temperature Range:
- A333: Specifically designed for low-temperature service, suitable for temperatures as low as -195°C (-320°F) depending on the grade.
- A671: Suitable for atmospheric and lower temperatures, but not typically used for extreme cryogenic applications.
2. Industry Applications:
- A333: Commonly used in cryogenic processing plants, liquefied natural gas (LNG) facilities, and other low-temperature industrial processes.
- A671: Widely used in general industrial piping, petrochemical plants, and moderate temperature applications.
3. Welding and Fabrication:
- A333: Requires careful welding procedures to maintain low-temperature toughness. Pre-heating and post-weld heat treatment may be necessary for some grades.
- A671: Generally easier to weld and fabricate due to lower carbon content in most grades. Electric-fusion-welding process ensures consistent weld quality.
4. Corrosion Resistance:
- A333: Offers good corrosion resistance, especially in low-temperature environments. Some grades contain nickel, which can enhance corrosion resistance.
- A671: Provides adequate corrosion resistance for many industrial applications but may require additional measures (such as coatings) in highly corrosive environments.
5. Cost and Availability:
- A333: Generally more expensive due to specialized low-temperature properties and additional alloying elements in some grades.
- A671: Often more cost-effective and readily available for general industrial applications.
6. Pressure Ratings:
- A333: Available in various wall thicknesses to accommodate a wide range of pressure requirements in low-temperature services.
- A671: Offers flexibility in pressure ratings, with different classes (such as Class 12, 22, 32, etc.) providing options for various operating pressures.
When choosing between A333 and A671 pipes, it's essential to consider the specific requirements of your application. For extreme low-temperature services or where notch toughness is critical, A333 pipes are the preferred choice. Their specialized composition and rigorous testing ensure reliability in cryogenic environments.
On the other hand, ASTM A671 pipes offer a versatile solution for a wide range of industrial applications. Their electric-fusion-welded construction provides excellent weld quality and consistency, making them suitable for many atmospheric and lower temperature services.

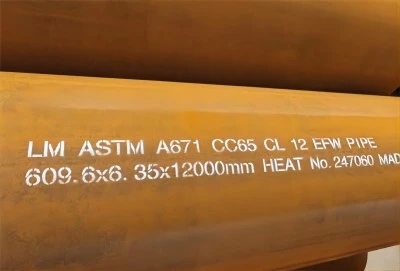

It's worth noting that while A671 pipes are not typically used in extreme cryogenic applications, they can be an excellent choice for moderate low-temperature services. The CC60, CC65, and CC70 grades of A671 pipes, in particular, offer enhanced mechanical properties that make them suitable for many challenging industrial environments.
Contact Information
In conclusion, while both ASTM A333 and A671 standards offer high-quality piping solutions, they serve different purposes in the industrial landscape. A333 excels in low-temperature applications, providing exceptional toughness and reliability in cryogenic environments. A671, with its versatile grades and electric-fusion-welded construction, offers a robust solution for a wide range of industrial applications.
When selecting between these two standards, it's crucial to consider factors such as operating temperature, pressure requirements, corrosion resistance needs, and overall project specifications. By understanding the unique characteristics of each standard, you can make an informed decision that ensures the safety, efficiency, and longevity of your piping system.

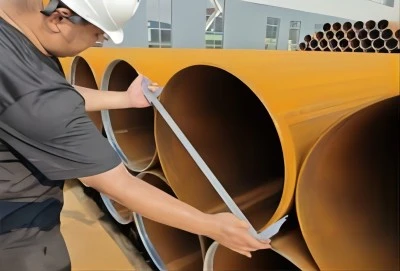

If you're looking for high-quality ASTM A671 pipes for your industrial needs, Longma Group offers a comprehensive range of options. Our CC60, CC65, and CC70 grade pipes are designed to meet the most demanding industrial requirements. With outer diameters ranging from 457.2mm to 1422mm and thicknesses from 7.92mm to 50.8mm, we have the versatility to suit various applications. Whether you're in construction, oil and gas, or any other industry that requires robust piping solutions, Longma has got you covered. Don't miss out on the opportunity to enhance your projects with our top-notch products. Reach out to us today at info@longma-group.com, and let's build a stronger future together.
