Material Strength
When comparing A500 steel tubes and A513 steel tubes, one of the most significant differences lies in their material strength. This difference in strength properties largely determines the applications for which each type of steel tube is best suited.

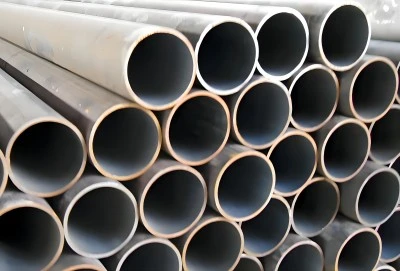

A500 steel tubes are renowned for their high strength characteristics, making them ideal for structural applications that need to withstand substantial loads. The A500 standard covers four distinct grades of steel tubes: A, B, C, and D. Each grade offers progressively higher strength properties, with Grades C and D providing the highest strength levels within the A500 classification.
For instance, Grade B A500 steel tubes, which are commonly used in construction, have a minimum yield strength of 42,000 psi (290 MPa) and a minimum tensile strength of 58,000 psi (400 MPa). These values can be even higher for Grades C and D, with Grade C offering a minimum yield strength of 46,000 psi (317 MPa) and a minimum tensile strength of 62,000 psi (427 MPa).
On the other hand, A513 steel tubes typically have lower strength properties compared to A500 tubes. The A513 standard covers a wide range of steel compositions, each with its own set of mechanical properties. Generally, A513 steel tubes have yield strengths ranging from 25,000 psi (172 MPa) to 55,000 psi (379 MPa), depending on the specific type and heat treatment.
While the strength of A513 steel tubes may be lower than that of A500 tubes, it's important to note that A513 tubes are designed to meet the requirements of mechanical applications rather than structural ones. The strength levels of A513 tubes are more than sufficient for their intended uses, such as in the manufacture of automotive parts, furniture, and various mechanical components.
Manufacturing Process
The manufacturing processes for A500 and A513 steel tubes differ significantly, contributing to their distinct properties and applications.
A500 steel tubes can be produced through two main methods: welded or seamless. The welded process involves forming flat steel strips into a tubular shape and welding the seam. This method is more common due to its cost-effectiveness and ability to produce tubes in various shapes and sizes.
The seamless process for A500 tubes, while less common, involves extruding a solid billet of steel into a hollow tube. This method is often preferred for applications requiring higher pressure resistance or where weld integrity is crucial.
Regardless of whether they are welded or seamless, A500 steel tubes are typically manufactured using a cold forming process. This process involves shaping the steel at room temperature, which work-hardens the material, increasing its yield strength and tensile strength. This cold forming contributes significantly to the high structural strength that A500 tubes are known for.
In contrast, A513 steel tubes are manufactured using an electric resistance welding (ERW) process. This process involves passing an electric current through the edges of a rolled steel strip to heat and fuse them together, forming a welded seam. The ERW process allows for the production of tubes with precise dimensions and smooth surfaces, which is crucial for many mechanical applications.
A513 tubes can be either hot-rolled or cold-rolled. Hot rolling involves shaping the steel at high temperatures, typically above its recrystallization temperature. This process is often used for larger tubes and can produce a scale-free surface. Cold rolling, on the other hand, is performed at room temperature and is used to achieve tighter tolerances and improved surface finish, which is often required in mechanical applications.
The different manufacturing processes for A500 and A513 tubes result in distinct microstructures and properties, further differentiating their applications and performance characteristics.
Size And Shape
The size and shape options available for A500 and A513 steel tubes reflect their intended applications and the manufacturing processes used to produce them.
A500 steel tubes, being primarily used in structural applications such as buildings, bridges, and industrial structures, are available in a wide range of sizes and shapes to meet diverse construction needs. The most common shapes for A500 tubes are round, square, and rectangular.
Round A500 tubes typically range from 1.66 inches (42.2 mm) to 24 inches (609.6 mm) in outside diameter, with wall thicknesses varying from 0.083 inches (2.11 mm) to 0.875 inches (22.23 mm). Square and rectangular A500 tubes are available in sizes ranging from 1 inch x 1 inch (25.4 mm x 25.4 mm) to 20 inches x 20 inches (508 mm x 508 mm), with various wall thicknesses.
The size options for A500 tubes are designed to provide structural engineers and architects with the flexibility to choose the most appropriate dimensions for their specific design requirements. This variety allows for optimized structural efficiency and aesthetics in construction projects.
A513 steel tubes, on the other hand, are more commonly used in mechanical applications such as furniture, sports equipment, and agricultural machinery. While A513 tubes are also available in a variety of sizes and shapes, their size ranges and tolerances may differ from those of A500 tubes.
A513 tubes are typically produced in smaller diameters compared to A500 tubes, with outside diameters ranging from 0.188 inches (4.78 mm) to 5.5 inches (139.7 mm). Wall thicknesses for A513 tubes can vary from 0.016 inches (0.41 mm) to 0.320 inches (8.13 mm), allowing for a wide range of applications in mechanical engineering.
The shapes available for A513 tubes include round, square, rectangular, and special shapes designed for specific applications. The ability to produce A513 tubes in various shapes and with tight tolerances makes them ideal for use in precision mechanical parts and components.
It's worth noting that while both A500 and A513 tubes are available in similar shapes, the sizing conventions and tolerances may differ due to their distinct manufacturing processes and intended applications. Engineers and designers must carefully consider these differences when selecting the appropriate tube for their specific project requirements.

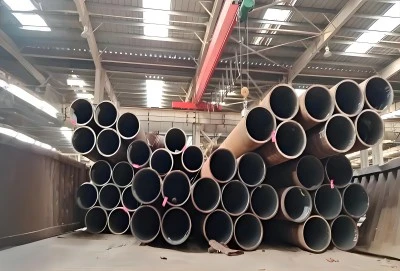

A500 Steel Tube Manufacturer
LONGMA GROUP is a reputable manufacturer of A500 steel tubes, offering high-quality products that meet industry standards and cater to various structural applications. Their A500 steel tubes are available in three grades: A, B, and C, each offering progressively higher strength properties to suit different project requirements.
Grade A is suitable for general structural applications where standard strength is sufficient. Grade B, which is the most commonly used, offers higher strength and is often chosen for more demanding structural roles. Grade C provides the highest strength among the three, making it ideal for applications where maximum load-bearing capacity is crucial.
LONGMA GROUP's commitment to quality and its range of A500 steel tube options make it a reliable choice for construction and engineering projects. Their products are manufactured to meet or exceed the specifications set forth in ASTM A500 standards, ensuring consistency and reliability in structural applications.
For those seeking a dependable A500 steel tube manufacturer, LONGMA GROUP is here to assist you with all your inquiries regarding their products and specifications. Their A500 steel tubes are designed to meet the diverse needs of various construction and engineering projects, ensuring durability and reliability. By reaching out, interested parties can explore how LONGMA GROUP's offerings align with their project goals. Contact their knowledgeable team at info@longma-group.com for detailed information, and expert advice, or to discuss specific project requirements tailored to your needs. Your successful project starts with the right materials.
References
1. American Society for Testing and Materials. (2021). ASTM A500/A500M-21: Standard Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes. West Conshohocken, PA: ASTM International.
2. American Society for Testing and Materials. (2019). ASTM A513/A513M-19: Standard Specification for Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing. West Conshohocken, PA: ASTM International.
3. American Institute of Steel Construction. (2017). Steel Construction Manual, 15th Edition. Chicago, IL: AISC.
4. Steel Tube Institute. (2021). HSS Design Manual. Cambridge, OH: STI.
5. MatWeb, LLC. (2022). ASTM A500 Grade B Steel. MatWeb Material Property Data.
6. MatWeb, LLC. (2022). ASTM A513 Type 5 Steel. MatWeb Material Property Data.
