In the world of steel tubing, ASTM A53 and ASTM A513 are two commonly used specifications that often cause confusion among buyers and engineers. While both are used in various industrial applications, they have distinct characteristics that set them apart. This article will delve into the key differences between A53 and ASTM A513 tubes, exploring their composition, properties, production processes, and performance in different applications.
|
|
|
What are the main differences in composition and properties between A53 and A513?
ASTM A53 and ASTM A513 tubes differ significantly in their chemical composition and mechanical properties, which directly influence their performance and suitability for various applications.
ASTM A53 is a standard specification for pipe used in conveying water, steam, gas, air, and other fluids in plumbing and heating systems, as well as for mechanical and structural applications. It covers seamless and welded black and hot-dipped galvanized steel pipe. The chemical composition of A53 steel typically includes:
- Carbon: 0.25% max
- Manganese: 0.95-1.20%
- Phosphorus: 0.05% max
- Sulfur: 0.045% max

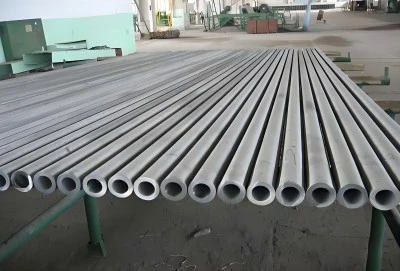

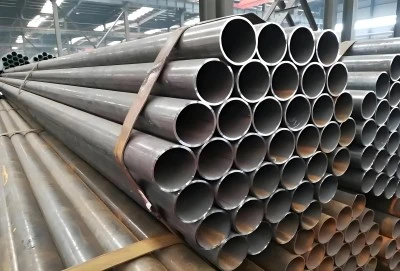

On the other hand, ASTM A513 tube is a specification for electric-resistance-welded carbon and alloy steel mechanical tubing. It covers a wider range of steel grades, including low-carbon, medium-carbon, and alloy steels. The chemical composition of A513 tubes varies depending on the grade but generally includes:
- Carbon: 0.06-0.28%
- Manganese: 0.25-1.35%
- Phosphorus: 0.025% max
- Sulfur: 0.025% max
The mechanical properties of A53 and A513 tubes also differ. A53 pipes are known for their high strength and good weldability, with minimum yield strength of 30,000 psi (205 MPa) and minimum tensile strength of 48,000 psi (330 MPa) for Grade A. ASTM A513 tubes, depending on the grade, can offer a wide range of mechanical properties tailored to specific applications, with yield strengths ranging from 25,000 psi (172 MPa) to over 100,000 psi (690 MPa).
These differences in composition and properties make A53 more suitable for general-purpose piping applications, while A513 tubes are often preferred for precision mechanical applications that require specific strength, ductility, or formability characteristics.
How does the production process vary between A53 and A513 Tubing?
The production processes for A53 and ASTM A513 tubes differ significantly, which contributes to their distinct properties and applications.
ASTM A53 pipes can be produced using two main methods:
- Seamless Process: In this method, a solid round steel billet is heated and then pierced or extruded to create a hollow tube. The tube is then rolled and stretched to achieve the desired diameter and wall thickness. This process results in a pipe with no welded seam, offering high strength and reliability.
- Welded Process: This method involves forming a flat steel strip into a cylindrical shape and welding the seam. The welding can be done using various techniques, including electric resistance welding (ERW) or continuous welding (CW). After welding, the pipe may undergo heat treatment to improve its properties.
ASTM A513 tubes, on the other hand, are exclusively produced using the electric-resistance-welding (ERW) process. This process involves the following steps:
- A flat steel strip is uncoiled and passed through a series of rollers that gradually form it into a tubular shape.
- The edges of the strip are brought together and welded using high-frequency electric current, which heats the edges to welding temperature.
- The welded seam is then cooled rapidly, often using water spray.
- The tube may undergo further processing, such as sizing, straightening, and heat treatment, to achieve the desired dimensions and properties.
The ERW process used for A513 tubes allows for precise control over the tube dimensions and properties, making it ideal for mechanical applications that require tight tolerances. Additionally, the process can produce tubes with thinner walls and larger diameters compared to seamless production methods.
The production process for A53 pipes, particularly the seamless method, generally results in thicker-walled tubes with higher strength, making them suitable for high-pressure applications. The welded A53 pipes, while not as strong as seamless pipes, offer a good balance of strength and cost-effectiveness for many general-purpose applications.
In contrast, the ERW process used for A513 tubes allows for greater flexibility in terms of material grades and dimensional control, making these tubes ideal for applications that require specific mechanical properties or precise dimensions.
How do A53 and A513 Tubes compare in terms of pressure handling and durability?
When it comes to pressure handling and durability, A53 and ASTM A513 tubes have distinct characteristics that make them suitable for different applications.
ASTM A53 pipes are known for their excellent pressure-bearing capabilities. This is particularly true for seamless A53 pipes, which have no welded seam and thus offer uniform strength across the entire circumference of the pipe. A53 pipes are commonly used in applications that involve the transport of fluids under pressure, such as:
- Oil and gas pipelines
- Water distribution systems
- Steam lines in power plants
- Fire protection sprinkler systems
A53 pipes are available in different schedules (wall thicknesses) to accommodate various pressure requirements. For example, Schedule 40 A53 pipes can handle working pressures up to 1,130 psi for water service at room temperature, while Schedule 80 pipes can handle even higher pressures.
In terms of durability, A53 pipes are known for their robustness and long service life. They can withstand a wide range of temperatures and are resistant to corrosion, especially when galvanized. This makes them suitable for both indoor and outdoor applications, and they can be buried underground for utility services.
ASTM A513 tubes, on the other hand, are not primarily designed for high-pressure applications. Instead, they excel in mechanical and structural applications where specific strength, ductility, or formability characteristics are required. Some common applications for A513 tubes include:
- Automotive components (e.g., exhaust systems, drive shafts)
- Furniture frames
- Exercise equipment
- Bicycle frames
- Agricultural machinery
While A513 tubes may not be designed to handle the same high pressures as A53 pipes, they offer excellent durability in their intended applications. The precise control over chemical composition and mechanical properties allows A513 tubes to be tailored for specific durability requirements, such as fatigue resistance or impact strength.
It's worth noting that some grades of A513 tubes can be used in low to moderate pressure applications, particularly in hydraulic and pneumatic systems. However, for high-pressure fluid transport, A53 pipes are generally the preferred choice.
In terms of corrosion resistance, both A53 and A513 can be protected through various methods such as galvanization, painting, or the use of corrosion-resistant alloys. However, A53 pipes, particularly in their galvanized form, are more commonly used in applications where corrosion resistance is a primary concern.
Contact Longma
In conclusion, while both ASTM A53 and A513 tubes are important in the steel industry, they serve different purposes due to their distinct properties and production processes. A53 pipes excel in pressure-bearing applications and general-purpose fluid transport, offering high strength and durability. On the other hand, A513 tubes shine in mechanical and structural applications where precise control over properties and dimensions is crucial.
When choosing between A53 and A513 tubes, it's essential to consider the specific requirements of your application, including pressure handling, dimensional tolerances, mechanical properties, and environmental factors. By understanding the differences between these two specifications, you can make an informed decision that ensures optimal performance and longevity for your project.
