In the world of pipeline engineering, understanding the various types of pipes and their characteristics is crucial for selecting the right solution for specific applications. Two common types of pipes that often come up in discussions are helical pipes and annular pipes. While both serve essential roles in various industries, they have distinct differences in their design, manufacturing process, and performance characteristics. This article will delve into the key differences between helical and annular pipes, exploring their definitions, welding seam orientations, and performance under different conditions.
What defines a helical pipe and an annular pipe in pipeline engineering?

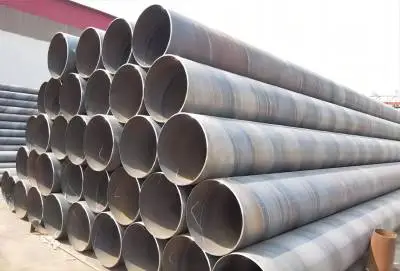

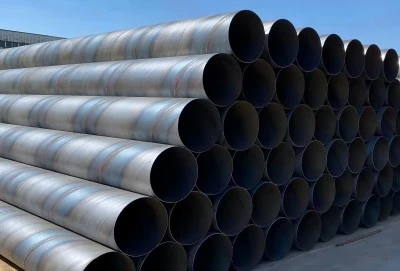

Helical pipes, also known as spiral welded pipes or helical welded pipes, are manufactured using a unique process that involves winding a continuous strip of steel into a spiral shape. The edges of the strip are then welded together to form a continuous seam that runs along the length of the pipe in a helical pattern. This manufacturing method allows for the production of pipes with large diameters and varying wall thicknesses, making helical pipes suitable for a wide range of applications.
On the other hand, annular pipes, often referred to as longitudinal welded pipes or straight seam pipes, are manufactured by rolling flat steel plates into a cylindrical shape and welding the edges together along the length of the pipe. The resulting seam runs parallel to the pipe's axis, creating a straight line along its entire length.
The key difference in definition lies in the orientation of the welding seam. Helical pipes feature a spiral seam that wraps around the pipe's circumference, while annular pipes have a straight seam that runs parallel to the pipe's length. This fundamental difference in design leads to variations in manufacturing processes, material utilization, and performance characteristics.
Helical welded pipes offer several advantages in terms of material efficiency and production flexibility. The continuous spiral winding process allows for the use of narrower steel coils, which can be more cost-effective and easier to source. Additionally, the helical design enables manufacturers to produce pipes with a wide range of diameters and wall thicknesses using the same equipment, providing greater versatility in production.
Annular pipes, while more limited in terms of diameter range, offer their own set of benefits. The straight seam design can be advantageous in certain applications where a uniform longitudinal strength is required. The manufacturing process for annular pipes also allows for precise control over the pipe's dimensions and properties, making them suitable for applications with stringent specifications.
How do the welding seam orientations differ between helical and annular pipes?
The welding seam orientation is one of the most distinguishing features between helical and annular pipes. This difference not only affects the visual appearance of the pipes but also influences their structural properties and performance in various applications.
In helical pipes, the welding seam follows a spiral pattern around the pipe's circumference. This helical seam is created as the steel strip is wound into a spiral shape during the manufacturing process. The angle of the spiral can vary depending on the pipe's diameter and the width of the steel strip used. Typically, the spiral angle ranges from 30 to 45 degrees relative to the pipe's axis.
The helical seam orientation offers several advantages:
1. Improved stress distribution: The spiral pattern helps distribute stresses more evenly along the pipe's length, potentially enhancing its overall strength and durability.
2. Increased production efficiency: The continuous spiral winding process allows for faster production speeds compared to traditional longitudinal welding methods.
3. Flexibility in diameter control: By adjusting the spiral angle, manufacturers can produce pipes with a wide range of diameters using the same equipment and materials.
Annular pipes, in contrast, feature a straight welding seam that runs parallel to the pipe's longitudinal axis. This seam is created when the edges of the rolled steel plate are joined together during the manufacturing process. The straight seam orientation has its own set of characteristics:
1. Uniform longitudinal strength: The straight seam provides consistent strength along the pipe's length, which can be advantageous in applications where axial loads are a primary concern.
2. Simplified inspection and testing: The straight seam allows for easier visual inspection and non-destructive testing of the weld quality.
3. Predictable behavior under pressure: The uniform seam orientation can lead to more predictable performance under internal pressure loads.
The choice between helical and annular pipes often depends on the specific requirements of the application, including factors such as pipe diameter, wall thickness, pressure ratings, and installation conditions. Engineers and project managers must carefully consider these factors when selecting the most appropriate pipe type for their needs.
Which pipe type offers better flexibility and strength under dynamic loads?
When it comes to flexibility and strength under dynamic loads, both helical and annular pipes have their unique characteristics. The performance of each pipe type can vary depending on the specific loading conditions, pipe dimensions, and material properties. However, some general observations can be made regarding their behavior under dynamic loads.
Helical pipes, with their spiral seam orientation, often exhibit better flexibility compared to annular pipes. The helical structure allows for a more even distribution of stresses along the pipe's length, which can be advantageous in situations involving bending or flexural loads. This improved stress distribution can potentially lead to:
1. Enhanced resistance to fatigue: The spiral seam helps dissipate cyclic stresses more effectively, potentially reducing the risk of fatigue failure under repetitive loading conditions.
2. Better performance in seismic zones: The increased flexibility of helical pipes can be beneficial in areas prone to earthquakes, as they may better absorb ground movements and vibrations.
3. Improved resistance to buckling: The spiral structure can provide additional resistance against localized buckling, especially in large-diameter pipes.
However, it's important to note that the performance of helical pipes under dynamic loads can be influenced by factors such as the spiral angle, weld quality, and material properties. Proper design and manufacturing processes are crucial to ensure optimal performance.
Annular pipes, while generally considered less flexible than helical pipes, offer their own set of strengths under dynamic loads:
1. Consistent longitudinal strength: The straight seam provides uniform strength along the pipe's axis, which can be advantageous in applications involving significant axial loads.
2. Predictable behavior under internal pressure: The straight seam orientation allows for more straightforward stress calculations and predictable performance under pressure fluctuations.
3. Potential for higher overall strength: In some cases, annular pipes may offer higher overall strength due to the continuous longitudinal weld and the ability to use thicker steel plates in their construction.
The choice between helical and annular pipes for applications involving dynamic loads depends on various factors, including:
1. The nature of the dynamic loads (e.g., bending, axial, torsional)
2. Environmental conditions (e.g., seismic activity, soil movement)
3. Installation methods and constraints
4. Pipe dimensions and material specifications 5. Regulatory requirements and industry standards
In many cases, the decision may require detailed engineering analysis and consideration of project-specific requirements. Collaboration between pipe manufacturers, engineers, and project managers is essential to ensure the most appropriate pipe type is selected for the given application.
Contact Longma Group
In conclusion, both helical and annular pipes have their unique advantages and applications in pipeline engineering. Helical pipes offer greater flexibility in manufacturing and potentially better performance under certain dynamic loads, while annular pipes provide consistent longitudinal strength and predictable behavior under pressure. The choice between the two depends on the specific requirements of each project, including factors such as pipe diameter, wall thickness, pressure ratings, and installation conditions.
For those seeking high-quality helical welded pipes, Longma Group stands out as a professional manufacturer with a strong commitment to excellence. Our helical pipes adhere to various recognized standards, including API 5L, ASTM A53, ASTM A500, ASTM A252, and ASTM A795, ensuring top-notch quality and reliability. We offer a wide range of outer diameters from 8 inches to 120 inches and thicknesses covering SCH10 to SCH160, catering to diverse project needs. To learn more about our products and how they can benefit your pipeline projects, please don't hesitate to contact us at info@longma-group.com. At Longma Group, we're dedicated to delivering exceptional pipe solutions that meet and exceed your expectations.
