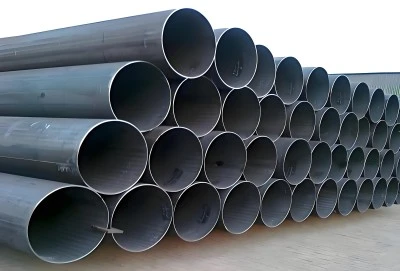

In the world of structural steel, S235JR pipe is a commonly used material known for its strength and versatility. The "JR" stands for "JR grade," which indicates specific mechanical properties and impact toughness requirements. This designation is crucial for engineers and project managers working in construction, oil and gas, and industrial manufacturing sectors. These pipes are designed to meet particular standards for strength, ductility, and impact resistance at room temperature, making them suitable for various applications across different industries.
Steel Grade Designations: The 'JR' explained
S235JR: Breaking down the steel code
To fully grasp the meaning of JR in S235JR pipe, we need to break down the steel code. The "S" stands for structural steel, while "235" represents the minimum yield strength in megapascals (MPa). The "JR" at the end denotes the steel's impact toughness grade, which is tested at room temperature (20°C).
This coding system helps engineers and procurement managers quickly identify the steel's properties and suitability for specific projects. For instance, when working on a bridge construction project in Southeast Asia, knowing that S235JR pipe meets certain strength and toughness requirements can aid in making informed decisions about material selection.
JR vs. J0 and J2: Key differences in steel grades
While JR is one grade of impact toughness, it's essential to understand how it compares to other grades like J0 and J2. The main difference lies in the temperature at which the impact test is performed:
- JR: Tested at 20°C (room temperature)
- J0: Tested at 0°C
- J2: Tested at -20°C
These distinctions are crucial when selecting materials for projects in different climatic conditions. For example, a pipeline project in the Middle East might opt for S235JR pipes due to the region's generally warm climate, while a similar project in colder regions of Australia might require J0 or J2 grade steel for better low-temperature performance.
EN 10025 standard: The foundation of JR designation
The JR designation in S235JR pipe is based on the European Standard EN 10025, which outlines the technical delivery conditions for hot-rolled products of structural steels. This standard provides a comprehensive framework for steel classification, ensuring consistency and reliability across the industry.
For project procurement managers and plant equipment managers, understanding this standard is crucial when sourcing materials for large-scale engineering projects. It allows for accurate comparison of steel grades from different suppliers and ensures that the chosen materials meet the necessary quality and performance criteria.
Impact toughness requirements for JR grade steel
Charpy V-notch test: Measuring JR steel toughness
The impact toughness of JR grade steel, including S235JR pipes, is typically measured using the Charpy V-notch test. This test involves striking a notched specimen with a pendulum hammer and measuring the energy absorbed during the fracture. For JR grade steel, the test is conducted at 20°C, which aligns with typical operating temperatures in many applications.
Understanding the Charpy V-notch test results is crucial for structural engineers working on projects such as offshore platform construction or large-scale industrial manufacturing facilities. It provides insights into how the material will perform under sudden impact loads, which is essential for ensuring the safety and longevity of structures.
Temperature considerations: JR steel's performance at 20°C
The JR designation in S235JR pipe indicates that the steel meets specific toughness requirements when tested at 20°C. This temperature point is significant because it represents average room temperature and is often the baseline for many construction and industrial applications.
For projects in regions with consistently warm climates, such as the Middle East or parts of Southeast Asia, S235JR pipes offer reliable performance without the need for more specialized low-temperature grades. However, engineers must carefully consider temperature fluctuations and potential extreme weather conditions when specifying materials for long-term installations.
Comparing JR to other grades: Toughness benchmarks
When comparing JR grade steel to other grades like J0 and J2, it's important to consider the specific project requirements. While JR grade performs well at room temperature, J0 and J2 grades offer better toughness at lower temperatures. This comparison is particularly relevant for projects that may experience seasonal temperature variations or for applications in colder climates.
For instance, a water supply system project in Australia might require different steel grades for pipes used in the warmer northern regions compared to those used in the cooler southern areas. Understanding these toughness benchmarks allows for more informed decision-making in material selection, balancing performance requirements with cost considerations.
How does JR affect steel pipe applications?
construction: Strength and versatility
S235JR pipes are widely used in the construction industry due to their excellent balance of strength and versatility. The JR grade ensures that these pipes can withstand typical loads and impacts encountered in building structures, bridges, and other infrastructure projects. For structural engineers, the predictable performance of S235JR pipes at room temperature simplifies calculations and risk assessments.
In large-scale engineering projects, such as the construction of high-rise buildings or expansive industrial complexes, S235JR pipes often serve as primary structural elements. Their ability to maintain strength and toughness under various load conditions makes them a reliable choice for critical applications.
Oil and gas industry: JR steel's role in pipelines
The oil and gas industry relies heavily on high-quality steel pipes for transportation and processing applications. S235JR pipes find extensive use in this sector, particularly in above-ground installations and non-critical segments of pipeline networks. The JR grade's impact toughness properties ensure that these pipes can withstand the rigors of installation and operational stresses.
For project managers overseeing oil and gas transportation infrastructure, the selection of S235JR pipes can offer a cost-effective solution without compromising on essential performance characteristics. However, it's crucial to consider factors such as operating pressures, fluid characteristics, and environmental conditions when specifying pipe materials for these applications.
Welding S235JR pipes: Benefits and best practices
One of the key advantages of S235JR pipes is their excellent weldability. The JR grade steel composition is optimized to facilitate reliable and efficient welding processes, which is crucial for both fabrication and on-site assembly. This characteristic is particularly valuable in projects requiring extensive pipe joining, such as in the construction of water supply systems or industrial manufacturing facilities.
For welding engineers and project managers, understanding the best practices for welding S235JR pipes is essential to ensure structural integrity and longevity. Proper weld preparation, selection of appropriate welding consumables, and adherence to recommended welding procedures are all critical factors in achieving high-quality, durable pipe connections.

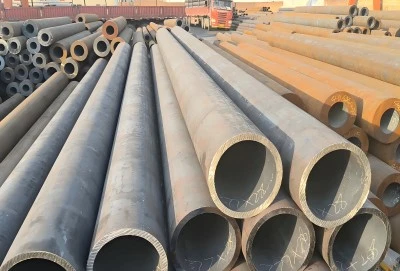

S235JR Pipes Supplier
For high-quality S235JR pipes that meet international standards, Hebei Longma Group is your trusted supplier. We offer advanced production equipment imported from Germany, ensuring top-notch quality. Our professional team of over 300 employees, including 60+ technical experts, guarantees excellence in every product. With comprehensive testing facilities and fast delivery times, we meet the most demanding project requirements. Hebei Longma Group provides complete certification, including API 5L and ISO standards, ensuring compliance with global regulations. Our competitive pricing is backed by long-term partnerships with raw material suppliers and an integrated production model. For pipes that deliver on quality, reliability, and value, contact us at info@longma-group.com.
