Understanding the pressure rating of A53 B ERW pipes is essential for their safe use in industrial applications. The pressure rating indicates the maximum internal pressure a pipe can withstand without failure. Key factors influencing this rating include wall thickness, material strength, operating temperature, and environmental corrosiveness. The ASTM A53 standard provides guidelines for calculating pressure ratings but does not specify them for every configuration. Other standards, like ASME B31.3, also help determine appropriate ratings, considering safety margins and industry requirements to ensure safe operational limits.
Calculation Method
The calculation of pressure ratings for A53 B ERW pipes involves a systematic approach that takes into account various factors affecting the pipe's strength and durability. The most commonly used formula for this calculation is derived from the ASME Boiler and Pressure Vessel Code, Section VIII, Division 1. This formula, known as Barlow's formula, is expressed as:
P = (2 * S * t) / (D - 0.8 * t)
Where: P = Internal pressure (psi) S = Allowable stress of the material (psi) t = Nominal wall thickness of the pipe (inches) D = Outside diameter of the pipe (inches)
The allowable stress (S) for A53 B ERW pipes is typically taken as 20,000 psi at room temperature, as per ASME B31.3. However, this value may need to be adjusted for different operating temperatures or when considering safety factors.
It's important to note that this calculation provides a theoretical maximum pressure rating. In practice, additional factors such as safety margins, joint efficiency, and specific industry standards must be considered to determine the safe working pressure of the pipe in its intended application.
Influencing Factors Of Pressure Rating
The pressure rating of A53 B ERW pipes is significantly influenced by several key factors. Understanding these factors is crucial for accurately determining the appropriate pressure rating for specific applications.
Pipe wall thickness plays a critical role in determining the pressure rating. As the wall thickness increases, so does the pipe's ability to withstand higher internal pressures. This relationship is directly reflected in Barlow's formula, where the wall thickness (t) is proportional to the pressure rating. For example, a pipe with a wall thickness of 0.25 inches will have a higher pressure rating than an otherwise identical pipe with a wall thickness of 0.20 inches.
The material strength of A53 B ERW pipes is another crucial factor. Grade B pipes, with their higher yield and tensile strengths compared to Grade A, can withstand higher internal pressures. The allowable stress value (S) used in pressure rating calculations is directly related to the material's strength properties. Higher strength materials allow for higher allowable stress values, resulting in higher pressure ratings.
Temperature is a significant factor that can affect the pressure rating of A53 B ERW pipes. As temperature increases, the strength of the steel typically decreases, which in turn reduces the pressure rating. Conversely, at very low temperatures, some steels may become brittle, potentially affecting their pressure-bearing capacity. Engineers must consider the full range of operating temperatures when determining the appropriate pressure rating for a given application.
The presence of a corrosive environment can significantly impact the pressure rating of A53 B ERW pipes over time. Corrosion can reduce the effective wall thickness of the pipe, thereby decreasing its pressure-bearing capacity. In highly corrosive environments, it may be necessary to specify a corrosion allowance, effectively increasing the wall thickness to account for material loss over the pipe's service life. This consideration ensures that the pipe maintains its required pressure rating throughout its intended lifespan.
Application
A53 B ERW pipes find applications across various industries, each with its own specific pressure requirements. Understanding these application scenarios is crucial for selecting the appropriate pipe specifications and ensuring safe and efficient operations.
In the oil and gas industry, A53 B ERW pipes are commonly used for transporting crude oil and natural gas. The pressure requirements in these applications can vary widely depending on the specific part of the process. For example, gathering lines that transport oil from wells to processing facilities typically operate at lower pressures, often below 1,000 psi. However, long-distance transmission pipelines may operate at much higher pressures, sometimes exceeding 2,000 psi. In these high-pressure applications, the wall thickness and grade of the A53 pipes must be carefully selected to ensure they can safely handle the operating pressures.
The chemical industry often uses A53 pipes for process piping and utility services. Pressure requirements in chemical plants can vary significantly depending on the specific process. Some applications may involve relatively low pressures, while others, such as high-pressure reactors or distillation columns, may require pipes capable of withstanding pressures of several hundred to over 1,000 psi. In these cases, not only the pressure rating but also the pipe's resistance to the specific chemicals being transported must be considered.
In the construction industry, these pipes are frequently used for fire protection systems. The National Fire Protection Association (NFPA) standards typically require these systems to withstand pressures of at least 175 psi. While this is well within the capabilities of most A53 pipes, factors such as water hammer effects and the potential for future system expansions often lead designers to specify pipes with higher pressure ratings as a safety measure.
Water treatment and distribution systems represent another important application area for A53 pipes. Municipal water systems typically operate at pressures ranging from 50 to 100 psi, with some high-rise buildings requiring pressures up to 200 psi or more. While these pressures are generally well within the capabilities of A53 B ERW pipes, factors such as potential pressure surges and the critical nature of water supply infrastructure often lead to the selection of pipes with higher pressure ratings to ensure long-term reliability and safety.

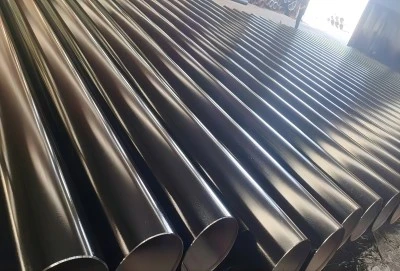

A53 B ERW Pipes Manufacturer
LONGMA GROUP has established itself as a leading manufacturer of A53 B ERW pipes, with a workforce of over 300 employees, including more than 60 technical personnel. The company's commitment to quality and innovation is evident in its independent equipment research team, which continually works to improve manufacturing processes and product performance. If you are in the market for A53 B ERW pipes and seeking a reliable manufacturer, LONGMA GROUP invites you to reach out to them at info@longma-group.com for more information on their products and services.
References
1. ASTM International. (2020). ASTM A53/A53M-20 Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless.
2. American Society of Mechanical Engineers. (2018). ASME B31.3-2018 Process Piping.
3. American Petroleum Institute. (2018). API Specification 5L: Specification for Line Pipe.
4. Nayyar, M. L. (2000). Piping Handbook (7th ed.). McGraw-Hill Education.
5. American Society of Mechanical Engineers. (2019). Boiler and Pressure Vessel Code, Section VIII, Division 1.
