API 5L X70 grade pipe exhibits exceptional tensile strength properties that make it ideal for demanding pipeline applications. The X70 designation indicates a specified minimum yield strength (SMYS) of 70,000 psi (483 MPa) and an ultimate tensile strength range of 620-690 MPa. These strength characteristics allow X70 pipes to withstand high operating pressures while maintaining structural integrity. The material's balanced combination of strength and toughness stems from careful control of chemical composition and thermomechanical processing during manufacturing. Understanding these strength parameters is crucial for engineers and operators selecting appropriate pipe materials for critical infrastructure projects.
The tensile properties of X70 pipe enable its use in high-pressure transmission systems while optimizing material usage through reduced wall thickness requirements compared to lower-grade alternatives. This strength-to-weight optimization makes X70 an economically attractive option for major pipeline projects where material costs significantly impact overall project economics.
|
|
|
Tensile Strength Specifications For API 5L X70
The API 5L specification establishes rigorous requirements for X70 pipe tensile properties. The minimum yield strength requirement of 483 MPa represents the stress level at which the material begins to exhibit permanent deformation. This yield strength ensures the pipe maintains its dimensional stability under normal operating conditions while providing a safety margin against unexpected load increases. The ultimate tensile strength range of 620-690 MPa defines the maximum stress the material can withstand before failure, providing crucial information for design calculations and safety assessments.
These strength parameters result from precise control of microstructural evolution during manufacturing. The steel's chemical composition typically includes carefully balanced amounts of carbon, manganese, and microalloying elements such as niobium, vanadium, and titanium. Thermomechanical controlled processing (TMCP) techniques optimize grain structure and distribution of strengthening precipitates, achieving the required mechanical properties while maintaining excellent weldability and toughness characteristics.
The relationship between yield strength and tensile strength, expressed as the Y/T ratio, receives particular attention in X70 pipe production. A controlled Y/T ratio ensures adequate strain capacity and structural stability under various loading conditions. Modern X70 production techniques achieve optimal combinations of strength and ductility through advanced rolling practices and precise temperature control during processing.
Testing Methods For Tensile Strength In API 5L X70 Pipe
Tensile strength verification for X70 pipe involves standardized testing procedures outlined in API 5L and referenced standards. The primary test method utilizes full-thickness strip specimens machined from the pipe body. These specimens undergo controlled strain-rate testing in calibrated universal testing machines that record the complete stress-strain relationship. The test setup includes precise extensometers to measure elongation and sophisticated data acquisition systems to capture detailed mechanical response characteristics.
Test specimens require careful preparation to ensure representative results. Surface preparation, dimensional accuracy, and proper alignment in the testing machine significantly influence measurement quality. The testing protocol includes specific requirements for specimen orientation, gauge length, and testing speed. Multiple specimens from each pipe lot undergo testing to verify property consistency and compliance with specification requirements.
Advanced testing methodologies may incorporate digital image correlation techniques to analyze strain distribution patterns during testing. This approach provides detailed information about material behavior and helps identify any anomalies in mechanical response. Quality control programs often include supplementary testing methods such as hardness measurements and metallographic examination to provide comprehensive material characterization.
Comparison With Other API 5L Grades
X70 grade represents a significant advancement in pipeline steel technology compared to traditional grades like X42 and X52. While X42 offers a minimum yield strength of 290 MPa and X52 provides 360 MPa, X70's 483 MPa capability enables substantial reductions in wall thickness for equivalent pressure ratings. This strength advantage translates into material savings, reduced transportation costs, and easier field handling during construction.
The evolution of steel grades reflects technological progress in steelmaking and pipe manufacturing. X70 achieves its superior properties through advanced metallurgical techniques that were not available when lower grades were developed. Compared to higher grades like X80, X70 offers an optimal balance between strength and practical considerations such as weldability and field constructability. This balance has established X70 as the preferred choice for many major pipeline projects worldwide.
Material cost considerations often favor X70 over both lower and higher grades. The reduced wall thickness requirements compared to lower grades offset the higher per-unit material cost, while the more straightforward welding procedures and field handling requirements provide advantages over higher grades. These factors contribute to X70's widespread adoption in modern pipeline construction.
Applications Where High Tensile Strength In X70 Is Essential
High-pressure natural gas transmission systems represent a primary application where X70's tensile strength characteristics prove invaluable. These pipelines often operate at pressures exceeding 1000 psi (6.9 MPa), requiring materials capable of withstanding substantial hoop stress while maintaining long-term structural integrity. X70 pipe enables efficient system design through optimized wall thickness selection, reducing material requirements while ensuring safe operation.
Long-distance oil transmission pipelines benefit from X70's combination of strength and toughness. The material's resistance to pressure fluctuations and mechanical damage enhances system reliability and reduces maintenance requirements. Offshore pipeline applications particularly benefit from X70's strength characteristics, as the material helps minimize installation stresses and optimize pipeline weight for laying operations.
Cross-country pipeline projects spanning challenging terrain rely on X70's mechanical properties to handle installation stresses and operating conditions. The grade's superior strain capacity accommodates ground movement and thermal expansion effects while maintaining structural stability. These capabilities make X70 particularly suitable for projects in seismically active regions or areas with unstable soil conditions.
X70 Pipe Supplier

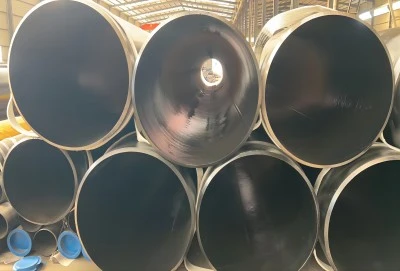

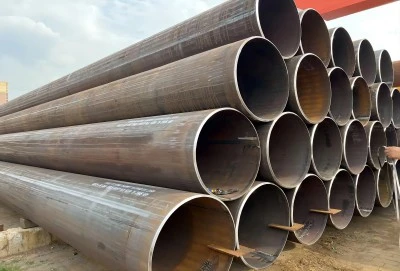

LONGMA GROUP manufactures API 5L X70 pipe in both PSL1 and PSL2 quality levels, maintaining strict compliance with international standards and customer specifications. The company's manufacturing facilities employ advanced process control systems to ensure consistent mechanical properties across production runs. Comprehensive quality control programs include regular testing and verification of tensile properties to maintain product reliability.
The organization's technical expertise extends to material selection consultation and application-specific recommendations. Customers seeking detailed information about X70 pipe specifications and availability can contact the sales team at info@longma-group.com for professional assistance in selecting appropriate pipe products for their specific project requirements.
