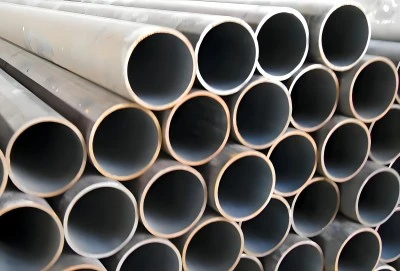

ASTM A500 structural tubing is a widely used material in construction and engineering applications due to its excellent strength-to-weight ratio and versatility. As a critical component in many structural designs, understanding the yield strength of different grades of ASTM A500 structural pipe is essential for engineers, architects, and construction professionals. In this comprehensive guide, we'll explore the yield strength specifications for ASTM A500 Grades A, B, and C, examine the differences in mechanical performance among these grades, and delve into why Grade C exhibits higher yield strength compared to Grades A and B.
Yield strength specifications for ASTM A500 Grades A, B, and C
ASTM A500 structural tubing is available in three distinct grades: A, B, and C. Each grade has specific yield strength requirements that determine its performance characteristics and suitability for various applications. Let's examine the yield strength specifications for each grade:
Grade A: ASTM A500 Grade A structural tubing has a minimum yield strength of 33,000 psi (228 MPa) for round shapes and 39,000 psi (269 MPa) for square and rectangular shapes. This grade is suitable for general-purpose structural applications where moderate strength is required.
Grade B: ASTM A500 Grade B structural tubing offers higher strength compared to Grade A. The minimum yield strength for Grade B is 42,000 psi (290 MPa) for round shapes and 46,000 psi (317 MPa) for square and rectangular shapes. Grade B is commonly used in more demanding structural applications that require increased load-bearing capacity.
Grade C: ASTM A500 Grade C structural tubing provides the highest yield strength among the three grades. The minimum yield strength for Grade C is 46,000 psi (317 MPa) for round shapes and 50,000 psi (345 MPa) for square and rectangular shapes. This grade is ideal for applications that demand maximum strength and performance.
It's important to note that these yield strength values represent the minimum requirements set by the ASTM standard. In practice, manufacturers often produce ASTM A500 structural tubing with yield strengths that exceed these minimum specifications, providing an additional safety factor for structural designs.
Differences in mechanical performance among Grades A, B, and C
While yield strength is a crucial factor in determining the performance of ASTM A500 structural tubing, it's not the only consideration. Let's examine the differences in mechanical performance among Grades A, B, and C:
1. Tensile strength: In addition to yield strength, tensile strength is an important property that indicates the maximum stress a material can withstand before failure. The minimum tensile strength requirements for ASTM A500 structural tubing are as follows:
- Grade A: 45,000 psi (310 MPa) for round shapes; 45,000 psi (310 MPa) for square and rectangular shapes
- Grade B: 58,000 psi (400 MPa) for round shapes; 58,000 psi (400 MPa) for square and rectangular shapes
- Grade C: 62,000 psi (427 MPa) for round shapes; 62,000 psi (427 MPa) for square and rectangular shapes
As we can see, Grade C offers the highest tensile strength, followed by Grade B and then Grade A.
2. Elongation: Elongation is a measure of a material's ductility, or its ability to deform plastically without fracturing. The minimum elongation requirements for ASTM A500 structural tubing are:
- Grade A: 25% for round shapes; 23% for square and rectangular shapes
- Grade B: 23% for round shapes; 21% for square and rectangular shapes
- Grade C: 21% for round shapes; 21% for square and rectangular shapes
Interestingly, Grade A exhibits the highest elongation, which means it has greater ductility compared to Grades B and C. This characteristic can be advantageous in applications where some degree of deformation is desirable before failure.
3. Weldability: All grades of A500 structural tubing are generally considered to have good weldability. However, due to the higher carbon content in Grade C, it may require more careful welding procedures to prevent cracking or other weld-related issues.
4. Cost considerations: Generally, as the grade increases from A to C, so does the cost of the material. This is due to the higher material quality and processing required to achieve the increased strength properties.
Understanding these differences in mechanical performance is crucial for selecting the appropriate grade of A500 structural tubing for specific applications. While Grade C offers the highest strength, it may not always be the best choice depending on the project requirements, budget constraints, and other factors such as ductility and weldability.
Why does Grade C have higher yield strength than Grade A and B?
The higher yield strength of ASTM A500 Grade C structural tubing compared to Grades A and B is primarily attributed to differences in the material composition and manufacturing process. Let's explore the factors that contribute to Grade C's superior yield strength:
1. Chemical composition: Grade C typically has a higher carbon content compared to Grades A and B. Carbon is a crucial element in steel that significantly influences its strength. The increased carbon content in Grade C allows for the formation of stronger intermetallic compounds and a higher percentage of martensite in the microstructure, resulting in improved yield strength.
2. Heat treatment: The manufacturing process for Grade C often involves more rigorous heat treatment procedures compared to Grades A and B. These heat treatments, such as quenching and tempering, can help optimize the microstructure of the steel, leading to enhanced mechanical properties, including higher yield strength.
3. Grain refinement: Grade C may undergo additional processing steps to achieve a finer grain structure. Finer grains in the steel microstructure contribute to increased strength by providing more grain boundaries that impede dislocation movement, a key mechanism in material deformation.
4. Alloying elements: While the ASTM A500 standard primarily focuses on carbon steel, Grade C may contain slightly higher amounts of alloying elements such as manganese, silicon, or vanadium. These elements can form carbides and other strengthening precipitates that further enhance the material's yield strength.
5. Work hardening: The manufacturing process for Grade C may involve a higher degree of cold working, which introduces dislocations and other defects into the crystal structure of the steel. These defects can interact with each other and impede further dislocation movement, resulting in increased yield strength.
6. Stricter quality control: To consistently achieve the higher yield strength requirements of Grade C, manufacturers often implement more stringent quality control measures throughout the production process. This includes careful monitoring of raw material quality, precise control of heat treatment parameters, and thorough testing of the finished product.
It's important to note that while these factors contribute to the higher yield strength of Grade C, they also influence other material properties. For example, the increased carbon content and more rigorous processing can lead to slightly reduced ductility compared to Grades A and B, as evidenced by the lower elongation requirements for Grade C.
The choice between ASTM A500 Grades A, B, and C should be based on a careful consideration of the specific application requirements, including strength, ductility, weldability, and cost-effectiveness. While Grade C offers the highest yield strength, it may not always be the optimal choice for every project.
