When it comes to pipeline construction and industrial applications, X52 pipe is a popular choice known for its strength and versatility. As a grade of steel pipe specified by the American Petroleum Institute (API) 5L standard, this pipe offers a balance of durability and cost-effectiveness that makes it suitable for various projects. In this comprehensive guide, we'll explore the sizes, standards, and applications of 52 pipe, providing valuable insights for engineers, contractors, and industry professionals.
|
|
|

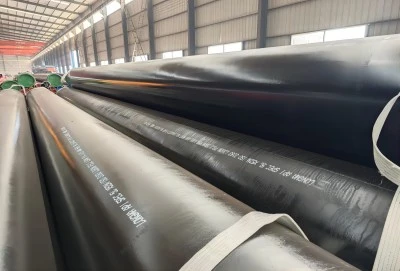

Standard Size Ranges for API 5L X52 Pipe
X52 pipe, like other grades in the API 5L specification, comes in a wide range of sizes to accommodate different project requirements. The standard size ranges for X52 pipe typically include:
- Outer Diameter (OD): 1/2 inch (12.7 mm) to 80 inches (2032 mm)
- Wall Thickness: 0.109 inches (2.77 mm) to 2 inches (50.8 mm)
- Length: 20 feet (6.1 m) to 80 feet (24.4 m), with custom lengths available upon request
It's important to note that not all combinations of diameter and wall thickness are available or practical. The specific size options may vary depending on the manufacturing process (ERW or LSAW) and the intended application of the pipe.
The versatility in size ranges allows X52 pipe to be used in various industries, including oil and gas transmission, water distribution, and structural applications. The ability to select from a wide range of dimensions enables engineers to optimize pipe selection based on factors such as pressure requirements, flow rates, and installation constraints.
When specifying X52 pipe for a project, it's crucial to consider not only the size but also other factors such as the pipe end finish (plain end, beveled, or threaded), coating requirements, and any additional testing or certification needs [1].
Wall Thickness and Diameter Options for ERW and LSAW X52 Pipes
X52 pipe is commonly manufactured using two primary methods: Electric Resistance Welding (ERW) and Longitudinal Submerged Arc Welding (LSAW). Each method has its own set of capabilities and limitations when it comes to wall thickness and diameter options:
ERW X52 Pipes:
- Diameter Range: Typically 1/2 inch (12.7 mm) to 24 inches (609.6 mm)
- Wall Thickness Range: 0.109 inches (2.77 mm) to 0.750 inches (19.05 mm)
ERW pipes are known for their consistent wall thickness and tight dimensional tolerances. They are often preferred for smaller diameter applications and where high production volumes are required.
LSAW X52 Pipes:
- Diameter Range: Generally 16 inches (406.4 mm) to 80 inches (2032 mm)
- Wall Thickness Range: 0.250 inches (6.35 mm) to 2 inches (50.8 mm)
LSAW pipes are capable of larger diameters and thicker walls compared to ERW pipes. They are often used in high-pressure applications and offshore projects where larger pipe sizes are required.
The choice between ERW and LSAW X52 pipes depends on various factors, including:
- Project requirements (e.g., pressure ratings, corrosion resistance)
- Installation method and location
- Cost considerations
- Availability of manufacturing facilities
It's worth noting that advances in manufacturing technology have led to some overlap in the capabilities of ERW and LSAW processes, particularly in the mid-range diameters. This provides more options for engineers and project managers when selecting the most appropriate pipe for their specific needs [2].
How Does Size Impact Pressure and Flow in X52 Pipelines?
The size of X52 pipe, including both diameter and wall thickness, plays a crucial role in determining the pressure capacity and flow characteristics of a pipeline system. Understanding these relationships is essential for proper pipeline design and operation:
Pressure Capacity:
The pressure capacity of an X52 pipe is directly related to its wall thickness and diameter. The relationship is described by the hoop stress formula:
P = (2 * S * t) / D
Where:
- P = Internal pressure
- S = Allowable stress (determined by the material properties of X52 steel)
- t = Wall thickness
- D = Outer diameter
As the wall thickness increases, the pressure capacity of the pipe increases. Conversely, as the diameter increases (with the same wall thickness), the pressure capacity decreases. This is why larger diameter pipes often require thicker walls to maintain the same pressure rating as smaller pipes.
Flow Characteristics:
The diameter of an X52 pipe significantly impacts its flow characteristics. The relationship between pipe size and flow rate is described by the continuity equation:
Q = V * A
Where:
- Q = Volumetric flow rate
- V = Fluid velocity
- A = Cross-sectional area of the pipe
A larger diameter pipe can transport more fluid at the same velocity compared to a smaller pipe. This means that for a given flow rate, larger pipes will have lower fluid velocities, which can be beneficial in reducing erosion and pressure losses due to friction.
However, it's important to balance the benefits of larger diameters with practical considerations such as:
- Material costs
- Installation challenges
- Pumping requirements
- Minimum flow velocities needed to prevent sediment accumulation
The selection of the optimal X52 pipe size for a given application requires careful consideration of these factors, along with hydraulic calculations and economic analysis. Engineers must balance the pressure requirements, desired flow rates, and overall system efficiency to determine the most appropriate pipe dimensions.
X52 Pipe Manufacturer
52 pipe offers a wide range of size options, making it a versatile choice for various pipeline applications. From small diameter ERW pipes to large diameter LSAW pipes, X52 steel can be manufactured to meet diverse project requirements. Understanding the relationship between pipe size, pressure capacity, and flow characteristics is crucial for optimal pipeline design and operation.
When selecting pipe for your project, consider factors such as pressure ratings, flow requirements, installation constraints, and long-term operational costs. By carefully evaluating these aspects, you can ensure that your pipeline system performs efficiently and reliably for years to come.
For expert guidance on selecting the right X52 pipe for your specific needs, consider reaching out to a reputable manufacturer. Longma Group, one of China's leading ERW/LSAW steel pipe manufacturers since 2003, specializes in the production of large-diameter, thick-walled, double-sided, sub-arc-seam welding steel pipes. With an annual output exceeding 1,000,000 tons as of 2023, Longma Group has the expertise and capacity to meet your 52 pipe requirements. For more information or to discuss your project, please contact us at info@longma-group.com.
