Appearance Inspection
The first crucial test that 3PE (Three-Layer Polyethylene) coated steel pipes must undergo is a thorough appearance inspection. This visual examination is essential to ensure the overall quality and integrity of the coating, which plays a vital role in protecting the steel pipe from corrosion and external damage.
During the appearance inspection, quality control experts carefully examine the entire surface of the coated pipe. They look for several key factors that indicate the coating's quality:
Uniform gloss: A properly applied 3PE coating should have a consistent sheen across the entire surface. Variations in gloss can indicate inconsistencies in the coating process or potential weak spots in the protective layer.
Coating appearance: The coating should have a smooth, even appearance without any visible imperfections. This includes checking for color consistency, as uneven coloration might suggest issues with the coating application or curing process.
Absence of defects: Inspectors meticulously search for any signs of defects that could compromise the coating's effectiveness. These defects may include:
The appearance inspection is typically conducted under good lighting conditions, and inspectors may use magnifying glasses or other visual aids to detect even minor imperfections. This test is critical because it can reveal issues that might not be caught by other testing methods, ensuring that only pipes with high-quality, defect-free coatings move on to subsequent stages of testing and eventual use in the field.
|
|
|
Coating Thickness Measurement
After the visual inspection, the next critical test for 3PE coated steel pipes is the coating thickness measurement. This test is crucial because the thickness of the coating directly affects its ability to protect the steel pipe from corrosion and mechanical damage. A coating that's too thin may not provide adequate protection, while an excessively thick coating could lead to other issues such as poor adhesion or increased susceptibility to damage during handling and installation.
The coating thickness measurement is typically performed using non-destructive testing methods to preserve the integrity of the coating. Common tools used for this purpose include magnetic gauges and ultrasonic thickness meters. These instruments can accurately measure the thickness of the coating without damaging it.
Measurements are taken at multiple points along the length and circumference of the pipe to ensure consistent coating thickness. The number of measurement points can vary depending on the pipe's size and specific industry standards, but it's common to take readings at regular intervals, such as every meter along the pipe's length and at several points around its circumference.
3PE Coatings Thickness
- Minimum thickness: Usually around 2.0 to 3.0 mm, depending on the pipe's intended use and environmental conditions.
- Nominal thickness: Often set at about 3.0 to 3.5 mm.
- Maximum thickness: Generally not exceeding 4.5 to 5.0 mm.
These values can vary based on specific project requirements, industry standards (such as ISO 21809-1), or client specifications. It's important to note that both minimum and maximum thresholds are crucial. A coating below the minimum thickness may not provide adequate protection while exceeding the maximum thickness can lead to issues with flexibility, adhesion, or increased risk of damage during handling.
If any measurement falls below the minimum required thickness or exceeds the maximum allowable thickness, the pipe may be rejected or require rework. Some specifications allow for a certain percentage of readings to fall slightly outside the desired range, as long as the overall average thickness meets the requirements.
The coating thickness measurement test ensures that each 3PE coated steel pipe has a uniform and adequate protective layer, contributing to the long-term durability and performance of the pipeline system.
Pinhole Detection
Pinhole detection, also known as holiday testing or porosity testing, is a critical examination in the quality control process for 3PE coated steel pipes. This test is designed to identify any small holes, breaks, or thin spots in the coating that might not be visible to the naked eye during the appearance inspection. Even tiny defects can allow moisture and corrosive elements to reach the steel surface, potentially leading to localized corrosion and premature pipe failure.
After the test, any detected holidays must be repaired according to approved procedures, typically involving cleaning the area, applying additional coating material, and retesting to ensure the repair was successful.
The pinhole detection test is a crucial step in ensuring the integrity of the 3PE coating. By identifying and addressing even tiny defects, this test helps guarantee that the coated pipe will provide long-lasting protection against corrosion in its operational environment.
Anti-Peeling Test
The anti-peeling test, also known as the peel strength test or adhesion test, is a critical evaluation of the bond strength between the 3PE coating and the steel pipe surface. This test assesses how well the coating adheres to the pipe, which is crucial for long-term protection against corrosion and mechanical damage. A coating that easily peels off would leave the steel pipe vulnerable to environmental factors, potentially leading to premature failure.
The anti-peeling test is typically conducted according to standardized procedures, such as those outlined in ISO 21809-1 or ASTM D6677. The test involves the following key steps:
1. Sample preparation: A strip of the coating is partially separated from the pipe surface, usually by making two parallel cuts through the coating down to the steel surface, and then carefully lifting the strip between these cuts.
2. Temperature conditioning: The pipe sample is conditioned to a specified temperature, which is typically either room temperature (23°C ± 2°C) or an elevated temperature that simulates operational conditions (often around 60°C to 80°C, depending on the specific standard or project requirements).
3. Peel test setup: The partially separated coating strip is attached to a tensile testing machine. The pipe is secured to prevent movement during the test.
4. Peeling process: The tensile machine applies a constant force to peel the coating strip away from the pipe surface at a specified angle (typically 90° or 180°) and at a controlled rate (often 10 mm/min or 25 mm/min).
5. Force measurement: The force required to continue peeling the coating is measured and recorded throughout the test. This force is usually expressed in Newtons per centimeter (N/cm) of coating width.
6. Data analysis: The average peel strength is calculated from the recorded data, excluding the initial and final portions of the peel where values may be inconsistent.
The minimum acceptable peel strength can vary depending on the specific standard or project requirements. Typical minimum values for 3PE coatings might range from 15 N/cm to 30 N/cm, but higher values are often preferred for more demanding applications.
In addition to the quantitative measurement of peel strength, the test also provides qualitative information about the nature of the coating adhesion. The failure mode during peeling can indicate whether any weaknesses are in the coating itself, at the interfaces between layers, or at the bond with the steel surface.
If the peel strength falls below the specified minimum, or if the failure mode indicates a problem with coating adhesion, the pipe may be rejected or require further investigation and possible recoating. Consistent passing of the anti-peeling test across multiple samples provides confidence in the overall quality and durability of the 3PE coating system.

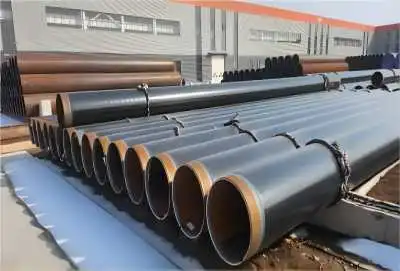

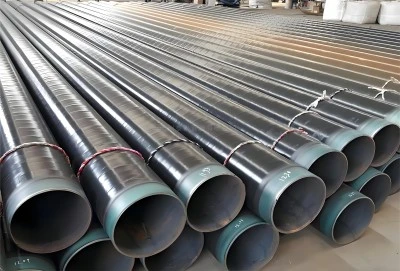

3PE Coating Steel Pipe For Sale
LONGMA GROUP's products are strictly tested before delivery to customers. Whether you choose 3PE coating or FBE coating, Longma can provide it for you.
When selecting 3PE coated steel pipes, it's crucial to choose a reputable manufacturer that adheres to stringent quality control measures. LONGMA GROUP has established itself as a reliable provider in this industry, ensuring that all their products undergo rigorous testing before being delivered to customers.
In addition to 3PE coating, LONGMA GROUP also offers Fusion Bonded Epoxy (FBE) coating options. FBE is another high-performance coating system that provides excellent corrosion protection and is often used in high-temperature applications or as a base layer in multi-layer coating systems.
LONGMA GROUP's team can provide guidance on selecting the most appropriate coating system for your specific needs. Their experience in manufacturing and testing coated steel pipes across various industries allows them to offer informed recommendations.
By choosing a manufacturer like LONGMA GROUP, you can have confidence that the 3PE coated steel pipes you receive have passed all necessary quality tests and will provide reliable, long-lasting performance in your application. For more information or to discuss your specific requirements, you can reach out to LONGMA GROUP at info@longma-group.com.
