When it comes to selecting the right steel pipe for your project, understanding the differences between ASTM A106 B and ASTM A53 B is crucial. Both are widely used in various industries, but each has its unique characteristics that make it more suitable for specific applications. In this comprehensive guide, we'll explore the material composition differences, temperature and pressure suitability, and provide project examples to help you make an informed decision on when to use A106 B over A53 B.
|
|
|
Material Composition Differences Between ASTM A106 B and A53 B
The primary distinction between ASTM A106 B and ASTM A53 B lies in their chemical composition and manufacturing processes. While both are carbon steel pipes, they are designed for different purposes and have slight variations in their material makeup.
ASTM A106 B is specifically engineered for high-temperature service. It has a higher carbon content, typically ranging from 0.30% to 0.50%, which contributes to its enhanced strength and heat resistance. The increased carbon content also results in better creep resistance, making it ideal for applications involving elevated temperatures.

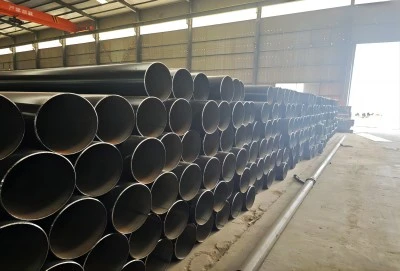

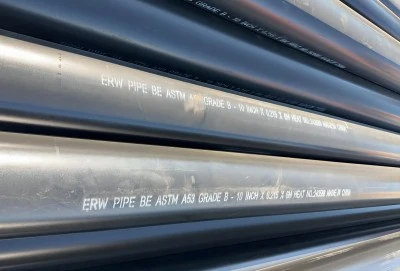

On the other hand, ASTM A53 B, often referred to as a53 gr.b pipe, has a lower carbon content, usually between 0.20% and 0.35%. This composition makes it more suitable for general-purpose applications and offers better weldability. The a53 gr.b pipe is known for its versatility and is commonly used in various construction and industrial projects.
Both grades contain other alloying elements such as manganese, phosphorus, sulfur, and silicon, but in slightly different proportions. These variations contribute to their distinct properties and performance characteristics.
Temperature and Pressure Suitability Comparison
The temperature and pressure ratings of ASTM A106 B and ASTM A53 B play a crucial role in determining their suitability for different applications. Understanding these parameters is essential for ensuring the safety and efficiency of your piping system.
ASTM A106 B is designed to withstand higher temperatures and pressures compared to ASTM A53 B. It can typically operate at temperatures up to 850°F (454°C) without significant loss of strength or creep resistance. This makes A106 B the preferred choice for high-temperature applications in petrochemical plants, power generation facilities, and other industries where heat resistance is critical.
In contrast, ASTM A53 B, including the a53 gr.b pipe, is rated for lower temperature services, generally up to 650°F (343°C). While it can handle moderate temperatures and pressures, it may not be suitable for extreme conditions. The a53 gr.b pipe is often used in applications where the operating temperatures are closer to ambient or moderately elevated.
Regarding pressure ratings, both grades have similar capabilities at room temperature. However, as the temperature increases, A106 B maintains its strength better than A53 B. This means that in high-temperature environments, A106 B can withstand higher pressures compared to A53 B at the same temperature.
It's important to note that the actual temperature and pressure limits for both grades can vary depending on the pipe size, wall thickness, and specific operating conditions. Always consult the relevant ASME codes and standards for precise ratings and allowable stresses when designing your piping system.
Project Examples: When to Use A106 B Over A53 B
To better understand when to choose ASTM A106 B over ASTM A53 B, let's explore some real-world project examples where the specific properties of each grade come into play.
1. Oil Refinery Piping: In oil refineries, where high temperatures and pressures are common, ASTM A106 B is often the preferred choice. For instance, in the crude distillation unit, where temperatures can exceed 700°F (371°C), A106 B pipes are used to transport hot crude oil and its fractions. The enhanced heat resistance and strength of A106 B ensure the integrity of the piping system under these demanding conditions.
2. Power Plant Steam Lines: Power plants rely heavily on high-temperature steam to generate electricity. ASTM A106 B pipes are typically used for main steam lines and hot reheat lines, where temperatures can reach up to 1000°F (538°C). The superior creep resistance of A106 B makes it ideal for these critical applications, ensuring long-term reliability and safety.
3. Chemical Processing Plants: In chemical processing facilities, where corrosive materials and high temperatures are often present, ASTM A106 B pipes are commonly used. For example, in the production of sulfuric acid, where temperatures can exceed 450°F (232°C), A106 B pipes are preferred for their ability to maintain strength and resist corrosion under these harsh conditions.
4. Natural Gas Distribution: For natural gas distribution networks, where temperatures are generally moderate and pressures are not extreme, ASTM A53 B pipes, including a53 gr.b pipe, are often sufficient. These pipes are used for transporting natural gas from city gate stations to end-users, operating at pressures typically below 60 psi and near-ambient temperatures .
5. Fire Protection Systems: In building fire sprinkler systems, where the pipes are not exposed to high temperatures during normal operation, ASTM A53 B pipes are commonly used. The a53 gr.b pipe is suitable for these applications due to its cost-effectiveness and ability to meet the required pressure ratings for fire protection systems.
6. HVAC Systems: For heating, ventilation, and air conditioning (HVAC) systems in commercial and residential buildings, ASTM A53 B pipes are often the go-to choice. These systems typically operate at moderate temperatures and pressures, making the a53 gr.b pipe a suitable and economical option.
In general, ASTM A106 B should be used when: - Operating temperatures exceed 650°F (343°C) - The system is subject to frequent temperature fluctuations - High pressure ratings are required at elevated temperatures - Creep resistance is a critical factor On the other hand, ASTM A53 B, including a53 gr.b pipe, is suitable for: - General-purpose piping applications - Moderate temperature and pressure conditions - Projects where cost-effectiveness is a primary concern - Applications requiring good weldability and formability
Contact Longma
In conclusion, the choice between ASTM A106 B and ASTM A53 B depends on the specific requirements of your project. ASTM A106 B excels in high-temperature and high-pressure applications, making it the preferred choice for petrochemical, power generation, and other industries where extreme conditions are common. ASTM A53 B, including the versatile a53 gr.b pipe, is ideal for general-purpose applications and projects with moderate temperature and pressure requirements.
When selecting between these two grades, carefully consider factors such as operating temperature, pressure, corrosion resistance, and cost-effectiveness. By understanding the unique properties and applications of ASTM A106 B and ASTM A53 B, you can ensure that your piping system is designed for optimal performance, safety, and longevity.
For expert guidance on selecting the right steel pipe for your project, consider reaching out to Longma Group. As one of China's leading ERW/LSAW steel pipe manufacturers since 2003, Longma Group specializes in the production of large-diameter, thick-walled, double-sided, sub-arc-seam welding steel pipes, including LSAW (Longitudinal Submerged Arc Welded) and ERW steel pipes. With an annual output exceeding 1,000,000 tons as of 2023, Longma Group has the expertise and capacity to meet your steel pipe needs. For more information or to discuss your project requirements, please contact us at info@longma-group.com.
