When it comes to selecting the right pipe for your project, the choice between ASTM A106 B and ASTM A53 B pipe can be crucial. Both are widely used in various industries, but they have distinct characteristics that make them suitable for different applications. In this comprehensive guide, we'll explore the differences between these two types of pipes, focusing on their intended applications, material composition, properties, and manufacturing methods. By the end of this article, you'll have a clear understanding of which pipe is better suited for your specific needs.
|
|
|
Intended Application
ASTM A106 B and ASTM A53 B pipes are both carbon steel pipes, but they are designed for different purposes. Understanding their intended applications is crucial in making the right choice for your project.
ASTM A106 B pipes are primarily used in high-temperature applications. They are specifically designed to withstand elevated temperatures and pressures, making them ideal for use in oil refineries, power plants, and chemical processing facilities. These pipes are often employed in steam lines, boiler tubes, and other high-heat environments where strength and durability are paramount.
On the other hand, ASTM A53 steel pipe, particularly Grade B, is more versatile and widely used in general-purpose applications. It's commonly found in:
- Plumbing and water distribution systems
- Fire sprinkler systems
- Low to medium pressure steam lines
- Air and gas transmission
- Structural applications
The ASTM A53 Steel Pipe's versatility makes it a popular choice in construction, oil and gas, and various industrial sectors. Its ability to perform well under normal operating conditions and its cost-effectiveness contribute to its widespread use.
When deciding between the two, consider the specific requirements of your project. If you're dealing with high-temperature applications, ASTM A106 B is likely the better choice. For general-purpose use or applications with standard operating conditions, ASTM A53 B pipe would be more suitable and potentially more cost-effective.
Material Composition and Properties
The material composition and properties of ASTM A106 B and ASTM A53 B pipes play a significant role in their performance and suitability for different applications. Let's delve into the specifics of each:
ASTM A106 B:
ASTM A106 B pipes are made from seamless carbon steel and are known for their excellent strength and heat resistance. The chemical composition typically includes:
- Carbon: 0.30% max
- Manganese: 0.29-1.06%
- Phosphorus: 0.035% max
- Sulfur: 0.035% max
- Silicon: 0.10% min
This composition gives ASTM A106 B pipes superior mechanical properties, including:
- High tensile strength: Minimum 60,000 psi (415 MPa)
- Yield strength: Minimum 35,000 psi (240 MPa)
- Excellent resistance to high temperatures
- Good ductility and toughness
ASTM A53 Steel Pipe (Grade B):
ASTM A53 steel pipe, particularly Grade B, is also made from carbon steel but can be either seamless or welded. Its chemical composition typically includes:
- Carbon: 0.30% max
- Manganese: 1.20% max
- Phosphorus: 0.05% max
- Sulfur: 0.045% max
The properties of ASTM A53 B pipes include:
- Tensile strength: Minimum 60,000 psi (415 MPa)
- Yield strength: Minimum 35,000 psi (240 MPa)
- Good weldability
- Suitable for bending and flanging
While both types of pipes have similar minimum strength requirements, ASTM A106 B pipes generally offer better performance at higher temperatures. The additional silicon in A106 B pipes contributes to their improved heat resistance.
It's worth noting that ASTM A53 Steel Pipe, being more versatile, is available in different grades (A and B) and can be produced through various methods (Type F, E, or S), offering more options to suit different project requirements.
When choosing between the two, consider the operating conditions of your application. If high-temperature resistance is crucial, ASTM A106 B is the better choice. For general-purpose applications where standard strength and versatility are needed, ASTM A53 Steel Pipe would be more appropriate.
Manufacturing Methods
The manufacturing methods used to produce ASTM A106 B and ASTM A53 B pipes contribute significantly to their characteristics and performance. Understanding these methods can help you make a more informed decision about which pipe is better suited for your project.
ASTM A106 B Manufacturing:
ASTM A106 B pipes are exclusively manufactured using the seamless process. This method involves:
- Heating a solid steel billet to high temperatures
- Piercing the heated billet to create a hollow shell
- Rolling and stretching the shell to achieve the desired diameter and wall thickness
- Heat treating the pipe to enhance its properties
The seamless manufacturing process results in pipes with uniform wall thickness and superior strength, particularly important for high-pressure and high-temperature applications. The absence of welds eliminates potential weak points, making ASTM A106 B pipes ideal for demanding environments.
ASTM A53 B pipe Manufacturing:
ASTM A53 Steel Pipe offers more flexibility in terms of manufacturing methods. It can be produced as either seamless (Type S) or welded (Type E or F):
- Type S: Manufactured using the seamless process, similar to A106 B pipes
- Type E: Produced using electric resistance welding (ERW)
- Type F: Made using continuous welding (CW), though this is less common
The ERW process for ASTM A53 Steel Pipe involves:
- Uncoiling and flattening steel strips
- Forming the strip into a tubular shape
- Welding the seam using electric resistance welding
- Heat treating the welded area to ensure uniform properties
While welded pipes may have a slight reduction in strength at the weld seam compared to seamless pipes, modern welding techniques have significantly narrowed this gap. ASTM A53 Steel Pipe produced through ERW offers excellent quality and performance for most general-purpose applications.
The choice between seamless and welded ASTM A53 Steel Pipe often depends on the specific requirements of the project, including pressure ratings, cost considerations, and availability.
When deciding between ASTM A106 B and ASTM A53 B pipes, consider the following:
- If your application involves high temperatures or pressures, the seamless ASTM A106 B pipe is likely the better choice.
- For general-purpose applications where welded pipes are acceptable, ASTM A53 Steel Pipe (Type E or S) can offer a cost-effective solution without compromising on quality.
- If you require the versatility of choosing between seamless and welded options, ASTM A53 Steel Pipe provides that flexibility.
Remember, the "better" pipe ultimately depends on your specific application, operating conditions, and project requirements.

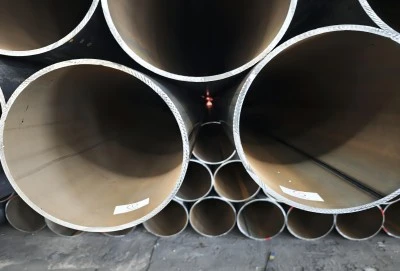

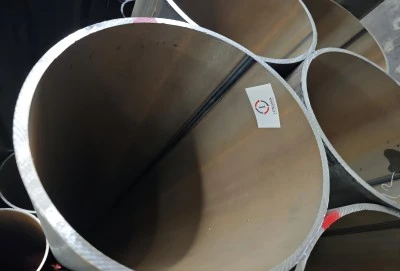

Longma Group ASTM A53 Steel Pipe
Choosing between ASTM A106 B and ASTM A53 B pipes depends on your specific project requirements. ASTM A106 B excels in high-temperature and high-pressure applications, while ASTM A53 B pipe offers versatility and cost-effectiveness for a wide range of general-purpose uses. Consider factors such as operating conditions, pressure ratings, and temperature requirements when making your decision.
Longma Group offers customization options for ASTM A53 ERW Pipe to meet the unique specifications and dimensions of individual projects, ensuring precise fit and functionality. If you are choosing your wholesale astm a53 erw steel pipe factories, welcome to contact LONGMA GROUP at info@longma-group.com.
