ASTM A672 C70 Pipe

ASTM A672 C70 Pipe – High-Pressure Electric Fusion Welded Solutions for Industrial Piping Systems

Hebei Longma Group specializes in manufacturing high-quality ASTM A672 C70 Pipe with production capabilities spanning outer diameters from 60.3mm to 2032mm (2"-80") and wall thicknesses ranging from 4mm to 100mm. With over 20 years of manufacturing experience, Longma Group has an annual output capacity of more than 1,000,000 tons in a 230,000 square metre factory. Longma Group offers durable electric fusion welded carbon steel pipes designed for the most demanding high pressure applications. Our product has a tensile strength of 485-620 MPa and minimum yield strength of 260 Mpa with API 5L and ISO certification which provides consistent quality for power generation, petrochemical and oil & gas infrastructure projects around the globe.

Understanding ASTM A672 C70 Pipe Specifications

ASTM A672 C70 is a kind of electric-fusion-welded carbon steel pipe with ASTM A515 Grade 70 pressure vessel quality steel plate. This standard is of special importance in industrial applications where strong mechanical strength is required at moderate temperature conditions.

The"C70"is the basic material grade with higher tensile qualities than lesser grades. The electric fusion welding procedure results in a longitudinal seam that passes thorough quality testing, making it appropriate for pressure containment applications.

These pipes are used in businesses that need big diameter and thick wall sections. This manufacturing technology enables the cost efficient fabrication of sizes that would be prohibitively costly or technically difficult in seamless forms.

Technical Specifications and Material Properties

The chemical composition ensures excellent weldability while maintaining structural integrity under pressure. Class 22 heat treatment involves stress relieving, while Class 32 includes normalizing and tempering for enhanced impact resistance.

Key Advantages for High-Pressure Applications

Superior Strength Performance

ASTM A672 C70 Pipe has mechanical qualities that exceed ordinary carbon steel grades. C70 standard ensures stable strength for systems working under constant high pressure, minimising the chance of failure for vital infrastructure.

Weld Integrity Proven

Electric fusion welding guaranties uniform, traceable seam quality. Each weld undergoes extensive inspection procedures including radiographic testing to confirm that the longitudinal seam is equal to or surpasses the mechanical characteristics of the underlying material.

Economic Efficiency for Big Diameters

For projects needing pipes larger than 24 inches in diameter with thick walls, ASTM A672 C70 may save substantial costs compared to seamless alternatives. The plate forming method can handle proportions which cannot be attained by extrusion production.

Flexible Engineering Solution

We can customise according to your needs for diameter, wall thickness, and length. This flexibility helps engineering teams to define specific needs without sacrificing availability or lead-time.

Full Quality Documentation

All piping is supplied with complete documentation including Material Test Certificates, NDT reports, hydrostatic test reports and dimensional inspection reports. This paperwork helps the project approval procedures and regulatory compliance verification.

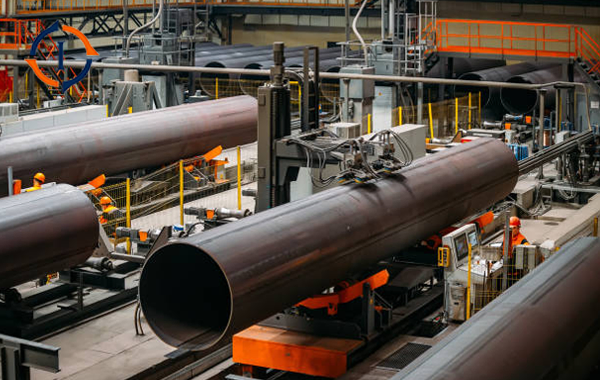

Manufacturing Excellence at Longma Group

Longma Group's production facilities implement advanced quality control throughout the manufacturing cycle. Raw materials sourced from certified Chinese steel mills including Shagang, TISCO, and Bao Steel undergo incoming inspection before processing.

The electric fusion welding process utilizes qualified procedures conforming to ASME Section IX standards. Experienced welding technicians operate under strict supervision, with each seam receiving real-time monitoring during formation.

Post-weld heat treatment facilities provide precise temperature control for stress relieving or normalizing operations. This capability ensures that mechanical properties remain consistent across the entire pipe length, regardless of production batch.

Final inspection includes 100% radiographic examination of weld seams, hydrostatic pressure testing at 1.5 times design pressure, and dimensional verification using calibrated measurement equipment. Products are only released after meeting all specified requirements.

Industrial Applications and Use Cases

Power Generation Facilities

Main steam lines and feedwater systems in power plants require materials that maintain stability under continuous pressure. ASTM A672 C70 Pipe provides the strength and reliability needed for these critical applications where downtime carries significant operational costs.

Petrochemical Processing

Large-diameter processing columns and header systems benefit from the pipe's resistance to lamellar tearing and chemical stability. The heavy wall capabilities support high-throughput operations in refinery environments.

Oil and Gas Infrastructure

Slug catchers and compressor stations in midstream operations utilize these pipes for their ability to handle pressure fluctuations. The large diameter options facilitate efficient fluid transport in gas transmission systems.

Industrial Process Systems

Manufacturing facilities with high-pressure steam distribution or process fluid networks rely on C70 grade pipes for their combination of strength, availability, and economic value compared to alloy alternatives.

Quality Assurance and Testing Protocols

Longma Group implements comprehensive testing procedures aligned with international standards. Chemical composition analysis verifies material compliance with ASTM A515 Grade 70 specifications before pipe formation.

Mechanical testing includes tensile strength, yield strength, and elongation measurements from both base material and weld zones. Transverse tension tests and weld-bend tests confirm that fusion zones match base metal ductility.

There are a number of techniques of non-destructive assessment, for example, radiographic testing to determine internal discontinuities, ultrasonic testing to determine sub-surface laminations and visual inspection to determine the surface quality. For low temperature applications, the toughness at the prescribed service temperatures is verified using the Charpy V-notch impact test.

Hydrostatic testing is a test for pressure integrity. Each pipe is pressure tested to a pressure greater than the design pressure. Positive Material Identification Informs of alloy makeup at final inspection stages.

Customization and Value-Added Services

Beyond standard pipe manufacturing, Longma Group provides fabrication services including end preparation, beveling, and expansion processing. These services reduce on-site labor requirements and accelerate installation schedules.

Anti-corrosion treatments are used to safeguard pipelines in harsh conditions. It might be FBE coating, 3LPE coating or hot-dip galvanising according on the service condition and client demands.

There are more types of technical documentation support than conventional certifications. Engineering teams supply Inspection and Test Plans, Manufacturing Procedure Specifications, and project-specific quality documents to support approval procedures.

Partner With a Trusted Manufacturer

Hebei Longma Group has more than 20 years of experience in manufacturing and combines contemporary production skills to produce products that match the most demanding project standards. Our dedication to quality, supported by extensive certifications and rigorous testing processes, guarantees that your pressure pipe systems work reliably throughout their service life.

With established supply chains to 90+ countries and technical support teams skilled in worldwide project needs, we give more than just products—we provide entire solutions for your high-pressure pipe difficulties.

FAQ

Q：What distinguishes ASTM A672 C70 from lower grades?

A：C70 provides higher tensile and yield strength compared to C60 and C65 grades, making it appropriate for applications requiring greater pressure containment. The material's mechanical properties remain stable across a broader range of operating conditions.

Q：How does heat treatment class affect performance?

A：Class 22 stress-relieving reduces residual stresses from welding, improving dimensional stability. Class 32 normalizing and tempering refines grain structure, enhancing impact resistance for lower temperature service. Your project requirements determine the appropriate class selection.

Q：Can these pipes be used in sour service environments?

A：When manufactured and tested according to NACE MR0175/ISO 15156 requirements, including HIC and SSC testing, the product can serve in sour service conditions. Discuss your specific application parameters with our technical team for proper material selection.

Q：What delivery timeframes should buyers expect?

A：Standard specifications can ship within 7 days for available inventory. Custom dimensions typically require 25-35 days depending on order quantity and specification complexity. Large volume orders receive priority scheduling to meet project milestones.

Q：How is weld quality verified?

A：Every longitudinal weld undergoes 100% radiographic examination per ASME Section VIII standards. Additional ultrasonic testing detects potential subsurface indications. Hydrostatic testing at 1.5 times design pressure confirms leak-tightness before shipment.

Contact Us

Ready to discuss your ASTM A672 C70 Pipe requirements? Contact our technical team at info@longma-group.com for detailed specifications, pricing, and delivery schedules tailored to your project needs.
