API Line Pipe VS APL 5l

This article will delve into the differences between API Line Pipe and API 5L, explore how the API 5L standard regulates manufacturing and performance, and examine the classification and application areas of API 5L line pipes.

What is the difference between API line pipe and API 5L?

To understand the difference between API line pipe and API 5L, it's essential to first clarify what each term represents:

API Line Pipe refers to steel pipes used for transporting oil, gas, and other petroleum products. These pipes are manufactured according to standards set by the American Petroleum Institute (API). API pipes are designed to withstand high pressures and corrosive environments typically encountered in the oil and gas industry.

API 5L, on the other hand, is a specific standard developed by the American Petroleum Institute that outlines the requirements for manufacturing line pipes. It's essentially a set of guidelines that manufacturers must follow to ensure their pipes meet the industry's safety and performance requirements.

The key difference lies in the fact that API Line Pipe is the product itself, while API 5L is the standard that governs the production of these pipes. In other words, API 5L line pipes are a subset of API Pipes that are manufactured in accordance with the API 5L specification.

Some key aspects of the API 5L standard include:

• Chemical composition requirements for the steel used
• Mechanical properties such as yield strength and tensile strength
• Dimensional tolerances
• Testing procedures to ensure quality and performance

By adhering to the API 5L standard, manufacturers ensure that their line pipes meet the rigorous demands of the oil and gas industry, providing a reliable and safe means of transporting valuable resources.

How does the API 5L standard regulate the manufacturing and performance of line pipe?

The API 5L standard plays a crucial role in regulating the manufacturing process and performance requirements of line pipes. It sets forth a comprehensive set of guidelines that cover various aspects of pipe production, testing, and quality control. Let's explore some of the key ways in which API 5L influences the manufacturing and performance of line pipes:

1. Material Specifications: API 5L defines the chemical composition requirements for the steel used in line pipe production. This includes specifying the maximum allowable percentages of elements such as carbon, manganese, phosphorus, and sulfur. By controlling the material composition, the standard ensures that the pipes have the necessary strength, toughness, and corrosion resistance for their intended applications.
2. Manufacturing Processes: The standard outlines acceptable manufacturing methods for line pipes, including seamless, electric resistance welded (ERW), and submerged arc welded (SAW) processes. Each method has its own set of requirements and quality control measures to ensure the integrity of the final product.
3. Mechanical Properties: API 5L specifies minimum requirements for mechanical properties such as yield strength, tensile strength, and elongation. These properties are crucial for ensuring that the pipes can withstand the pressures and stresses they will encounter during operation.
4. Dimensional Tolerances: The standard provides detailed specifications for pipe dimensions, including outside diameter, wall thickness, and length. It also sets tolerances for these dimensions to ensure consistency and interchangeability of pipes from different manufacturers.
5. Testing and Inspection: API 5L mandates various tests and inspections that must be performed on line pipes to verify their quality and performance. These include:
   • Hydrostatic testing to check for leaks and structural integrity
   • Non-destructive testing methods such as ultrasonic inspection to detect internal defects
   • Tensile testing to verify mechanical properties
   • Chemical analysis to confirm material composition
6. Quality Control: The standard requires manufacturers to implement and maintain a quality management system to ensure consistent production of high-quality pipes. This includes documentation of procedures, traceability of materials, and record-keeping of test results.
7. Product Specification Levels (PSL): API 5L defines two Product Specification Levels: PSL 1 and PSL 2. PSL 2 has more stringent requirements and additional testing compared to PSL 1, making it suitable for more demanding applications.

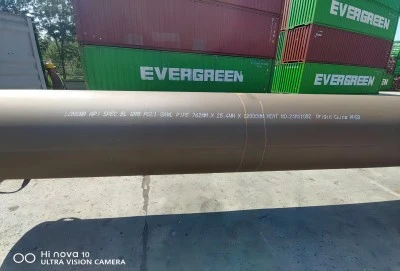

8. Marking and Documentation: The standard specifies how pipes should be marked with relevant information such as the manufacturer's name, API 5L grade, and heat number. It also outlines the documentation that should accompany the pipes, including test reports and certifications.

By regulating these aspects of line pipe manufacturing and performance, the API 5L standard ensures that pipes produced by different manufacturers around the world meet consistent quality and safety standards. This is crucial for the oil and gas industry, where the reliability and integrity of pipeline systems are paramount for both operational efficiency and environmental protection.

API 5L line pipe classification and application areas

API 5L line pipes are classified into various grades based on their mechanical properties, particularly their yield strength. The classification system helps users select the appropriate pipe for their specific application. Let's explore the different grades and their typical application areas:

API 5L Grade Classification

The API 5L standard covers a wide range of grades, each denoted by a letter or a combination of a letter and numbers. The main grades include:

• Grade A25, A, B: These are the basic grades with lower yield strengths.
• Grade X42, X46, X52, X56, X60, X65, X70, X80: These are high-strength grades, where the number following "X" indicates the minimum yield strength in thousands of psi.

For example, Grade X70 has a minimum yield strength of 70,000 psi (483 MPa).

Application Areas

Different grades of API 5L line pipes find applications in various sectors of the oil and gas industry, as well as in other fields. Here are some common application areas:

1. Oil and Gas Transmission: API 5L pipes are primarily used for transporting crude oil, natural gas, and refined petroleum products over long distances. Higher-grade pipes (X60 and above) are often used for high-pressure transmission lines.
2. Offshore Pipelines: Grades like X65 and X70 are commonly used in offshore applications due to their high strength and ability to withstand harsh marine environments.
3. Gathering Lines: Lower grades such as B and X42 are often used in gathering systems that collect oil or gas from wellheads and transport it to processing facilities.
4. Water Transmission: API 5L pipes, particularly lower grades, are also used for large-scale water transmission in municipal and industrial applications.
5. Structural Applications: Some API 5L pipes are used in structural applications, such as piling or as support structures in offshore platforms.
6. Petrochemical Industry: Various grades of API 5L pipes are used in refineries and petrochemical plants for process piping and utility services.
7. High-Pressure Gas Distribution: Higher-grade pipes like X60 and X65 are used in high-pressure gas distribution networks in urban areas.
8. Sour Service: Special grades of API 5L pipes are designed for sour service applications where the presence of hydrogen sulfide can cause sulfide stress cracking.
9. Arctic and Sub-Arctic Applications: High-grade pipes with enhanced low-temperature toughness are used in pipeline projects in extremely cold environments.
10. CO2 Transportation: With the growing interest in carbon capture and storage, API 5L pipes are being used to transport captured CO2 for sequestration or enhanced oil recovery.

The selection of the appropriate API 5L grade depends on various factors, including:

• Operating pressure
• Environmental conditions (temperature, corrosiveness)
• Material being transported
• Regulatory requirements
• Project-specific engineering considerations

By offering a range of grades with different mechanical properties, the API 5L standard allows engineers to optimize pipeline design, balancing performance requirements with cost considerations.

Contact Longma

Understanding the distinctions between API Line Pipe and API 5L, as well as the various classifications and applications of API 5L line pipes, is crucial for professionals in the oil and gas industry. The API 5L standard plays a vital role in ensuring the safety, reliability, and efficiency of pipeline systems worldwide.

As a leading manufacturer of high-quality API 5L line pipes, Longma Group is committed to delivering products that meet and exceed industry standards. Our extensive range of API pipes, including grades from B to X80 and diameters from 1/8" to 80", caters to diverse project requirements.
