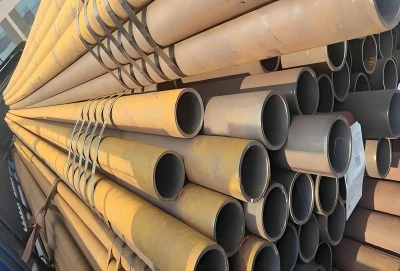

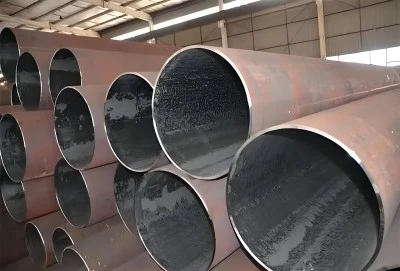

When procurement teams and structural engineers search for reliable cold-formed hollow sections rated for demanding load conditions, the AS/NZS 1163 C450 pipe stands out as a proven choice. This grade delivers a minimum yield strength of 450 MPa and a tensile strength range of 500–650 MPa, making it one of the strongest structural hollow sections under the AS/NZS 1163 classification. At Longma Group, we manufacture C450 steel pipes to full compliance, backed by ISO 9001 certification, third-party inspection reports, and traceable raw materials — giving procurement managers the documentation confidence they need before committing to large-volume orders.
|
|
|
AS/NZS 1163 C450 Steel Pipes: Specifications and Benefits
What the C450 Grade Actually Means
The number "450" in C450 stands for the minimum yield strength in megapascals, and the letter "C" stands for cold-formed production. The AS/NZS 1163 standard says that the C450 grade is the strongest, above the C250 and C350 grades. It comes in hollow section shapes that are round, square, and rectangular. The carbon equivalent value (CEV) is kept at a maximum of about 0.43, which keeps the ability to weld and the good mechanical performance.
Important mechanical traits:
- Minimum yield strength: 450 MPa — which lets designers make parts that can handle more stress without breaking.
- Tensile strength range: 500–620 MPa — helps figure out loads in heavy-duty frame structures and mining equipment chassis.
- Minimum elongation: 12–16% — based on wall thickness; this gives the material enough flexibility for joining details.
- C450L0 variant: has a guaranteed impact energy at 0°C, which is necessary for structures that are likely to break in low-temperature settings.
These specs cannot be used with mild steel that is the same size. Engineers choose this grade because it has a good strength-to-weight ratio, which means that lighter sections can carry the same amount of weight without losing their structural integrity.
Manufacturing Standards and Quality Controls
Tighter process controls are needed to make AS/NZS 1163 C450 pipe pieces than lower-grade ones. When cold forming, leftover stress is introduced. This means that uniform chemistry, controlled heat treatment of welds, and strict dimensional tolerancing must be used. At Longma Group, all of their raw materials come from well-known Chinese mills like Baosteel, HBIS, and Shagang. Before shipping paperwork is sent out, each production run goes through full mechanical testing, weld integrity checking, and dimensional proof.
Comparing AS/NZS 1163 C450 Pipes with Alternative Structural Pipes
A lot of people who work in procurement compare C450 to C350 or ASTM A500 Grade C. It's possible to measure the performance gap. C350 has a minimum yield strength of 350 MPa, which is about 28% less than C450. In real life, a designer who uses C450 can cut the thickness of walls by 15–20% while still meeting the same load-bearing requirements. This saves money on materials and lowers the structure's dead load.
The lowest yield strength for ASTM A500 Grade C is 317 MPa. Even though it's easy to find in North America, it's not as strong as C450 for big crane booms, processing plant gantries, or buildings that are subjected to a lot of cycles of fatigue. Mild steel tubes that have been galvanized can guard against corrosion, but they are not a replacement for strength. They are best used for light-duty frames and not for load-critical structural members.
Lifecycle economics are important in this case. When you choose a higher-grade hollow section up front, you usually need fewer members overall. This means less work to be done on the fabrication, fewer weld joints, and a smaller inspection area. When purchasing managers look at the total cost of ownership instead of just the unit price, C450 often shows a good return over the course of a project's many years.
Procurement Guide: How to Source C450 Hollow Sections for Industrial Projects
When you buy high-strength structural hollow parts from manufacturers in other countries, you need to go through an organized verification process. The starting point is certification papers. Any reliable AS/NZS 1163 C450 pipe provider should have ISO 9001 quality management certification, offer third-party material test certificates (MTC), and be able to fully track their products from the steel coil they come from to the finished product. Before letting a supplier do trial orders, procurement managers at mining and heavy equipment companies usually need to see an Inspection and Test Plan (ITP) and a Manufacturing Procedure Specification (MPS).
All of these things come with Longma Group; they are not extras. Our paperwork comes with ITP, MPS, MTC, Factory Production Control certificates, and the right safety and environmental management system approvals.
Besides paperwork, think about these useful buying checkpoints:
- Capacity alignment: Can the seller handle long-term, high-volume orders without causing shipping problems? Longma Group produces more than 1,000,000 tons of goods every year, which helps them keep their large-batch commitments.
- Customization scope: Wall widths and cut lengths that aren't normal are often needed for projects. We can make hollow section profiles in both round and rectangular shapes to any size you need.
- Logistics readiness: Heavy-wall structural pipes need specially designed boxes to be shipped by sea. Our export packaging is specially made to keep goods safe during long ocean trips to Australia, North America, and southern Africa.
Depending on the size and details of the order, lead times are usually between 4 and 8 weeks. This loop goes much faster if technical specs are confirmed at the question stage.
Typical Applications and Performance Benefits in Heavy-Load Structures
This grade's performance benefits are most clear in situations where structural members are subjected to long-term, high-magnitude loads that can't be bent or broken. Here are the main situations where deployment is needed:
- Mining and mineral processing infrastructure: AS/NZS 1163 C450 pipe is resistant to vibration wear, which is good for conveyor gantries, screen support frames, and structural work in crusher plants. Steel is subjected to both mechanical stress and chemical abrasion in processing environments. This makes it important that the steel's dimensions stay stable under load.
- Crane booms and material handling equipment: Main boom chords and luffing frames made of C450 are often specified by transport and lifting equipment manufacturers. Lowering the weight of a section directly increases its rated lifting capacity.
- Wind energy support structures: C450 is used to balance stiffness with the need for light motorized rotation in torque tubes and pylon sub-frames in utility-scale solar and wind installations.
- Heavy civil infrastructure: Industrial building roof beams, bridge approach frames, and raised platform structures all depend on the grade's ability to behave predictably under changing loads.
A requirement that all of these uses have in common is that the material must work effectively over thousands of load cycles in places where inspection or maintenance is hard to get to. If you choose the right grade at the planning stage, you will have shorter repair intervals and lower costs for replacements over the life of the product.
Conclusion
The AS/NZS 1163 C450 pipe is more than just a high-strength option; it is a precision-engineered building material that changes the limits of what is possible in terms of load capacity, section efficiency, and long-term durability. It is the best material for mining equipment, cranes, industrial platforms, and large civil frameworks because it has a minimum yield strength of 450 MPa, its chemistry can be tracked, and it comes in a number of hollow section profiles. If a procurement team values certified supply chains, third-party proof, and the ability to make changes, they will find that a qualified C450 provider removes more risk than a cheaper alternative can do just by price.
FAQ
What distinguishes C450 from C450L0?
The C450L0 version has a minimum guaranteed impact energy at 0°C. This makes it the perfect specification for structures that will be exposed to low temperatures or dynamic loading and need to keep the risk of brittle fracture under control. This promise of low-temperature toughness is not part of standard C450.
Can C450 hollow sections be hot-dip galvanized?
Yes, hot-dip galvanizing to AS/NZS 4680 can be done with C450. To keep zinc coatings from being too thick or uneven, the amount of silicon in the base material needs to be controlled.
What welding consumables are appropriate?
It is best to use matching-grade MIG/TIG lines or electrodes with low hydrogen. Care must be taken to keep the heat from softening the heat-affected zone, which is more likely to happen in high-yield-strength sections than in C250 or C350 sections.
Does Longma Group support non-standard dimensions?
Yes. We can make walls with any thickness, length, or section profile that you need for both one-time projects and regular industrial orders.
How do I verify that delivered product meets specification?
If you ask, we can give you full MTC paperwork that can be tracked back to the steel mill heat number where it came from, as well as third-party inspection reports.
Partner with Longma Group for Certified C450 Structural Pipe Supply
Since 2003, Longma Group has been making compliant structural steel pipe for customers in more than 90 countries. Each year, they can make more than one million tons of steel pipe. As a reliable AS/NZS 1163 C450 pipe supplier, we offer quality systems that are certified, specifications that can be changed, and export packaging that is ready for shipping. You can email our technical team at info@longma-group.com or go to longma-group.com to get a detailed quote, mill certification samples, or an estimate of your project's capacity.
