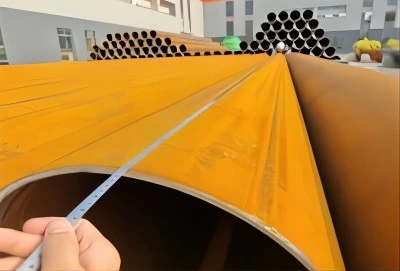

When projects need pipes that work reliably in cold places, the ASTM A671 CC60 pipe is a great option that has been used before. This pipe standard is made from ASTM A516 Grade 60 fine-grain killed carbon steel plate using electric fusion welding (EFW). It is very tough and doesn't bend easily at room temperature or lower. The CC name means that the material has better low-temperature qualities than the CB series grades. This makes it very useful in industries where thermal cycling and preventing brittle fractures are important. A671 CC60 pipes are a good compromise between low cost and high performance. They have a minimum tensile strength of 60 ksi (415 MPa) and are very easy to weld.
|
|
|
Understanding ASTM A671 CC60 Pipes and Their Specifications
Base Material and Chemical Composition
The ASTM A516 Grade 60 killed carbon steel plate that the ASTM A671 CC60 pipe is made of is what makes it work. This fine-grain steel has carefully controlled carbon levels that range from 0.21% to 0.27%, depending on the thickness of the plate. This makes it easy to weld without affecting the strength of the structure. A manganese level of between 0.60% and 1.20% makes the material much tougher, which is especially important when the temperature changes during use. The word "killed" refers to the deoxidation process that removes extra oxygen during the steelmaking process. This creates a fine-grained, uniform structure that behaves consistently mechanically.
We've seen how this exact chemical balance lets engineers confidently define A671 CC60 pipe during our 20 years at Longma Group. The controlled composition lowers the chance of age-hardening and raises the toughness of the notches. These are both important qualities for pipes that need to be able to handle high temperatures without breaking suddenly.
Mechanical Properties and Performance Range
The technical nature of ASTM A671 CC60 pipes shows that they can be used in tough situations. These pipes are structurally stable under moderate pressure loads because their tensile strength is between 415 and 550 MPa (60 to 80 ksi) and their yield strength is at least 220 MPa (32 ksi). ASTM A671 CC60 pipe is different from other carbon steels because it has better elongation qualities. In a 50mm gauge length, it usually goes over 21%, which makes it flexible enough to handle the thermal expansion and contraction cycles that happen a lot in low-temperature work.
Another important aspect of success is impact toughness. Charpy V-notch testing isn't required by ASTM A671 standards for all classes, but procurement managers often ask for them to make sure the product works at the right levels. A671 CC60 pipe material regularly shows stable energy absorption values at temperatures as low as -45°C, though this depends on how it was heated and the class requirements. This ability to resist brittle fracture is very useful when moving frozen fluids or working on building projects in cold places like Canada, Northern Europe, or high-altitude locations.
Classes and Heat Treatment Requirements
When specifying ASTM A671 CC60 pipes, it's important to understand how the Class designation system works. Classes like CL12, CL22, and CL32 spell out the necessary heat treatment steps and non-destructive examination (NDE) needs. Class 22, which is used a lot in important situations, needs to be normalised and then stressed less. This makes the grain structure better and makes it much more resistant to impact. This heat treatment gets rid of any residual stresses that were created during shaping and welding. This makes the microstructure of the pipe wall more uniform throughout.
During production, extra care is taken with the horizontal EFW weld seam. According to ASTM A671, adding filler metal during welding makes sure that the weld joint meets or beats the mechanical qualities of the base metal. Manufacturers get weld integrity factors that are very close to 100% by using qualified welding techniques and making sure that operators are properly trained. This means that the weld works just as reliably as the parent material. At Longma Group, our welding procedure qualifications (WPQ) are constantly checked and proven to be correct through mechanical testing and metallographic examination. This gives buying teams written proof of the quality of the joints.
Applications and Manufacturing Process of ASTM A671 CC60 Pipes
Primary Industrial Applications
In industries where large-diameter pipes need to contain pressure and not break down at low temperatures, ASTM A671 CC60 pipes are the perfect choice. These pipes are important parts of the perimeter systems around storage tanks and the structures of filling terminals for liquefied natural gas (LNG) plants, where temperatures regularly drop below -40°C. Their ability to resist weak fracture in these situations keeps operations running smoothly while protecting people and property.
Another important application area is municipal water treatment plants. A671 CC60 pipe is used to make large gearbox mains that can resist soil-loading loads and changes in internal pressure for decades. This grade is strong, easy to weld, and affordable, which makes it a great choice for public infrastructure projects that need to balance long-term dependability needs with limited budgets. We've worked on water treatment projects all over Southeast Asia and the Middle East. Engineers chose ASTM A671 CC60 pipe because it has a history of working well in tough soil conditions and changing water chemistry.
ASTM A671 CC60 pipe is used in low- to medium-pressure steam lines in power plants, especially in heat recovery steam generators (HRSGs). The material can handle the repeated loads that comes with start-stop processes because it is thermally stable and doesn't wear down easily. A671 CC60 pipe is used in petrochemical midstream transport to move refined products and liquid gases at room temperature or slightly below room temperature. The controlled carbon content makes the material behave consistently in a wide range of climates.
Comprehensive Manufacturing Process
From steel plate to finished pipe, there are many carefully controlled steps that must be taken to make sure that the specifications are met. At the start of the manufacturing process, ASTM A516 Grade 60 material is inspected on a plate to make sure that its chemical make-up and mechanical qualities match up with mill test results. At Longma Group, we only buy from trustworthy Chinese mills like Shagang, TISCO, and Bao Steel. This way, we can track the materials from the time they are melted down to the finished product.
Specialised presses are used in forming operations to turn flat plates into cylinders while keeping tight tolerances for diameter and out-of-roundness. To make room for the next step, which is welding, the horizontal lines are carefully bevelled. Then, controlled heat input and qualified filler materials are used in electric fusion welding to join these edges, making a continuous lengthwise seam. Monitoring the voltage, amperage, travel speed, and heat input during welding in real time makes sure that the whole length of the seam is the same.
After being welded, the pipes go into controlled-atmosphere furnaces for normalising and stress-relieving processes. This is done according to the standards for each class. These heating processes happen according to very accurate time-temperature curves that get the microstructures to the right place without distorting them. After being heated, each pipe goes through a full quality check that includes mechanical testing, dimensional inspection, and non-destructive examination.
Quality Control and Testing Protocols
Specification-compliant pipe is different from just acceptable product because it goes through strict quality control. The most important NDE method is a radiographic examination (RT) of the longitudinal weld seam; for higher classes, 100% RT is required. In this test, internal flaws like fissures, lack of fusion, or slag particles that could weaken pressure integrity are found. In some cases, ultrasonic testing (UT) can be used instead of or in addition to RT to get a more complete look at both the weld and the base material.
By putting each pipe under water pressure that is usually 1.5 times the design rating, hydrostatic testing confirms that the pipes can contain pressure. Pipes must be able to hold this pressure without leaking or permanently changing shape for certain hold times. This shows that the structure is strong even under the worst stress conditions. Dimensional inspections check the consistency of wall thickness, diameter limits, and straightness, all of which have a direct effect on how well the system works and how efficiently it was installed.
Every batch comes with a lot of paperwork, like Mill Test Reports that meet EN 10204 3.1 standards. These certificates show the chemical heat analysis, mechanical property verification, NDE results, and measurements of dimensions. They provide full traceability that meets quality assurance standards in all global markets. When showing project owners and inspection officials that they are following the rules, engineering contractors really value how strict this paperwork is.
Best Practices and Recommendations for Using ASTM A671 CC60 Pipes in Low Temperature Service
Proper Installation and Handling Procedures
The first step to a successful installation is handling the materials in a way that keeps the pipe bodies, weld gaps, and protection coatings from getting damaged. Level supports should be placed far enough apart in storage areas to keep things from sagging or ovalizing. Extra care should be taken to keep pipe ends from getting damaged by impacts, which could make field welding more difficult. When coated pipes get to the job site, holiday detection equipment is used to check the coating's quality and find any damage from transport that needs to be fixed before the pipes are installed.
Field welding methods must be approved by tests that show they have the right mechanical qualities and are free of flaws. Welding supplies should have strength and toughness qualities that are the same as or better than the base metal. The warmup and interpass temperature controls should be set based on the thickness of the material and the temperature of the room. Some joint shapes or when welding to stronger materials may need post-weld heat treatment, which needs portable furnace tools and skilled thermal cycling methods.
Managing thermal stress is very important in low-temperature work. Piping systems need to make sure that the right support spacing, anchor placement, and expansion joint specifications are used to account for heat contraction during cooling. Using finite element methods for stress analysis helps find places where stress could be too high and confirms the support design before it is built. We've helped engineering teams on several continents by giving them technical advice that stops changes in the field and makes sure that systems that are already built meet the requirements of the plan.
Maintenance Strategies and Lifecycle Management
Regular maintenance makes ASTM A671 CC60 pipes last longer and stops expensive unplanned outages. As part of regular inspections, the outside coatings should be looked at visually every so often. Care should be paid to finding places where there is mechanical damage, support contact points, and places where water buildup could speed up corrosion. Ultrasonic thickness measurements taken in key spots keep an eye on the rates of internal corrosion or erosion, letting you know early on if the wall is breaking down, which could compromise the pressure integrity.
When cathodic protection systems are used, they need to be checked on a regular basis to make sure they are distributing power correctly and that the anode is working properly. Every year, studies are done to find out how well the system is working and to find places where electrical connection needs to be improved or where more anodes need to be installed. Intelligent pigs and other internal inspection technologies can check the state of a pipeline in its entirety, finding wall loss, deformation, and weld abnormalities along its entire length.
When something is used in low temperatures, cycling between temperatures causes fatigue stresses that build up over time. Even though ASTM A671 CC60 pipe material is good at resisting fatigue, it should be inspected more carefully in key areas like branch links, thickness changes, and areas close to supports. Magnetic particle testing or liquid penetrant screening are two non-destructive methods that can find surface cracks before they get big enough to break.
Real-World Applications and Performance Validation
Case studies from real installations show that the A671 CC60 pipe can handle tough conditions. A water treatment plant in Southeast Asia asked for ASTM A671 CC60 pipe to be used for 15 kilometres of raw water transmission mains that had to go through rough terrain. After 12 years of constant service, testing programs showed that the coating was still working well and there was no measurable wall loss. This proved that the choice of materials and the design of the protection system were correct. The project met its reliability goals and delivered lower lifetime costs than the stainless steel options that were first planned.
Large-diameter A671 CC60 pipe was used for perimeter cooling water systems in an LNG port growth project in the Middle East. These systems had to work at temperatures close to -50°C during peak loading times. A lot of pre-qualification tests, including Charpy impact tests at -60°C, showed that the toughness margins were good. Despite being used for five years and going through many thermal cycles, the pipe system never leaked and never broke. This shows that properly specifying A671 CC60 pipe material has strong safety limits.
Some things that all of these great uses have in common are strict qualification of suppliers, thorough testing of materials, qualified installation processes, and preventative maintenance programs. When procurement teams and engineering groups work together to put these best practices into action, ASTM A671 CC60 pipes always give the reliable long-term performance that makes them worth choosing.
Conclusion
ASTM A671 CC60 pipe is a mature and tried-and-true option for low-temperature and air pressure piping needs that value dependability and affordability. It is made from fine-grain killed carbon steel, which gives it the toughness to prevent brittle fracture. EFW manufacturing lets it make big diameters at low costs. When procurement professionals understand the details of specifications, like Class labels and heat treatment needs, they can choose materials that perfectly meet the needs of an application without defining too many expensive features. When bought from reputable companies with clear quality control systems and thorough testing procedures, ASTM A671 CC60 pipes last for decades and are reliable in a wide range of businesses and working conditions.
FAQ
1. What temperature range is suitable for ASTM A671 CC60 pipe service?
When properly specified with the correct Class designation and confirmed through impact testing, ASTM A671 CC60 pipes work reliably at ambient temperatures as low as -45°C (-50°F). The exact lowest temperature is based on the width of the wall, the heat treatment, and the amount of stress in the design. To find the right design temperatures with enough safety margins, engineers should look at ASME B31.3 or any other relevant piping codes.
2. How does CC60 compare to stainless steel regarding corrosion resistance?
Stainless steel is naturally resistant to corrosion, while carbon steel ASTM A671 CC60 pipe needs an external coating and possibly cathodic protection in soil that is acidic. ASTM A671 CC60 pipe, on the other hand, has a similar service life and a much lower initial cost when it comes to protection systems. The economic choice depends on the specifics of the environment and a lifecycle cost analysis that takes into account costs for upkeep.
3. What certifications should reputable CC60 pipe suppliers possess?
As a minimum, quality suppliers keep ISO 9001 quality management certification. Depending on the markets they want to reach, they may also get API 5L monogram, PED conformity, and industry-specific approvals. Full test reports that meet EN 10204 3.1 standards are also very important because they show where the materials came from and prove their mechanical and chemical traits.
