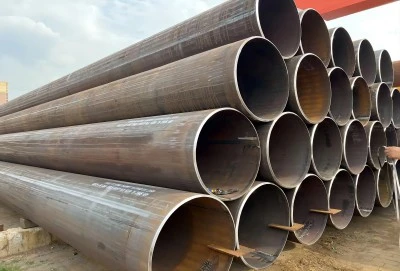

Double submerged arc welded (DSAW) pipes are a crucial component in various industries, from oil and gas to infrastructure projects. These pipes are known for their strength, durability, and versatility, making them an ideal choice for numerous applications. In this comprehensive guide, we'll explore the standard size ranges, wall thickness variations, and length options available for DSAW pipes, helping you make informed decisions for your next project.
What are the Standard Size Ranges for Double Submerged Arc Welded Pipes?
Double submerged arc welded pipes come in a wide range of sizes to accommodate different project requirements. The standard size ranges for DSAW pipes typically fall within the following parameters:
- Outer Diameter (OD): 8 inches (203.2 mm) to 100 inches (2540 mm)
- Wall Thickness: 0.188 inches (4.78 mm) to 2 inches (50.8 mm)
It's important to note that these ranges can vary depending on the manufacturer and specific industry standards. For instance, some producers may offer DSAW pipes with outer diameters as small as 6 inches (152.4 mm) or as large as 120 inches (3048 mm).
The size range flexibility of DSAW pipes is one of their key advantages. This versatility allows for their use in various applications, from small-scale projects to large industrial undertakings. For example, smaller diameter pipes might be used in municipal water systems, while larger diameter pipes are often employed in long-distance oil and gas transportation.
When selecting the appropriate size for your project, it's crucial to consider factors such as:
- The intended application of the pipe
- The volume of material to be transported
- Operating pressure requirements
- Environmental conditions
- Relevant industry standards and regulations
By carefully evaluating these factors, you can ensure that you choose the most suitable DSAW pipe size for your specific needs.

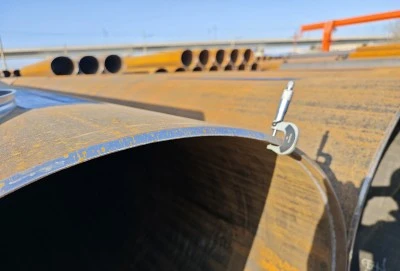

How Does Pipe Wall Thickness Vary for Different Applications?
The wall thickness of double submerged arc welded pipes is a critical factor that affects their performance and suitability for different applications. Wall thickness can vary significantly based on the intended use of the pipe and the operating conditions it will face. Here's a closer look at how wall thickness varies across different applications:
1. Oil and Gas Pipelines
In the oil and gas industry, DSAW pipes are often subjected to high pressures and corrosive environments. As a result, these pipes typically require thicker walls to ensure durability and safety. Wall thicknesses for oil and gas pipelines can range from 0.375 inches (9.53 mm) to 1.5 inches (38.1 mm) or more, depending on factors such as:
- Operating pressure
- Pipe diameter
- Material grade
- Environmental conditions
For example, a high-pressure natural gas pipeline might require a wall thickness of 1 inch (25.4 mm) or more, while a lower-pressure crude oil pipeline might use pipes with walls as thin as 0.5 inches (12.7 mm).
2. Water Transmission
DSAW pipes used in water transmission systems generally experience lower pressures compared to oil and gas pipelines. As a result, they can often be manufactured with thinner walls. Typical wall thicknesses for water transmission pipes range from 0.25 inches (6.35 mm) to 0.75 inches (19.05 mm), depending on factors such as:
- Water pressure
- Pipe diameter
- Soil conditions
- Expected lifespan of the system
3. Structural Applications
In construction and infrastructure projects, DSAW pipes are often used as structural elements. The wall thickness for these applications can vary widely based on the specific structural requirements. Common ranges include:
- Light-duty applications: 0.188 inches (4.78 mm) to 0.375 inches (9.53 mm)
- Medium-duty applications: 0.375 inches (9.53 mm) to 0.75 inches (19.05 mm)
- Heavy-duty applications: 0.75 inches (19.05 mm) to 2 inches (50.8 mm) or more
Factors influencing wall thickness in structural applications include:
- Load-bearing requirements
- Environmental factors (e.g., wind loads, seismic activity)
- Corrosion allowance
- Safety factors
It's crucial to work closely with engineers and follow relevant standards when determining the appropriate wall thickness for your specific application. This ensures that the chosen DSAW pipes meet all safety and performance requirements.
What are the Length Options Available for Double Submerged Arc Welded Pipes?
The length of double submerged arc welded pipes is another important dimension to consider when planning your project. DSAW pipes are available in various length options to suit different transportation, installation, and application requirements. Here's an overview of the common length options:
1. Standard Lengths
Most manufacturers offer DSAW pipes in standard lengths, which typically range from:
- Single Random Length: 16 feet (4.88 m) to 24 feet (7.32 m)
- Double Random Length: 32 feet (9.75 m) to 48 feet (14.63 m)
These standard lengths are designed to balance ease of transportation with efficient installation. They are suitable for a wide range of applications and are often the most cost-effective option.
2. Custom Lengths
For projects with specific requirements, many manufacturers offer custom length options for DSAW pipes. These can range from very short sections (a few feet) to exceptionally long pipes (up to 80 feet or 24.38 m). Custom lengths are particularly useful in situations such as:
- Specialized industrial applications
- Unique architectural designs
- Projects with limited installation space
- Applications requiring minimal field welding
When considering custom lengths, it's important to factor in transportation logistics and any potential additional costs associated with non-standard sizes.
3. Joining Methods for Longer Pipelines
For projects requiring pipelines longer than the maximum available pipe length, multiple sections of DSAW pipe can be joined together using various methods, including:
- Welding: The most common method for creating seamless connections between pipe sections.
- Mechanical couplings: Useful for applications where welding may not be feasible or desirable.
- Flanged connections: Often used in industrial settings where frequent disassembly may be required.
The choice of joining method depends on factors such as the operating environment, pressure requirements, and maintenance considerations.
4. Considerations for Pipe Length Selection
When selecting the appropriate length for your DSAW pipes, consider the following factors:
- Transportation limitations: Longer pipes may require special transportation arrangements.
- Installation equipment: Ensure that your equipment can handle the chosen pipe lengths.
- Site access: Consider any constraints in maneuvering pipes at the installation site.
- Project specifications: Some projects may have specific requirements for pipe lengths.
- Cost-effectiveness: Balance the cost of pipes with the number of joints required.
By carefully evaluating these factors, you can choose the optimal pipe length for your project, balancing efficiency, cost, and practicality.
Conclusion
Understanding the dimensions of double submerged arc welded pipes is crucial for selecting the right product for your project. From standard size ranges and wall thickness variations to length options, each aspect plays a vital role in determining the pipe's suitability for specific applications.
At Longma Group, we offer a wide range of DSAW pipes to meet diverse project requirements. Our experienced team can help you navigate the selection process, ensuring you choose the optimal pipe dimensions for your needs. Whether you're working on an oil and gas pipeline, a water transmission system, or a structural application, we have the expertise and products to support your project's success.
Don't let uncertainty about pipe dimensions hold your project back. Reach out to our team of experts at info@longma-group.com today. We're ready to answer your questions, provide detailed specifications, and help you find the perfect DSAW pipe solution for your next endeavor. Let's work together to bring your project to life with high-quality, precisely dimensioned DSAW pipes from Longma Group.
Reference
ASME B36.10M: Welded and Seamless Wrought Steel Pipe
ASTM A252: Standard Specification for Welded and Seamless Steel Pipe Piles
API Specification 5L: Specification for Line Pipe
