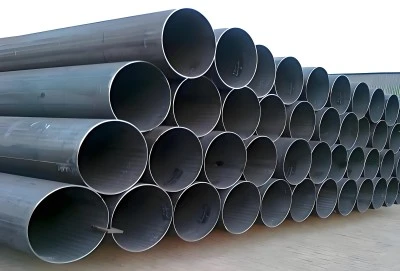

The EN10219-1 S235J2H pipe, is one of the strongest cold-formed welded structural hollow sections available under the EN 10219 standard. This grade has the best low temperature toughness in the S235 family. It has a minimum yield strength of 235 MPa, a tensile strength of 360-510 MPa and a required Charpy V-notch impact energy of 27J at -20°C. It carries a “J2” classification, meaning it won’t brittle-fracture in cold locations where conventional grades would fail. Structural engineers designing bridges, wind towers or infrastructure in tough conditions can trust this pipe to meet Eurocode 3 (EN 1993) design standards reliably.
|
|
|
Understanding EN10219-1 S235J2H Pipe Specifications and Standards
What the Grade Designation Actually Means?
The meaning of each letter is quite clear: "S" is for structural steel, "235" is for a minimum yield strength of 235 MPa, "J2" is for guarantyd Charpy impact testing at -20°C with a minimum 27 Joules, and "H" is for hollow section shape. This is not a pipe to be used in anything . It was built to handle severe temperatures in weight bearing structural applications .
Chemical Composition and Weldability
The chemical composition is supposed to be lean. Maximum carbon is 0.17% and maximum manganese is 1.40%. The limitations maintain the carbon equivalent low, so the metal may be welded well without cracking when it is cold. The weld zone is carefully protected against the corrosive effects of phosphorus and sulphur. The chemistry is balanced sufficiently that fabrication teams can weld, cut and drill this grade using regular shop processes. They don’t have to heat it up first in most thickness ranges.
Dimensional Control Under EN 10219-2
EN 10219-2 is the companion standard to EN 10219-1 and lays down regulations for the tolerances of dimensions. It tells you what faults are allowed for straightness, out-of-roundness, wall thickness and mass per metre. This level of dimensional control is required for modular steel buildings that need correct connections. This is what makes it possible to assemble in the shop and to put together on site without fixing.
Comparing EN10219-1 S235J2H Pipes With Other Structural Pipe Grades
S235J2H vs. S235JRH and S235J0H
The sole difference between the three sub-grades is the temperature at which they are tested for impact resistance. Tests are carried out on S235JRH at +20°C, S235J0H at 0°C and S235J2H at -20°C. The only grade that passes the fracture toughness requirements for building inspectors on projects in northern Europe, Scandinavia or high seas is J2H. In cold areas, a lower sub-grade to save money can create a compliance gap that can keep the job from getting signed off.
S235J2H vs. S275J2H and S355J2H
Minimum yield values are higher at 275 MPa and 355 MPa for S275J2H and S355J2H correspondingly. This means they’re ideal for uses that require additional weight. S235J2H is suitable for use as secondary structural members, bracing systems and lighter frame sections where a minimum yield strength of 235 MPa is enough. When the structural engineer selects the grade, he has regard to the design loads and the cost of the materials. S235J2H is always a winner because it is the cheapest grade for lighter frame with EN10219-1 S235J2H pipe.
Cold-Formed vs. Hot-Formed Hollow Sections
EN 10219 covers cold formed sections and EN 10210 hot finished sections. Cold forming produces residual stresses from the forming operation, yet EN 10219-1 requires that the mechanical characteristics of the weld zone be equivalent to the base metal. This is proved by flattening and bending tests. The hot-finished pieces are a little more flexible in the corner areas, but in the production shops all throughout Europe the cold-formed sections are more common since they are more accurate in size and cheaper.
Advantages of Using EN10219-1 S235J2H Pipe in Structural Applications
The S235J2H hollow piece has a number of useful qualities for real-world projects. Here are the main things that structural buying teams always depend on:
- Guaranteed low-temperature fracture resistance: The J2 impact criterion at -20°C indicates the pipe has toughness in cold climate construction, offshore secondary structures and wind power tower base sections where brittle fracture is a design stage issue.
- CE marking compliance under CPR: Pipes manufactured to EN 10219-1 with a Declaration of Performance (DoP) meet the standards of the Construction Products Regulation, satisfying the legal requirements for permanent constructions in EU member states.
- Fabrication flexibility: Controlled chemistry allows for welding, plasma cutting, drilling and bending without additional procedures, cutting workshop cycle times and labour costs for steel fabricators.
- Full traceability through EN 10204 3.1 MTC: Each heat may be traced from raw material to final portion using a material test certificate supplied by the manufacturer’s qualified inspector, a non-negotiable condition for construction permit documentation.
These properties take care of the most common reasons why structural projects are held up at inspection: missing paperwork, wrong grade assignments, and impact test results that can't be trusted.
Practical Procurement Considerations for EN10219-1 S235J2H Pipes
Verifying Supplier Certification
Some producers that claim to implement EN 10219 do not have the Factory Production Control (FPC) certificate required by CPR. An FPC certificate signifies that not only the end product has been controlled and certified, but also the entire production process. Buyers should enquire for the FPC certificate number and verify it by themselves before their first order. Within the EU, providers without an FPC certificate are not allowed to sell CE-marked structural hollow sections intended for permanent structures.
Documentation Checklist for CE Compliance
EN10219-1 S235J2H pipe shall be supplied with EN 10204 Type 3.1 material test certificate, Declaration of Performance, CE marking label with the notified body number, weld NDT reports (eddy current or ultrasonic), and dimensional inspection records to confirm that it satisfies all standards. Procurement managers should include this document summary in the terms of the buy order to avoid chasing down papers after the shipping.
Lead Times and Planning for International Supply
Ordering from a certified manufacturer in another nation, typical sizes normally have a lead time of 25 to 45 days, but may vary depending on manufacturing schedules and port traffic. This should be considered while arranging the purchase of items if projects have fixed installation dates. If ordering pipes from overseas, provide an extra two to four weeks to the project plan in advance to avoid work stoppage while the pipes are en route.
Case Studies and Real-World Applications
Bridge Truss Systems in Northern Europe
S235J2H hollow sections have been employed as secondary truss members and cross bracing in cold weather bridge projects in Norway and Finland. -20 °C impact guarantee according to Eurocode 3 design standards and local building authority inspection standards, no need for an enhanced grade like S355.
Wind Power Tower Base Structures
In central and northern Europe J2 grade hollow sections are used for welding connections under cyclic dynamic loads in wind tower foundation ring structures and transition pieces. S235J2H is a suitable choice for parts that will be used for 25 years and loaded and unloaded millions of times because it can be welded and is not broken easily.
Heavy Industrial Buildings in Cold Climates
Cold-formed J2H hollow sections are widely employed in Poland and the Baltic states as a bracing system of portal frames and as purlins in steel frames of industrial halls. Fabricators claim repeat orders always come in the right size, cutting the time it takes to assemble the pieces on site compared with portions with greater margins.
Conclusion
The EN10219-1 S235J2H pipe is more better for supporting structures than the normal carbon steel. When failure is not an option for the structure, this is the best solution, proven low temperature impact durability, controlled chemistry for clean welds and a detailed compliance log. Structural engineers will notice that, according to Eurocode 3, the J2H grade offers the toughness required for most cold climatic and dynamic load conditions without the cost of higher yield classes. For the purchasing teams, they must have FPC certification, EN 10204 3.1 material test certifications and weld NDT results.
FAQ
What is the tensile strength of S235J2H?
EN 10219-1 specifies a tensile strength range of 360–510 MPa for S235J2H, with a minimum yield strength of 235 MPa for wall thicknesses up to 16 mm.
Why does the "H" suffix matter?
The "H" designates a hollow section product form. It distinguishes these pipes from flat plate or bar products made to S235 grades, which are governed by different standards and do not carry the same dimensional or CE marking requirements.
Can S235J2H pipe be hot-dip galvanized?
Yes, but the silicon and phosphorus content in the steel must be controlled to avoid the Sandelin Effect, which causes excessive zinc coating thickness and poor adhesion. Buyers should specify "suitable for hot-dip galvanizing" in their RFQ so the manufacturer selects an appropriate heat.
Is this pipe approved for pressure service?
No. EN 10219 is a structural standard. For pressure-bearing applications, the correct standards are EN 10217 for welded steel tubes or EN 10216 for seamless steel tubes.
What is the difference between EN 10219 and EN 10210?
EN 10219 covers cold-formed welded hollow sections. EN 10210 covers hot-finished hollow sections. Hot-finished sections typically show better corner ductility, while cold-formed sections offer tighter dimensional tolerances and lower production costs.
