Visual inspection, dimensional verification, and non-destructive testing procedures should be used methodically to inspect the quality of ERW black pipe. The first steps in determining quality include inspecting the weld seams, the surface, and whether or not they meet the requirements of standards such as API 5L or ASTM A53. Advanced testing methods, including as ultrasonic and hydrostatic pressure tests, assure structural integrity and performance dependability under operating circumstances, while dimensional accuracy verification guarantees that the outer diameter and wall thickness satisfy project parameters.
Introduction
Black pipes that are electric resistance welded (ERW) are an essential part of today's industrial infrastructure because they provide practical, affordable solutions for a wide range of uses, from transporting oil and gas to building structures. The reliability and durability of these welded steel pipes have made them an essential tool for engineers and procurement experts overseeing massive industrial projects.
The vital link between the supplier's assurances and the project's success is the quality inspection of ERW black pipes. The inspection procedure is the principal line of defense against expensive failures and project delays when procurement managers source pipes for pipeline systems throughout the Middle East or offshore platforms in Australia. This all-inclusive manual covers the methodical procedure needed to successfully check the quality of pipes, guaranteeing conformity with global standards and reducing hazards in industrial supply chains.
Pipeline engineers, project procurement managers, and plant equipment experts are the intended users of the described inspection technique, as they are the ones responsible for striking a compromise between technical requirements and commercial concerns. With this knowledge, decision-makers may maximize their procurement strategy without sacrificing project integrity or regulatory compliance.
Understanding ERW Black Pipe Quality: Key Concepts and Standards
Material Composition and Manufacturing Excellence
The robustness and dependability of ERW black pipes are a result of their meticulously managed material composition and exacting production procedures. By using a combination of electrical current and pressure, the electric resistance welding technology produces pipes with uniform mechanical qualities all along their structure. This is achieved by creating a continuous weld seam. Pipes made in modern ERW factories that satisfy the demanding standards of industrial applications are welded under precisely controlled temperatures to provide the best possible welding conditions.
Under regulated circumstances, high-grade steel coils are formed, welded, and sized to begin the production process. In order to guarantee a constant chemical composition and mechanical qualities, respectable producers begin with raw material selection. They obtain steel from well-established mills such as Shagang, TISCO, and Bao Steel. The performance parameters needed for demanding applications in structural building and oil and gas transportation are achieved by ERW pipes thanks to this basis.
Critical Industry Standards and Compliance Framework
The foundation of good quality inspection is understanding relevant standards. The chemical composition, mechanical qualities, and testing processes for line pipes used in the oil and gas sectors are outlined in API 5L standards. When it comes to general-purpose pipes, ASTM A53 has you covered, whereas EN10210 is all about structural hollow sections for building projects.
The following parameters are defined by these standards:
- Weldability and mechanical performance are dependent on the alloying elements' chemical compositions, which must adhere to certain ranges for carbon and manganese
- Pipes must meet certain mechanical property standards, including minimum yield, tensile, and elongation values, as measured under controlled laboratory settings
- Dimensional tolerances refer to the allowable ranges for dimensions such as length, wall thickness, and outside diameter that are compatible with installation standards
- Hydrostatic testing, non-destructive examination, and specific documentation needs are all part of the required testing methods
Material Test Certificates (MTCs) and Inspection and Test Plans (ITPs) are examples of documents that must be reviewed in detail in order to verify compliance with standards. Procurement teams may use these records to confirm quality claims and stay in compliance with regulations since they show the whole supply chain, from raw materials to final goods.
Performance Criteria for Industrial Applications
In order to be suitable for their intended uses, ERW black pipes need to exhibit certain performance characteristics. The regulated chemistry of steel and protective coatings provide corrosion resistance, which guarantees durability in the harsh conditions seen in chemical processing plants and offshore platforms. Applications involving pressure variations or temperature cycling make structural endurance under cyclic loading conditions crucial.
Organic coatings that adhere to DIN 30670, fusion-bonded epoxy that follows ISO 21809-1, and specialized systems that fulfill AWWA C210 criteria are all part of the black coating specification. Coatings like this keep the environmental benefits of ERW pipes, which are appealing for large-scale projects, and they also protect the pipes from harmful elements.
Step-by-Step Process to Inspect ERW Black Pipe Quality

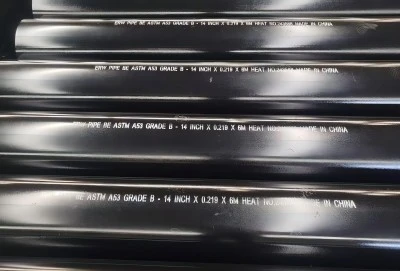

Visual Inspection and Surface Quality Assessment
First and foremost in the process of quality assurance is visual inspection, which may detect surface flaws that can affect the performance of the pipe or point to problems with the manufacturing process. Skilled inspectors look for obvious discontinuities such surface imperfections, lack of penetration, or excessive reinforcing in the weld seam to ensure it is consistent. Minimal flaws that may otherwise go unnoticed can be found with the use of inspection equipment like magnifying lenses and well-lit areas.
All of the pipe's diameter and length, not only the weld zone, are included in the surface quality assessment. Scratches, dents, and coating flaws that could lead to stress concentration spots or erode corrosion protection are the primary targets of inspectors. Because flaws introduced during cutting and handling might impact welding and connecting processes, the pipe ends need extra care.
Important baseline information for further testing choices may be derived by documenting visual inspection results. Additional testing or rejection may be required to maintain quality requirements when surface flaws surpass allowable limitations established in relevant standards. By following this methodical procedure, we can be confident that only pipes that pass our visual quality standards will go on to the next level of inspection.
Dimensional Verification and Tolerance Compliance
In order to avoid expensive installation issues and ensure conformity with specifications, precise dimensional measurement is essential. Accurate measurement of the outside diameter using measuring equipment guarantees that the system's components, including fittings and flanges, are compatible with one another. Variations that potentially impact pressure rating or structural performance can be detected by taking wall thickness measurements at several sites throughout the pipe's circumference.
In a normal dimensional examination, the following steps are taken:
- Measuring the outside diameter of a pipe involves inserting calibrated calipers or diameter tapes into the pipe at several points along its length and checking for uniformity within the given tolerances
- Wall thickness verification: verifying minimum wall thickness requirements and detecting localized variances by ultrasonic thickness gauging at set intervals
- Measurement taken directly to guarantee length matches requested dimensions and is compatible with installation specifications
- Evaluation of straightness: checking the pipe's straightness using string lines or laser alignment instruments to ensure it is within permissible limits
All measurement findings must be checked against relevant standard tolerances, and any discrepancies must be recorded and assessed for acceptability. Depending on the severity of the deviations and the project requirements, pipes that fall outside of the defined dimensions ranges may need to be sorted, reworked, or rejected.
Advanced Non-Destructive Testing Techniques
Without jeopardizing the structural integrity of the pipe, non-destructive testing (NDT) procedures provide crucial information about the interior state of the pipe. Using sound waves to identify internal discontinuities like inclusions, cracking, or lack of fusion, ultrasonic testing is the most frequent method for evaluating weld seams. Using the acceptance criteria described in relevant standards, qualified personnel analyze ultrasonic signals to detect and describe flaws.
To find surface and near-surface flaws in ferromagnetic materials, magnetic particle testing is very sensitive. Magnetizing the pipe and then introducing magnetic particles causes them to build up at flaw sites, which may then be seen under the right illumination. When visual examination fails to reveal flaws like fatigue cracks or grinding damage, our method excels at finding them.
Under regulated pressure settings, hydrostatic pressure testing verifies the integrity of pipes. The capacity of the pipe to securely hold pressured fluids is shown by the test pressure, which usually surpasses the maximum permitted operating pressure by a designated margin. Test duration and pressure hold criteria are standard-specific; any indication of pressure loss should prompt further inquiry into possible problems.
Mechanical Testing and Performance Verification
Quantitative data on pipe performance characteristics is crucial for design calculations and safety evaluations, and mechanical testing gives just that. The yield strength, ultimate tensile strength, and elongation qualities of a pipe are defined by its tensile testing results, which in turn indicate its load-carrying capability. To be considered sufficient, these qualities must be robust and ductile, and they must also fall within the ranges prescribed by relevant standards.
Applications requiring low-temperature service or dynamic loading circumstances greatly benefit from Charpy impact testing, which assesses material toughness at different temperatures. The results of the tests are useful for predicting how pipes will react when subjected to impact and for directing the choice of materials for use in various environments. The pipe's suitability for field bending operations or applications requiring deflection is validated by bending testing, which shows that the pipe can endure deformation without breaking.
The results of these mechanical tests are crucial for engineering calculations and for procurement teams to confirm that the pipes they get are up to snuff in terms of project performance. All through a project's lifespan, thorough test documentation helps with quality assurance procedures and allows for traceability.
Comparing ERW Black Pipe with Other Black Pipe Types for Quality and Application Suitability
Weld Integrity and Structural Performance Analysis
Different welding procedures provide different weld qualities in ERW black pipes, which affects how well they work in different contexts. By minimizing deformation and creating a small heat-affected zone, electric resistance welding ensures uniform mechanical characteristics across the weld area. Assuming sufficient quality control measures are put in place and correct production processes are adhered to, this regulated welding environment reliably yields weld quality.
Although seamless pipes remove any risks linked to welds, they usually cost more because they are more complicated to manufacture. Seamless pipe choices are appealing for high-pressure applications or essential service circumstances because the lack of a weld seam ensures consistent strength qualities across the pipe cross-section. For uses where weld integrity is sufficient for performance, however, ERW pipes are often the more cost-effective option because to the price difference.
Spiral submerged arc welded (SSAW) pipes have unique inspection requirements and weld geometries, although they are beneficial for applications involving large diameters. Installation difficulties pertaining to weld orientation may arise, and specialist inspection procedures are required, due to the helical weld pattern. Procurement teams may better meet project needs and stay under budget by being aware of these distinctions and choosing the best pipe type.
Cost-Benefit Analysis and Economic Considerations
In many industrial applications, ERW pipes are favored by economic analysis because to their major benefits. Competitive cost and acceptable quality standards for most applications are achieved via the inherent manufacturing efficiency of the ERW process. As opposed to batch-oriented seamless manufacturing techniques, ERW mills are capable of continuous production, which results in shorter delivery periods and improved inventory management.
The original purchase price is only one component of the total cost of ownership, which also includes installation, maintenance, and lifespan expenses. ERW pipes, when coated appropriately, have a long service life in well-planned systems and are easy to install because of their uniform size. All things considered, ERW solutions tend to have better overall project economics than more expensive options.
Important economic considerations impacting pipe selection options are shown in the following comparison. Meeting performance criteria for conventional applications while enabling reasonable price is achieved via the efficiency of ERW production. When compared to other production methods, material usage benefits lessen waste and environmental effect. The complexity of procurement and the time required for installation are both reduced by the use of standard dimensions and easily accessible fittings.
Modern ERW production techniques provide consistent quality, which in turn decreases inspection costs and project hazards caused by material variability. Materials uniformity impacts installation timetables and quality assurance methods, making this dependability aspect especially essential for large-scale projects.
Application-Specific Performance Characteristics
The best pipes to use depend on the specific application since different uses highlight different performance features. Coated ERW pipes provide a cost-effective alternative that meets the long-term performance requirements of water delivery systems, which emphasize corrosion resistance and pressure containment. Efficient fluid flow and predictable pressure loss characteristics are contributed to by the smooth internal surface and uniform wall thickness.
Pipes that can handle hydrocarbon products under different pressure and temperature conditions are essential for oil and gas transportation. The proven performance of ERW pipes fulfilling API 5L criteria in pipeline applications may be achieved by addressing particular environmental issues via the correct selection of materials and coating systems. Pipes with improved mechanical qualities, suited to severe service environments, may be produced with this manufacturing technique.
When it comes to load-carrying ability and dimensional uniformity, structural applications are where ERW hollow sections really shine. Sections having known geometric features, crucial for structural design calculations, are produced by the controlled manufacturing process. Connection design and installation processes are made easier in building and bridge construction projects with consistent wall thickness and diameter tolerances.
Procurement Considerations: Sourcing and Verifying Quality from ERW Black Pipe Suppliers
Supplier Qualification and Certification Requirements
Thoroughly evaluating a supplier's production capabilities and quality management systems is the first step in conducting an effective review. Being certified by both ISO 9001 and API 5L shows that the company is dedicated to quality management concepts and can build pipes that fulfill the criteria of the oil and gas sector. These certifications guarantee that suppliers can reliably deliver items that satisfy all specifications.
The evaluation of a production facility gives vital details on the capabilities of quality control and the manufacturing processes. Advanced process control systems are used in modern ERW black pipe facilities to continually monitor welding parameters. This ensures that the weld quality remains consistent across production runs. With the use of automated inspection systems and ultrasonic testing equipment, we can guarantee the integrity of our products by inspecting every weld.
Audits of facilities and reviews of relevant paperwork reveal how well a quality management system is working. In order to respond quickly to quality concerns and meet customer quality assurance needs, suppliers with strong quality systems have complete traceability of all items, from raw materials to completed goods. Procurement risks are mitigated and supplier relationships are strengthened via this methodical approach to quality management.
Documentation Requirements and Traceability Systems
Ensuring quality verification and regulatory compliance relies heavily on comprehensive documentation. Each pipe lot's chemical composition and mechanical qualities are documented on Material Test Certificates (MTCs), which allow for the verification of conformity with specified specifications. Complete traceability information connecting finished goods to sources of raw materials and manufacturing records must be included in these certifications.
Records of heat treatment and inspection reports are examples of manufacturing paperwork that include production processes and quality control activities. Procurement teams may use this paperwork as proof that all necessary inspections were carried out and that correct production practices were followed. Project quality assurance and regulatory filings are both aided by comprehensive documentation packages.
For customers that care about quality, the paperwork should contain:
- Certificates of Material Testing: Detailing the chemical and mechanical properties of a material with the ability to track it back to its original supplier
- Comprehensive plans outlining the steps to take for conducting any and all necessary inspections and tests
- Details of the Manufacturing Process: Thoroughly documenting the process to guarantee uniform manufacturing techniques
- Reports on non-destructive testing: comprehensive findings from several non-destructive testing procedures used in manufacturing, including ultrasonic and magnetic particle testing
Managing documentation correctly allows projects to be executed efficiently and provides crucial assistance for tasks related to quality assurance and regulatory compliance.
Longma Group Manufacturing Excellence and Customer Support
In the manufacture of ERW pipes, Longma Group is a symbol of excellence in manufacturing. The company's exceptional products are the result of a combination of cutting-edge technology and thorough quality control systems. Consistent quality standards are maintained throughout all manufacturing processes at our 230,000 square meter production facility, which allows us to reliably provide large-scale projects with an annual capacity surpassing 1,000,000 tons.
A wide variety of pipe specifications are within the manufacturing capabilities, including outer diameters ranging from 60.3mm to 1,422mm and wall thickness choices ranging from 6.02mm to 50.8mm. Our wide size range allows us to meet the needs of a wide variety of projects, from utility applications with small diameters to transmission pipes with huge diameters. Our state-of-the-art heat treatment facilities provide the best possible weld characteristics, and our modern inspection systems confirm that they meet all international requirements, such as API 5L, ASTM A53, and EN10210.
Through thorough documentation and methodical inspection methods, our quality assurance standards demonstrate our dedication to the success of our customers. Prior to shipping, each pipe is subjected to a comprehensive inspection process that includes confirming mechanical properties, non-destructive testing, and dimensional verification. We routinely provide goods that fulfill the most demanding project requirements because to our recognized quality management systems, which include ISO 9001, API 5L, and different environmental management certifications.
Conclusion
Effective ERW black pipe quality inspection requires systematic application of visual examination, dimensional verification, and advanced testing techniques to ensure compliance with project specifications and industry standards. The inspection process begins with comprehensive supplier qualification and extends through detailed product verification using both traditional and modern testing methods. Understanding the relationship between manufacturing processes, material properties, and application requirements enables procurement professionals to make informed decisions that balance quality, cost, and delivery considerations.
The comparative analysis between ERW and alternative pipe types reveals distinct advantages in cost-effectiveness and manufacturing efficiency while maintaining acceptable quality levels for most industrial applications. Proper documentation and supplier qualification processes provide essential support for quality assurance activities and regulatory compliance requirements. These systematic approaches to quality verification reduce project risks while optimizing procurement strategies for complex industrial supply chains.
Partner with Longma Group for Superior ERW Black Pipe Solutions
Longma Group stands ready to support your next project with industry-leading ERW black pipe manufacturing capabilities and comprehensive quality assurance programs. Our experienced technical team provides personalized consultation services, helping you select optimal pipe specifications and coating systems for your specific application requirements. We offer complete sample inspection services and downloadable quality documentation to support your procurement decisions.
Our commitment to manufacturing excellence extends beyond production to encompass complete customer support including custom dimensions, specialized coating applications, and project-specific solutions. Contact our technical specialists at info@longma-group.com to discuss your ERW black pipe requirements and discover why leading contractors choose Longma Group as their trusted supplier for critical industrial projects worldwide.
Visit longma-group.com to explore our complete product range and request detailed specifications for your upcoming projects.
FAQs
How can I distinguish ERW pipes from seamless pipes during inspection?
ERW pipes feature a visible weld seam running longitudinally along the pipe length, which can be identified through visual inspection or magnetic particle testing. The weld seam appears as a slight line or ridge on the pipe surface, often with slightly different surface texture compared to the base material. Seamless pipes lack this characteristic weld line and exhibit uniform surface appearance around the entire circumference.
What are the most common defects found in ERW black pipes?
Common defects include incomplete weld penetration, weld spatter, surface scratches from handling, and dimensional variations outside specified tolerances. Internal defects such as inclusions or porosity may occur but require advanced testing methods for detection. Coating defects including holidays, thin spots, or adhesion problems can compromise corrosion protection and require careful inspection using appropriate testing methods.
When should I require enhanced testing beyond standard NDT methods?
Enhanced testing becomes necessary for critical applications involving high pressure, extreme temperatures, or corrosive environments where pipe failure could result in significant safety or environmental consequences. Projects requiring compliance with stringent specifications such as offshore platforms or nuclear facilities may mandate additional testing including enhanced ultrasonic examination, radiographic testing, or specialized mechanical property verification.
How do I verify that coating specifications meet project requirements?
Coating verification requires review of certification documents confirming compliance with specified standards such as DIN 30670 or ISO 21809-1, along with physical testing including adhesion tests, thickness measurements, and holiday detection. Coating inspection should include visual examination for uniformity, proper surface preparation verification, and documentation of application procedures used during manufacturing.
References
1. American Petroleum Institute. "Specification for Line Pipe - API 5L." 46th Edition, American Petroleum Institute Standards Department, 2018.
2. ASTM International. "Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless - ASTM A53/A53M." ASTM International Standards Organization, 2020.
3. European Committee for Standardization. "Hot finished structural hollow sections of non-alloy and fine grain steels - EN 10210." European Standards Publication, 2019.
4. Bai, Yong and Qiang Bai. "Subsea Pipeline Integrity and Risk Management." Gulf Professional Publishing, 2019.
5. Palmer, Andrew and Roger King. "Subsea Pipeline Engineering, Second Edition." PennWell Corporation Technical Publications, 2018.
6. Mohitpour, Moness, Howard Golshan, and Angus Murray. "Pipeline Design & Construction: A Practical Approach, Third Edition." ASME Press Technical Publications, 2017.
