When EPC procurement teams evaluate line pipe for oil and gas transmission projects, the ISO 3183 L360 pipe consistently earns its place at the top of the shortlist. Equivalent to API 5L X52, this grade delivers a well-calibrated balance of yield strength (minimum 360 MPa), tensile strength (minimum 460 MPa), and field weldability that few competing grades can match at the same cost point. Whether you are sourcing for cross-country trunklines in the Middle East or high-pressure gas mains in Southeast Asia, understanding this grade's specifications, applications, and procurement checkpoints is the fastest path to a compliant, on-schedule delivery.
|
|
|
ISO 3183 L360 Pipe Specifications and Properties
Chemical Composition and Mechanical Performance
The trustworthy science in ISO 3183 L360 pipe is what makes it so useful in service. The highest amount of manganese is 1.40 percent, and the carbon equivalent is capped, which helps with fine-grain microalloying. At least 360 MPa of yield strength and 460 MPa of tensile strength are reached by the pipe under PSL 1. Both ends of the range are closed up more by PSL 2. The yield strength is between 360 and 530 MPa, and the tensile strength is between 460 and 760 MPa. That top limit is important because it keeps the material from getting too hard, which can lead to hydrogen-induced cracking (HIC) in sour service conditions.
PSL 1 vs. PSL 2: What Changes Operationally
Standard quality requirements for general pipeline service are covered by PSL 1. More Charpy V-notch impact tests, stricter chemical limits, and controls on the maximum yield strength are all required by PSL 2. For projects that will be exposed to H₂S, even in small amounts, specifying PSL 2 with the "MS" or "QS" suffix gives measurable resistance to sulfide stress cracking (SSCC), which is a very important guaranty for oilfield injection and gathering lines.
Manufacturing Forms and Dimensional Compliance
ISO 3183 L360 pipe can be made as seamless (SMLS), Electric Resistance Welded (ERW), or Submerged Arc Welded in both long (LSAW) and short (SSAW) shapes. The standard sets rules for straightness, out-of-roundness, and wall thickness tolerances. This makes sure that the dimensions are the same across all heat numbers. There must be an EN 10204 3.1 or 3.2 Mill Test Certificate (MTC) for every pipe mill run that shows the full heat number. This is a must for third-party checks on EPC contracts.
Applications and Advantages of ISO 3183 L360 Pipe in Industry
ISO 3183 L360 pipe (standard grade L360/X52) is the standard grade for a good reason in the business world. It works in the most situations that happen in real life when pipes are being used, and it doesn't need the high-end alloy content or special heat treatment that higher grades do.
Here are the main usage situations where this grade always does a good job:
- Crude oil and natural gas branch trunklines: It is the best material for overland transmission corridors where soil movement and pressure cycling are constant factors because it is tough and doesn't bend or break along the length of the line.
- Shallow offshore platform gathering lines and low-H₂S oilfield service: It works with low-H₂S oilfield service and shallow offshore platform gathering lines. In PSL 2 configuration, it can handle mildly sour hydrocarbon streams without the higher cost of duplex or high-alloy options.
- Urban medium-to-high pressure gas distribution mains: Regulatory bodies in the GCC, ASEAN, and South American markets accept L360/X52 for city gas infrastructure where safety gaps are directly affected by controlling wall thickness.
- High-pressure water injection lines: Engineers can change the pipe schedule to meet the injection pressure needs while keeping material costs stable with flexible wall thickness optimization.
These skills in application directly lead to business benefits. ISO 3183 L360 pipe is stronger than ASTM A106 Grade B, which is a pressure vessel pipe that isn't meant to be sent over long distances. It can handle impacts better and keeps its weld seam integrity even when loads change. It has the same or higher pressure-bearing capacity as austenitic stainless steel types but costs a lot less. This is especially important when EPC profit margins are between 5 and 15%.
Comparison and Decision-Making: Selecting the Right Pipe Grade
Choosing a grade is rarely a decision based on a single factor. The following table shows where ISO 3183 L360 pipe is in relation to the grades next to it:
| Grade | Min. Yield (MPa) | Typical Use Case | Relative Cost |
|---|---|---|---|
| L290 / X42 | 290 | Lower gathering of low pressure | Lower |
| L360 / X52 | 360 | Mid-pressure drive made better | Optimized |
| L415 / X60 | 415 | Lines with a lot of pressure | Better |
| L485 / X70 | 485 | Ultra-long corridors with high pressure | A lot more expensive |
ISO 3183 L360 pipe usually comes out on top in cost-performance analyzes for mid-pressure systems when operating pressure, wall thickness optimization, and lifecycle weld repair costs are all taken into account. Procurement teams should resist the urge to over-specify. Upgrading to L415 without a clear benefit in pressure or wall thickness costs more in materials without adding much to safety. On the other hand, lowering to L290 on systems with a working pressure above 6 MPa lowers safety margins and increases the chance of finding non-conformances during a third-party review.
Procurement Guide for ISO 3183 L360 Pipe
Certifications and Documentation You Must Verify
Before sending out an RFQ, make sure that any possible ISO 3183 L360 pipe suppliers have a valid API 5L license. Make sure the license expiration date fits within the review window for your project. A certificate that expires in the middle of fabrication causes expensive hold points. If you need more than API 5L, ask for EN 10204 3.1 MTCs as a minimum. For owner-audited projects, 3.2 certification with a chosen third-party inspector (SGS, Bureau Veritas) may be required by contract. The NDT should include ultrasonic testing (UT) of the whole weld seam and pipe body, with x-rays (RT) for important heats.
Evaluating Supplier Capability Against Project Requirements
A good manufacturer should show that their mill has the potential to handle the amount of steel you need, that their raw materials come from approved domestic steel mills, and that they have experience with owner-witnessed checks. Lead time performance on large-diameter, thick-wall orders is a real difference. Suppliers who can confirm delivery within seven days for stock sizes really protect schedules on projects that need to be done quickly.

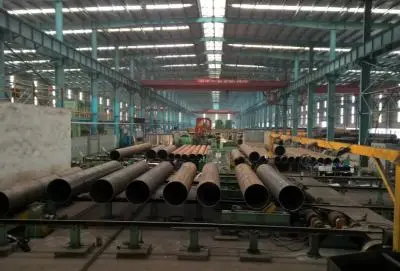

Longma Group was founded in 2003 and has a 230,000 m² factory in Hebei, China. They make ERW and LSAW steel pipes to ISO 3183 standards in grades L245 through L555. The company has a current API 5L certificate, an ISO 9001 quality management certificate, and supports EN 10204 3.1/3.2 MTC issuance. It produces more than 1,000,000 tons of steel each year and gets its raw materials from Shagang, HBIS, and Bao Steel. We offer anti-corrosion services in-house, such as 3LPE, FBE, and 2PP treatment, which cuts down on the time needed for third parties to coordinate on important items that are on the critical path. Since Longma Group is a certified ISO 3183 L360 pipe manufacturer, they offer full documentation packages that include ITP, MPS, and MTC and support owner-witnessed inspections.
Conclusion
The ISO 3183 L360 pipe grade is in a very useful place in the world of buying pipelines. Because of its mechanical properties, ability to handle sour service under PSL 2, and wide supply for production, it is the best choice for most mid-pressure oil and gas transportation projects. Teams that choose suppliers based on certifications, NDT coverage, MTC traceability, and delivery reliability that are in line with what the grade can do will lower the risk of technical non-conformance and protect project margins. The last thing that needs to be done to turn a good material design into a shipped, checked, on-time product is choosing a qualified, experienced manufacturer.
FAQ
What is the difference between ISO 3183 L360 and API 5L X52?
In terms of purpose, they are the same. The minimum yield for L360 is 360 MPa, which is the ISO standard. The minimum yield for X52 is 52,000 psi, which is the API standard. Chemical and mechanical needs are very similar between the two standards, and most owner guidelines accept either one.
Can L360 pipe be used in sour service environments?
Yes, if you are told to go to PSL 2 with the letters "MS" or "QS" next to it. For this setup, HIC and SSCC tests are needed, and there is a maximum yield strength limit in place to stop hydrogen embrittlement.
What NDT methods are standard for this grade?
It is common practice to test the weld seam and pipe body with ultrasound. On PSL 2 and owner-specified heats, x-rays are used to check the weld. The standard inspection procedure ends with hydrostatic testing to 100% of the minimum yield strength that was given.
What coatings extend service life for buried or subsea applications?
Most of the time, three-layer polyethylene (3LPE), fusion-bonded epoxy (FBE), and two-layer polypropylene (2PP) coatings are used to protect the outside of L360 line pipe for buried service on land and in shallow water.
Is L360 available in seamless form?
Yes, ISO 3183 L360 pipe comes in four different grades: seamless, ERW, LSAW, and SSAW. The grade you choose depends on the width, wall thickness, and project requirements.
