It is very important to find a trustworthy ISO 3183 L555 pipe manufacturer when you need to buy high-strength line pipe for tough sour service uses. Longma Group is one of the biggest companies in China that makes PSL2-grade sour service pipes. Every year, they send over 1,000,000 tonnes to oil and gas companies in the Middle East, Australia, Southeast Asia, and other places. Our factory uses modern thermomechanical controlled processing along with thorough third-party testing to make sure that every pipe can withstand the harsh conditions of H₂S-rich environments and extreme working conditions.
|
|
|
Detailed Technical Insights of ISO 3183 L555 PSL2 Pipes
Knowing the technical details of these high-performance pipes helps engineering teams make smart decisions about what to buy that are in line with project requirements.
Chemical Composition and Microstructure
Our ISO 3183 L555 pipe is made from very clean low-carbon steel that has a lot of manganese in it and is mixed with niobium, vanadium, and titanium to make it stronger. This exact recipe creates a dual-phase microstructure of ultrafine bainite and acicular ferrite that is very strong without losing its flexibility. The controlled rolling process makes the grain size more uniform, which makes the steel stronger and easier to weld than regular normalised steels.
Mechanical Performance Specifications
The material delivers a minimum yield strength of 555 MPa, and the minimum tensile strength is between 625 and 825 MPa. The minimum elongation is 19.5%. This performance profile lets the wall thickness be cut by 15% to 25% compared to the L485 grade at the same working pressures. This saves a lot of steel on long-diameter projects with large diameters. For PSL2 pipes, the yield-to-tensile ratio usually stays below 0.93, which means they can handle enough strain stiffening for field bends.
Manufacturing Process Excellence

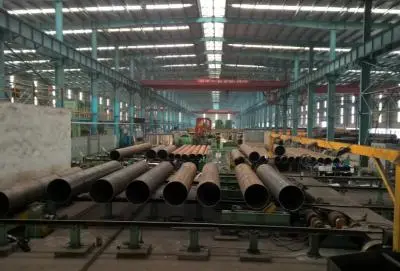

Longma Group's 230,000-square-meter production facility uses thermomechanically controlled processing. During hot rolling, precise temperature control is combined with faster cooling to get the best microstructures. Our LSAW (Longitudinal Submerged Arc Welded) and ERW (Electric Resistance Welded) production lines can handle thick-walled, large-diameter shapes that are best for high-pressure gearbox systems. A post-weld heat treatment evens out the fusion zone, and adding calcium wire during the steelmaking process controls the shape of the inclusions, which is important for HIC protection.
Corrosion Resistance Mechanisms
The ability to provide sour service comes from having very low amounts of sulphur and phosphorus, along with changed inclusion shape that is achieved through calcium treatment. This way of working with metals stops hydrogen from building up in places that cause cracks when they come into contact with H₂S environments. Our material always passes the NACE TM0284 test for HIC resistance and the NACE TM0177 test for sulphide stress cracking resistance. This is shown on the mill test certificates that come with every shipment.
Testing Protocols and Certifications
Every pipe goes through full-length automated ultrasonic testing to find internal cracks, radiographic inspection of weld seams, and hydrostatic testing to pressures higher than 90% of the minimum yield strength that was specified. Charpy V-notch impact testing proves that the material is tough at low temperatures, and drop weight tear testing proves that it doesn't allow ductile fractures to spread. Longma Group has ISO 9001, ISO 14001, and ISO 18001 system certifications, as well as API 5L certification. SGS, TUV, or Lloyd's Register can do third-party inspections.
Global Procurement Guide for ISO 3183 L555 PSL2 Pipes from China
To successfully source goods from other countries, you need to carefully consider each seller and have a good grasp of the processes involved.
Identifying Qualified Manufacturers
Chinese companies that work on oil and gas projects around the world keep their API 5L and ISO 3183 product certifications up to date by having them checked by Petroleum and Petrochemical Inspection (CPI) or a similar certification body. Longma Group has been making things for 20 years and has long-term supply relationships with engineering companies working on MOBIL OIL AUSTRALIA projects. This shows that they can consistently make things that are needed for important projects. Check that the steel that potential suppliers get comes from reputable mills. For example, we use feedstock from Bao Steel, HBIS, and Shougang to make sure that the chemistry and cleanliness levels stay the same.
Pricing Structure and Lead Times
The price of ISO 3183 L555 pipe on the market right now ranges from $850 to $1,200 per tonne FOB Chinese ports. The price changes depending on the wall thickness, diameter, additional testing needs, and order volume. Orders that are more than 500 tonnes usually get a discount of 5 to 8 percent. Standard production wait times are 45 to 60 days from the time an order is confirmed. This time includes getting the materials, rolling them, heating them, checking them, and making the paperwork. With extra fees, rush orders can cut this time down to 30 days.
Logistics and Shipping Solutions
Shipping pipes with a width of less than 12 inches in containers is a good option, but it gets more expensive when the job requires more than 1,000 tonnes of cargo. Longma Group handles logistics through the ports of Tianjin and Qingdao, setting up the right Incoterms from FOB to CIF based on what the client wants. Proper pipe end protection, wrapping, and moisture shields keep pipes from getting damaged during transport. Marine insurance protects the value of the shipment against loss or damage.
Supplier Verification Methods
Factory audits are a smart way to buy things because they check the factory's production capabilities, quality systems, and the status of the equipment's calibration. Ask for recent mill test certificates that show the product meets your specific requirements, and for large orders, think about having a third party watch the production process and test the product. Longma Group lets client inspectors come in and keeps the lines of communication open throughout the manufacturing process. At important points in the production process, photos are taken to show what was done.
Regulatory Compliance Considerations
Commercial invoices, packing lists, certificates of origin, and mill test certificates that meet EN 10204 3.1 or 3.2 standards are all types of export documentation. Countries where your goods are going may need extra certifications or product registrations. We know how to handle import requirements in markets in the Middle East, Australia, and Southeast Asia. By coordinating on paperwork ahead of time, customs clearance goes smoothly and the project doesn't get held up.
Why Choose Longma Group's ISO 3183 L555 PSL2 Sour Service Pipe Solution?
Our manufacturing knowledge and focus on the needs of our clients give demanding pipeline projects real benefits.
Manufacturing Capabilities and Scale
Since 2003, Longma Group has grown into a complete steel pipe maker that can make more than 1,000,000 tonnes of pipes every year. Our LSAW and ERW production lines can work with widths ranging from 16 inches to 60 inches and wall thicknesses up to 40 mm. This range of capacities covers all the needs of transmission pipelines, from trunk lines to gathering systems. The declared capital of 441.8 million yuan helps us keep our competitive edge by investing in quality systems and upgrading our tools on a regular basis.
Quality Assurance Systems
We do full quality control, from checking the raw materials to doing the final inspection. Every steel coil and plate comes with a certified test report from the source mills, which we check by inspecting it when it comes in. In-process tracking compares the rolling temperatures, cooling rates, and weld parameters to process windows that have already been set. Final testing includes checking the dimensions, making sure the mechanical properties are correct, and looking at the product without damaging it. This is all spelt out in detailed inspection test plans (ITP) and manufacturing procedure specifications (MPS), which are sent with every shipment.
Customization and Technical Support
When engineering teams are making specifications and preparing bids, they get quick technology help. We change the factors used to make pipes so that they meet specific needs. For example, we raise the calcium treatment levels for harsh sour service, change the heat treatment cycles for toughness requirements in the Arctic, and add extra testing methods that go above and beyond what is required by law. This flexibility comes in handy when the needs of a project call for performance that goes beyond what is normally available in a catalogue.
Proven Project Experience
Large engineering firms that build pipeline systems in tough regions use our supply chain. Our output stability and technical compliance are proven by projects in high-H₂S fields in the Middle East, offshore developments in Australia, and cross-country transmission lines in Southeast Asia. Client reviews stress how reliable our delivery is and how quickly we can solve problems when situations on the ground mean that we need to make changes to the specifications or send parts of the shipment more quickly.
Comprehensive Service Portfolio
Longma Group does more than just make pipes. They also do construction work, such as beveling, fitting, and special end preparations for welding in the field. FBE (Fusion Bonded Epoxy), 2PP (Two-Layer Polypropylene), 3LPE (Three-Layer Polyethylene), and hot-dip galvanising are all used at our coating facilities, so clients don't have to deal with multiple vendors. This built-in feature makes purchasing easier and makes sure that coating adhesion is compatible with pipe surface preparation.
Conclusion
Getting ISO 3183 L555 pipe from reliable Chinese makers is a great way for oil and gas infrastructure projects with strict budgets and technical requirements to save money. The grade's high strength-to-weight ratio cuts down on the amount of material needed while still providing the corrosion resistance and low-temperature toughness needed for safe use in harsh environments. Because of our large manufacturing scale, quality certifications, and track record of successful projects, Longma Group is a reliable partner for procurement managers and engineering contractors who need quick service and consistent product quality. Our detailed documentation, adaptable customisation options, and integrated coating services meet all of your pipeline material needs at a reasonable cost and in a timely manner.
FAQs
Is L555 PSL2 suitable for high-H₂S sour service environments?
ISO 3183 L555 pipe is very resistant to hydrogen-induced cracking and sulphide stress cracking when it is properly treated with calcium and ultra-low sulphur and phosphorus chemistry. The material has to pass the NACE TM0284 and TM0177 tests, and the results must be written down on mill certificates. Longma Group offers material that meets these needs and is qualified for sour service.
What are typical lead times for large-volume orders?
Standard production schedules need 45 to 60 days from the confirmation of the order to get the raw materials, make the pipes, heat treat them, test them fully, and prepare the paperwork. Due to steel mill delivery schedules, orders over 2,000 tonnes may take up to 75 days to arrive. With advance planning, you can speed up production and cut lead times to 30 days.
Can specifications be customized beyond standard ISO 3183 requirements?
For example, engineering needs often call for extra testing that includes more Charpy impact sites, better non-destructive examination sensitivity, or different chemical limits. Longma Group can handle these customisations by changing the way they are made and inspecting them more thoroughly. Reviewing the specifications early on during the quote process lets you get accurate price and scheduling.
Partner with a Trusted ISO 3183 L555 Pipe Manufacturer
When purchasing managers need a reliable source of high-strength sour service line pipe, Longma Group's production capacity, technical know-how, and quality certifications provide the dependability needed for project success. Our experienced engineering team responds quickly to your requests for quotes that take into account your unique needs for width, wall thickness, length, and other factors. Contact info@longma-group.com to talk about the needs of your upcoming pipeline project and get detailed technical proposals that show how our ISO 3183 L555 pipe solutions can help you get the best deals on materials while still meeting the strictest performance standards.
