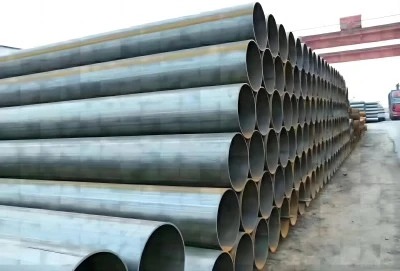

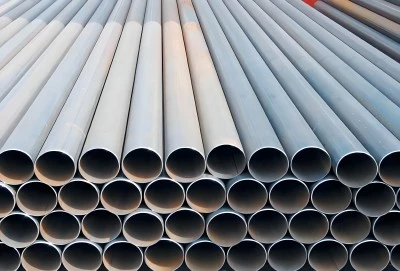

EN10210 Pipe
Grades:S235,S275,S355
Outer Diameter: 1/2"-72"
Thickness:SCH10-SCH160
Fastest Delivery Time: 7 Days+
Stock Quantity:50-150Tons
Introduction of EN10210 Pipe:
Product Name: EN10210 Pipe
Standard: S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355K2H
Welding Type: ERW(Electrical Resistance Weld), HFW(High Frequency Weld), LSAW(Longitudinally Submerged Arc Welding), DSAW(Double Submerged Arc Welding), SSAW(Spirally Submerged Arc Welding)
Outer Diameter: 3"-80" (88.9mm--2032mm)
Thickness: SCH10-SCH160 (6.35mm-59.54mm)
Length: 6m-18m
End: BE(Beveled Ends), PE(Plain Ends)
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test
Fastest Delivery Time: 7 Days for normal specification
Specification:
| （ ANSI B36.10 B36.19M） Outside Diameter amd Wall Thickness | |||||||||||||||||||
| NPS | OD | Norminal Wall Thickness | |||||||||||||||||
| INCH | DN | MM | 5s | 10s | 10 | 20 | 30 | 40s | STD | 40 | 60 | 80s | XS | 80 | 100 | 120 | 140 | 160 | XXS |
| 1/8 | 6 | 10.3 | -- | 1.24 | -- | -- | -- | 1.73 | 1.73 | 1.73 | -- | 2.41 | 2.41 | 2.41 | -- | -- | -- | -- | -- |
| 1/4 | 8 | 13.7 | -- | 1.65 | -- | -- | -- | 2.24 | 2.24 | 2.24 | -- | 3.02 | 3.02 | 3.02 | -- | -- | -- | -- | -- |
| 3/8 | 10 | 17.1 | -- | 1.65 | -- | -- | -- | 2.31 | 2.31 | 2.31 | -- | 3.2 | 3.2 | 3.2 | -- | -- | -- | -- | -- |
| 0.5 | 15 | 21.3 | 1.65 | 2.11 | -- | -- | -- | 2.77 | 2.77 | 2.77 | -- | 3.73 | 3.73 | 3.73 | -- | -- | -- | 4.78 | 7.47 |
| 0.75 | 20 | 26.7 | 1.65 | 2.11 | -- | -- | -- | 2.87 | 2.87 | 2.87 | -- | 3.91 | 3.91 | 3.91 | -- | -- | -- | 5.56 | 7.82 |
| 1 | 25 | 33.4 | 1.65 | 2.77 | -- | -- | -- | 3.38 | 3.38 | 3.38 | -- | 4.55 | 4.55 | 4.55 | -- | -- | -- | 6.35 | 9.09 |
| 1.25 | 32 | 42.2 | 1.65 | 2.77 | -- | -- | -- | 3.56 | 3.56 | 3.56 | -- | 4.85 | 4.85 | 4.85 | -- | -- | -- | 6.35 | 9.7 |
| 1.5 | 40 | 48.3 | 1.65 | 2.77 | -- | -- | -- | 3.68 | 3.68 | 3.68 | -- | 5.08 | 5.08 | 5.08 | -- | -- | -- | 7.14 | 10.15 |
| 2 | 50 | 60.3 | 1.65 | 2.77 | -- | -- | -- | 3.91 | 3.91 | 3.91 | -- | 5.54 | 5.54 | 5.54 | -- | -- | -- | 8.74 | 11.07 |
| 2.5 | 65 | 73 | 2.11 | 3.05 | -- | -- | -- | 5.16 | 5.16 | 5.16 | -- | 7.01 | 7.01 | 7.01 | -- | -- | -- | 9.53 | 14.02 |
| 3 | 80 | 88.9 | 2.11 | 3.05 | -- | -- | -- | 5.49 | 5.49 | 5.49 | -- | 7.62 | 7.62 | 7.62 | -- | -- | -- | 11.13 | 15.24 |
| 3.5 | 90 | 101.6 | 2.11 | 3.05 | -- | -- | -- | 5.74 | 5.74 | 5.74 | -- | 8.08 | 8.08 | 8.08 | -- | -- | -- | -- | -- |
| 4 | 100 | 114.3 | 2.11 | 3.05 | -- | -- | -- | 6.02 | 6.02 | 6.02 | -- | 8.56 | 8.56 | 8.56 | -- | 11.13 | -- | 13.49 | 17.12 |
| 5 | 125 | 141.3 | 2.77 | 3.4 | -- | -- | -- | 6.55 | 6.55 | 6.55 | -- | 9.53 | 9.53 | 9.53 | -- | 12.7 | -- | 15.88 | 19.05 |
| 6 | 150 | 168.3 | 2.77 | 3.4 | -- | -- | -- | 7.11 | 7.11 | 7.11 | -- | 10.97 | 10.97 | 10.97 | -- | 14.27 | -- | 18.26 | 21.95 |
| 8 | 200 | 219.1 | 2.77 | 3.76 | -- | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 10 | 250 | 273.1 | 3.4 | 4.19 | -- | 6.35 | 7.8 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
| 12 | 300 | 323.9 | 3.96 | 4.57 | -- | 6.35 | 8.38 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 14 | 350 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | -- | 9.53 | 11.13 | 15.09 | -- | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | -- |
| 16 | 400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | -- | 9.53 | 12.7 | 16.66 | -- | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | -- |
| 18 | 450 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | -- | 9.53 | 14.27 | 19.05 | -- | 12.7 | 23.83 | 29.36 | 34.96 | 39.67 | 45.24 | -- |
| 20 | 500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | -- | 9.53 | 15.09 | 20.62 | -- | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | -- |
| 22 | 550 | 558.8 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | -- | 9.53 | -- | 22.23 | -- | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | -- |
| 24 | 600 | 609.6 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | -- | 9.53 | 17.48 | 24.61 | -- | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | -- |
| 26 | 650 | 660.4 | -- | -- | 7.92 | 12.7 | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 28 | 700 | 711.2 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 30 | 750 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 32 | 800 | 812.8 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | 17.48 | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 34 | 850 | 863.6 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | 17.48 | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 36 | 900 | 914.4 | -- | -- | 7.92 | 12.7 | 15.88 | -- | 9.53 | 19.05 | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 38 | 950 | 965.2 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 40 | 1000 | 1016 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 42 | 1050 | 1066.8 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 44 | 1100 | 1117.6 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 46 | 1150 | 1168.4 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 48 | 1200 | 1219.2 | -- | -- | -- | -- | -- | -- | 9.53 | -- | -- | -- | 12.7 | -- | -- | -- | -- | -- | -- |
| 52 | 1300 | 1321 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 56 | 1400 | 1422 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 60 | 1500 | 1524 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 64 | 1600 | 1626 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 68 | 1700 | 1727 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 72 | 1800 | 1829 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 76 | 1900 | 1930 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| 80 | 2000 | 2032 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
Chemical Composition and Mechanical Properties:
| Standard | Grade | Chemical Composition(max)% | Mechanical Properties(min) | |||||
| C | Si | Mn | P | S | Tensile Strength(Mpa) | Yield Strength(Mpa) | ||
| EN10210 | S235JRH | 0.17 | - | 1.4 | 0.04 | 0.04 | 360 | 360 |
| S275J0H | 0.2 | - | 1.5 | 0.035 | 0.035 | 410 | 410 | |
| S275J2H | 0.2 | - | 1.5 | 0.03 | 0.03 | 410 | 410 | |
| S355J0H | 0.22 | 0.55 | 1.6 | 0.035 | 0.035 | 470 | 470 | |
| S355J2H | 0.22 | 0.55 | 1.6 | 0.03 | 0.03 | 470 | 470 | |
| S355K2H | 0.22 | 0.55 | 1.6 | 0.03 | 0.03 | 470 | 470 | |
Our Advantages for EN10210 Pipe:
· Competitive Price: We have long-term stable cooperation with raw material factories, mature and complete production supporting facilities, a rigorous quality control system, and an integrated model that keeps our production costs at a relatively low level.
· Fast Delivery Time: The production of steel pipes with standard specification can be completed in as fast as 7 days.
· Complete Certification: All types of certificates are available, including API 5L certificate, ISO 9001 certificate, ISO 14001 certificate, FPC certificate, Environmental Quality System certificate, and more.
· Advanced Production Equipment: We imported the equipment from Germany and developed independently four production equipments.
· Professional Team: We have over 300 employees, including more than 60 technical personnel, and possesses an independent equipment research team.
· Comprehensive Testing Facilities: We are equipped with various testing facilities, including but not limited to online ultrasonic automatic flaw detectors, industrial X-ray television and other essential testing equipment.
Application:

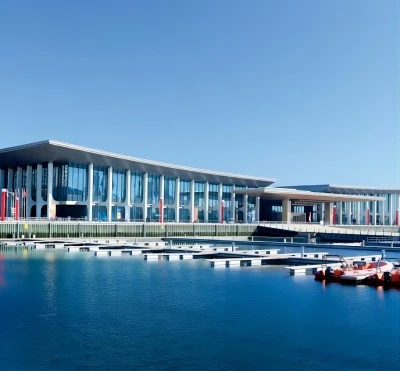

· Structural support for bridge, building construction

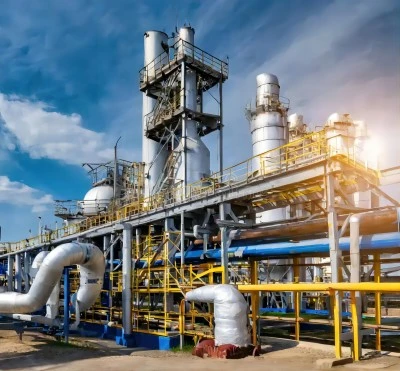

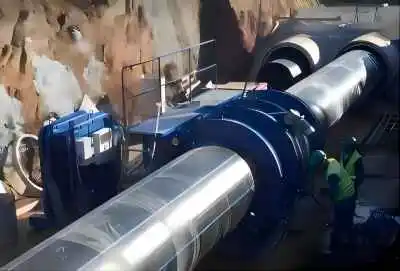

· Oil and gas transportation
· Heat exchangers and boilers
Longma Group:
Hebei Longma Group Limited(LONGMA GROUP) is one of China leading ERW/LSAW steel pipe manufacturers since 2003, with a registered capital of 441.8 billion, covering an area of 230000 square meters. The company specializes in the production: large-diameter, thick-walled, double-sided, sub-arc-seam, welding steel pipe, LSAW-Longitudinal Submerged Arc Welded, ERW steel pipes. By the end of 2023, the company's annual output exceeded 1000000 tons.
For inquiries or orders, please contact us at info@longma-group.com, and let us partner with you in building a better tomorrow with EN10210 Pipes.
FAQ:
Q：What distinguishes EN10210 Pipes from other structural pipes?
A：EN10210 Pipes stand out for their compliance with stringent European standards, ensuring superior quality, performance, and reliability.
Q：Are EN10210 Pipes suitable for outdoor applications?
A：Yes, EN10210 Pipes are highly resistant to corrosion and weathering, making them ideal for outdoor installations where exposure to environmental elements is a concern.
Q：Can EN10210 Pipes be customized to specific project requirements?
A：Absolutely! Longma offers customization services to tailor EN10210 Pipes according to unique project specifications, ensuring precise fit and optimal performance.
Q：Are EN10210 Pipes compatible with standard welding techniques?
A：Yes, these pipes exhibit excellent weldability, allowing for seamless integration using standard welding processes such as arc welding and MIG welding.
