EN10219-1 S355J0H Pipe

EN10219-1 S355J0H Pipe - European Standard High-Strength Structural Hollow Section for Heavy-Duty Engineering Applications

Hebei Longma Group delivers professional-grade EN10219-1 S355J0H Pipe manufactured to strict European standards for high-strength structural applications. Founded in 2003, our factory covers an area of 230000 square metres, with an annual output of over 1 million tons, and has more than 20 years' expertise in ERW and LSAW Steel Pipe Manufacturing. Our product has a minimum yield strength of 355 MPa, guarantyd impact toughness of 27J at 0°C, outer diameters from 60.3mm to 2032mm and wall thickness from 4mm to 100mm. We have comprehensive traceability from mills such as Bao Steel, HBIS, Shagang, etc. providing constant mechanical properties and dimensional tolerances for your structural engineering applications.

What Makes S355J0H Grade Superior for Structural Applications

The product is a cold-formed welded structural hollow segment tailored for severe load-bearing applications. The technical benefits may be seen in the grade designation: S355 is a minimum yield strength of 355 MPa, J0 is a Charpy V-notch impact energy of 27 Joules at 0°C and H is a hollow section shape.

This grade has much more strength than normal S235 structural steel. You have the advantage of higher load-bearing capacity, while still enjoying outstanding weldability and manufacturing qualities. The precise chemical composition and optimised carbon equivalent values for structural welding enable dependable joint performance in diverse production procedures.

The guaranteed impact properties at 0°C make this grade particularly suitable for structures exposed to temperature variations. Unlike S355JR without specified impact requirements, the J0 designation provides additional safety margins for dynamic loads and changing environmental conditions.

Technical Specifications and Mechanical Properties of EN10219-1 S355J0H Pipe

The mechanical properties comply fully with EN10219-1 requirements. Each production batch undergoes tensile testing, impact testing at 0°C, and dimensional verification according to EN10219-2 tolerance standards.

Manufacturing Excellence and Quality Assurance

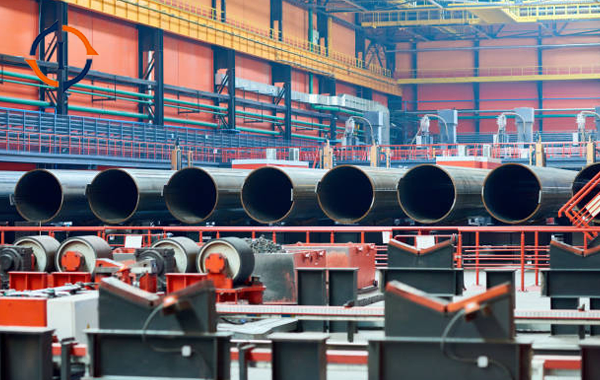

Our manufacturing process for the product incorporates advanced cold-forming and welding technologies. We utilize high-frequency electric resistance welding (ERW) methods that create robust longitudinal seams with consistent quality throughout production runs.

Quality control begins with incoming material inspection from certified steel mills. Chemical composition analysis verifies carbon equivalent values remain within optimal ranges for structural welding. Each coil receives full traceability documentation linking finished pipes to original steel mill certifications.

During production, continuous monitoring systems track forming parameters, welding temperatures, and cooling rates. Our inspection equipment includes eddy current testing systems for weld seam integrity and ultrasonic testing capabilities for critical applications. Dimensional verification uses precision measuring instruments calibrated to EN10219-2 standards.

Samples are taken from every manufacturing heat for mechanical testing. Yield strength, ultimate tensile strength and elongation parameters are verified using tensile specimens. Charpy V-notch specimens are impact tested at 0°C in temperature controlled chambers to ensure that each heat satisfies the minimum 27J standard.

Surface examination will reveal any laminations, fissures or inconsistencies in the dimension. We are ISO9001 certified and have systems in place to cover every step from raw material receipt to final product despatch.

Comprehensive Value-Added Services

Beyond standard pipe manufacturing, we provide complete fabrication and surface protection solutions tailored to your project requirements. Our fabrication services include precision cutting to specified lengths, end preparation for welding or mechanical connections, and hole drilling for structural connections.

For corrosion protection, we offer multiple coating options. Hot-dip galvanizing provides long-term protection for outdoor structural applications. FBE coating delivers excellent adhesion and corrosion resistance. Multi-layer systems including 3LPE coating offer enhanced protection for particularly demanding environments.

Our technical team provides support throughout your procurement process. We assist with material selection, dimensional optimization, and compliance verification. Complete documentation packages include Mill Test Certificates according to EN10204 3.1, dimensional inspection reports, mechanical test results, and impact test certifications.

Strategic Applications Across Industries

Construction and infrastructure projects utilize EN10219-1 S355J0H Pipe for structural frameworks requiring high strength-to-weight ratios. Stadium roof structures, airport terminal frameworks, and pedestrian bridge systems benefit from the combination of load-bearing capacity and architectural appearance.

Industrial facilities incorporate these hollow sections into crane runways, equipment support structures, and machinery frames. The excellent impact properties at 0°C ensure reliability in facilities operating across temperature ranges. Manufacturing plants, warehouses, and processing facilities rely on this grade for structural integrity.

Heavy equipment manufacturers select S355J0H for chassis components, lifting equipment booms, and support structures where high strength reduces component weight while maintaining safety factors. The predictable weldability simplifies fabrication processes and reduces production costs.

Energy sector applications include support structures for solar panel installations, wind turbine towers, and transmission line support systems. The enhanced mechanical properties support longer spans and reduced foundation requirements compared to lower-strength alternatives.

Material Traceability and Documentation Support

Every products shipment includes comprehensive quality documentation supporting your project approval processes. Our standard documentation package contains Mill Test Certificates traceable to original steel mill heat numbers, chemical composition analysis results, and complete mechanical property test reports.

Impact test certificates show Charpy V-notch findings at 0°C for each manufacturing heat. Outside diameter, wall thickness, length and straightness measurements are confirmed to EN10219-2 tolerances by dimensional inspection reports. Weld quality documentation is the confirmation of findings of nondestructive testing of longitudinal seams.

For third-party verification on international projects we have working relationships with organisations such as BV, TUV, SGS and Intertek for inspections. We provide witness testing, factory audits and specialised inspection procedures as defined in your technical standards.

Our documentation system digitally stores the data so you may easily access your production history. It facilitates warranty claims, extra material purchases to meet the original specifications, and long term project maintenance needs.

FAQ

Q: What is the difference between S355J0H and S355J2H for structural application?

A: The main difference is the impact testing temperature. S355J0H has an impact energy of 27J at 0°C, whereas S355J2H is tested at -20°C. S355J0H provides a good performance for most applications in temperate environment at cheaper cost. For projects with special needs for low temperature service or operating in very cold locations, it should be specified S355J2H for extra safety margins.

Q：Can the products accommodate galvanizing?

A：Yes, these pipes are suitable for hot-dip galvanizing when chemical composition is properly controlled. Silicon and phosphorus content must avoid the Sandelin curve range where reactive galvanizing occurs. We control steel chemistry to ensure smooth, uniform zinc coatings. You should specify galvanizing requirements during ordering so we can optimize material selection accordingly.

Q：What delivery timeframes should buyers expect?

A：Standard sizes from our regular production schedule ship within 7 days for quantities up to 100 tons. Custom sizes or specialized requirements typically require 15-25 days depending on specifications and order volume. Large project orders exceeding 500 tons follow mutually agreed production schedules coordinated with your construction timeline.

Q：How do cold-forming processes affect mechanical properties?

A：Cold-forming increases yield strength through work hardening, particularly at corners of square and rectangular sections. EN10219-1 accounts for these effects in specified mechanical properties. Some residual stresses occur during forming, but remain within acceptable limits for structural applications. For critical applications requiring stress relief, we provide normalized delivery condition upon request.

Q：What inspection protocols verify weld seam quality?

A：Our standard inspection includes 100% automated eddy current testing of longitudinal weld seams. This non-destructive method detects surface and near-surface discontinuities throughout the entire weld length. For enhanced quality requirements, we provide ultrasonic testing, radiographic inspection, or hydrostatic testing per your specifications. All inspection results are documented in quality certificates accompanying shipments.

Contact Us

Request detailed quotations, technical specifications, and delivery schedules by contacting our international sales team at info@longma-group.com.  We provide customized solutions for your EN10219-1 S355J0H Pipe structural engineering projects worldwide.
