EN10219-1 S355JRH Pipe

EN10219-1 S355JRH Pipe – High-Strength Cold-Formed Structural Hollow Section for Heavy-Duty Engineering Applications

Hebei Longma Group manufactures EN10219-1 S355JRH Pipe according to European standard EN10219-1, delivering cold-formed welded structural hollow sections with a minimum yield strength of 355 MPa. LONGMA GROUP 20+ years manufacturing experience and yearly production capacity of 1,000,000+ tons in a 230,000㎡ factory We provide high-strength pipes from diameter 60.3mm to 2032mm and wall thickness from 4mm to 100mm Certificates of API 5L, ISO9001 and ISO14001 are available, and our delivery time is as short as 7 days. Our products are supplied to more than 90 countries and cater to building, infrastructure and industrial projects globally.

What Makes EN10219-1 S355JRH Pipe Essential for Structural Engineering

It is a welded structural hollow section, cold formed for use when a high load bearing capacity and structural efficiency are required. The "S355" refers to the minimum yield strength, which is 355 MPa, or almost 50% stronger than the regular S235 grades.

"JR"indicates impact testing at ambient temperature (+20°C) with a minimum energy absorption of 27 Joules. "H" indicates that it is a hollow structural part. This mix is useful for making frames, bridges and industrial constructions where strength optimisation is important.

The cold-forming process provides close dimensional tolerances and a beautiful surface finish. This production process offers cost benefits over hot-finished alternatives, while preserving outstanding weldability and fabrication qualities for current building applications.

Technical Specifications and Mechanical Properties

Understanding the precise specifications helps engineers select the right material for demanding structural applications.

The regulated chemical compositions provide superior weldability and constant mechanical properties. Because of the better strength to weight ratio, engineers may use less material and yet preserve the integrity of the structure.

Core Advantages for Heavy-Duty Construction Projects

The main advantage of S355JRH pipes is the high strength structural performance. 355 MPa yield strength offers higher load bearing capacity than alternative lower grades and enables optimised structural designs with decreased cross sections.

Metallurgical chemistry is carefully regulated for excellent weldability. The low carbon equivalent values allow for reliable welding using normal MIG, TIG or SAW procedures without the need for preheating in most situations.

Material efficiency drives cost-effectiveness. The increased strength means that designers may specify lighter sections, using less steel, and decreasing shipping and installation costs, while still fulfilling structural requirements.

Specification is variable with wide availability across dimensions. LONGMA GROUP manufactures pipes from 60.3mm to 2032mm in diameter and 100mm in thickness. This range enables a wide variety of technical applications from architectural columns to bridge components.

Cold forming procedures provide better dimensional precision. Tighter tolerances on straightness, out-of-roundness and wall thickness uniformity ease manufacturing and assembly on building sites.

Good surface quality allows for direct coating application. Cold-forming process offers a flat surface that may be galvanised, painted or otherwise protected without substantial surface preparation.

Primary Applications in Engineering Sectors

S355JRH pipe is widely used in the fabrication of structural frames. The hollow sections are used for columns, beams and bracing systems in high-rise structures where space efficiency and load capacity are critical.

These pipes are used in bridge building in infrastructure projects. This combination of high strength and moderate impact resistance has use for pedestrian walkways, bridge railings, support trusses and temporary bracing systems.

Industrial facilities demand S355JRH for platform constructions and equipment supports. The material is well suited for static and mild dynamic loads in manufacturing plants, warehouses and processing facilities.

These pipes are preferred for exposed structural parts in architectural steelwork. Smooth surface finish and accurate measurements make them excellent for exposed applications such as in stadiums, airports and commercial buildings where appearance matters.

Marine and coastal secondary constructions use S355JRH for handrails, access platforms and non principal load bearing components. Although not designed for severe low temperature service, the room temperature impact qualities give enough safety margins for many coastal applications.

Manufacturing Excellence and Quality Assurance

LONGMA GROUP sources raw materials exclusively from premium Chinese steel mills including Bao Steel, HBIS, Shougang, and TISCO for EN10219-1 S355JRH Pipe. This selective sourcing ensures consistent chemical composition and mechanical properties across production batches.

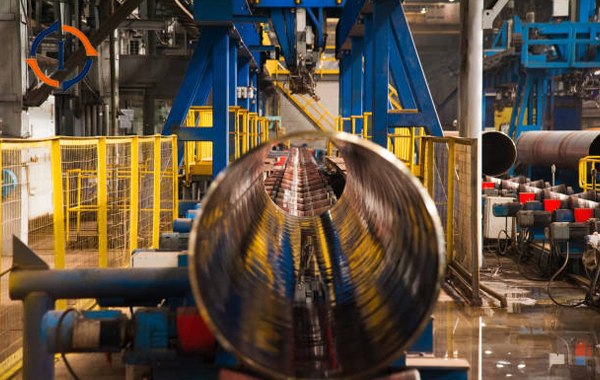

Sophisticated equipment provides accurate dimensional control in cold-forming procedures. The manufacturing process is monitored by automated systems, which check wall thickness, diameter and straightness in accordance with the EN 10219-2 tolerances.

In particular, the quality of the weld is constantly monitored. After leaving the manufacturer, pipes are subjected to non-destructive testing of the longitudinal weld seam (eddy current and ultrasonic examination) to identify any internal discontinuities.

Mechanical testing is used to check grade compliance. All production lots undergo tensile and Charpy V-notch impact testing at +20°C and test results are recorded on Mill Test Certificates (MTC) as per EN 10204 3.1 standard.

All manufacturing stages are completely traceable. Heat numbers cross-reference completed pipes to the initial steel coil, welding conditions, heat treatment data, and inspection findings, giving complete records for quality audits.

Value Added Services for Project Needs

Less service cuts mean the pipes are available in the right lengths for the job. LONGMA GROUP offers precision cutting to save on-site fabrication time and minimise material waste with tolerances to building standards.

Finishing choices include threading, bevelling and grooving. These fabrication services will prepare the pipe for a certain technique of connection, minimising field labour and enhancing the quality of the installation.

Surface protection prolongs service life in corrosive situations. Hot-dip galvanising, FBE coating and multi-layer coating methods are offered to meet the exposure circumstances and durability requirements of the project.

In more complicated applications, each pipe is identified by a unique custom tag. LONGMA GROUP Permanent Marking of grade, dimensions, heat numbers and project specific codes as per client specifications.

Complete Documentation Support for International Projects

Mill Test Certificates (MTC) according to EN 10204 3.1 accompany every shipment. These documents provide complete chemical analysis, mechanical test results, dimensional verification, and heat number traceability.

Third-party inspection coordination is available upon request. LONGMA GROUP works with international agencies including BV, TUV, SGS, and Intertek to provide independent verification when specified by contracts or regulations.

CE marking documentation supports European Union projects. Factory Production Control certificates and Declarations of Performance demonstrate conformity with Construction Products Regulation requirements for structural applications.

Technical data sheets provide engineering information. Detailed specifications on section properties, load tables, and connection guidance assist engineers during design and specification phases.

FAQ

Q：What distinguishes EN10219 S355JRH from EN10210 S355JRH pipes?

A：The primary difference lies in manufacturing method. EN10219 covers cold-formed welded hollow sections, while EN10210 specifies hot-finished seamless or welded sections. Cold-formed pipes offer tighter dimensional tolerances and lower costs, making them suitable for most structural applications. Hot-finished pipes typically have lower residual stresses and better performance under dynamic loading, though at higher cost. For standard construction projects, the product provides excellent value and performance.

Q：Can these pipes be used in low-temperature environments?

A：S355JRH grade includes impact testing only at room temperature (+20°C). For applications involving sub-zero temperatures, engineers should specify S355J0H (tested at 0°C) or S355J2H (tested at -20°C). These upgraded grades ensure adequate toughness in cold climates. LONGMA GROUP manufactures all three impact grades, allowing you to select the appropriate specification for your environmental conditions.

Q：What welding considerations apply to S355JRH pipes?

A：S355JRH demonstrates excellent weldability with standard methods including MIG, TIG, and SAW processes. The controlled carbon equivalent ensures most welding can proceed without preheating. You should specify filler metals matching or exceeding the 355 MPa yield strength. Proper welding procedures and qualified welders are essential to maintain structural integrity. LONGMA GROUP can provide welding procedure recommendations based on your specific application requirements.

Q：How does galvanizing affect these high-strength pipes?

A：The product can be successfully hot-dip galvanized when silicon and phosphorus content is properly controlled during steel production. LONGMA GROUP monitors these elements to prevent the Sandelin effect, which can cause uneven or excessive zinc coating buildup. Proper galvanizing extends service life significantly in corrosive environments. We provide galvanizing services in-house or can supply bare pipes prepared for your preferred coating facility.

Q：What quality documentation should I expect when purchasing?

A：Professional suppliers provide comprehensive documentation including Mill Test Certificates showing complete chemical analysis, mechanical test results, dimensional verification, and heat number traceability. You should receive weld quality inspection records and surface inspection reports. For critical projects, request third-party inspection and additional non-destructive testing. LONGMA GROUP maintains complete traceability and provides all necessary documentation to support your quality assurance requirements and project specifications.

Contact Us

LONGMA GROUP delivers reliable EN10219-1 S355JRH Pipe solutions backed by two decades of manufacturing expertise and global project experience. Contact our technical team at info@longma-group.com to discuss your specifications and receive professional support for your structural engineering projects.
