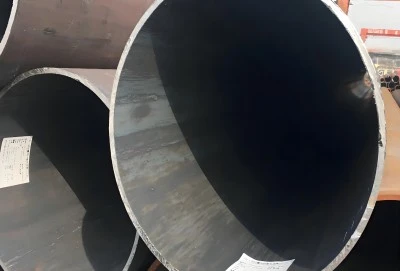

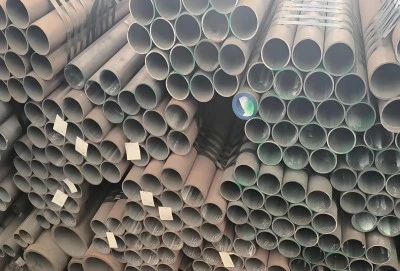

If you are sourcing structural hollow sections for a steel-frame building, warehouse, or equipment platform, the EN10219-1 S355JRH pipe is almost certainly on your specification sheet. This cold-formed welded hollow section meets European standard EN 10219-1 and delivers a minimum yield strength of 355 MPa — enough load-bearing capacity for most medium- to large-scale structural projects. This guide walks you through the grade's properties, how it compares with alternatives, what to verify before placing an order, and how to get the most from it on site.
|
|
|
Understanding EN10219-1 S355JRH Pipes — Specifications and Properties
What the Designation Actually Means?
The name has a very important meaning in science. In “JR” the Charpy V-notch impact value is 27 J at room temperature (+20 °C). In “S355” the minimum yield strength is 355 MPa. The last "H" on the item is a hollow structural section. These cold formed pipes are available in round, square and rectangle forms. They are created by high frequency resistance welding (HFW) or similar.
Chemical Composition
Manganese shall not exceed 1.60%, phosphorus shall not exceed 0.040 %, and sulphur shall not exceed 0.040 %. These restrictions are easily met and the material may be welded very successfully without heating up first. The controlled carbon equivalent also reduces the chances of cracking of heat affected zone during fabrication of product.
Mechanical Performance Data
This strength changes based on how thick the wall is. It ranges from 470 MPa to 630 MPa. The extension must be at least 20% to 22%. The rules for measurement boundaries, like concavity, convexity, and squareness, are set by EN 10219-2. The Construction Products Regulation (CPR) says that products used in buildings in the EU must have a CE mark on them. It is common for projects in Eastern Europe, the Middle East, and Southeast Asia that are overseen by engineers trained in Europe to need this grade.
Comparing EN10219-1 S355JRH with Other Steel Pipes — Making an Informed Choice
S355JRH vs. S355J2H and S355J0H
Toss and pull strengths are the same for all three grades. Things will not work the same when you try S355JRH at +20 °C, S355J0H at 0 °C, and S355J2H at −20 °C. J0H or J2H is safer to use for projects in Poland, Romania, or high-altitude Saudi areas where winter temperatures drop a lot. Most of the time, JRH is enough for buildings that are inside or in mild climates, and it costs less.
S355JRH vs. API 5L and Stainless Steel
There is no weight that the API 5L types are meant to hold. Instead, they are made to move fluids under pressure inside. In terms of their limits, they are not the same as EN 10219-2. You might not meet the requirements during a review if you use one instead of the other. Rust doesn't stick to flat stainless steel parts as well, but they cost three to five times more per ton. Most structural steel makers find that S355JRH is the best choice because it is the right price and works well technically with EN10219-1 S355JRH pipe.
Price and Lifecycle Considerations
The cost-per-tonne for S355JRH is always less than that of EN 10210 versions that are hot-finished. This is because the energy-intensive process of warming is not needed for cold forming. Hot-finished S355J2H, on the other hand, has lower residual stresses and may be better for links that are loaded and unloaded quickly. People who want to buy a standard should not only look at the FOB price, but also how much it will cost over its whole life.
Procurement Essentials for EN10219-1 S355JRH Pipes
Sourcing this grade effectively requires more than comparing price lists. Several practical factors determine whether your order arrives on time and passes inspection.
Here are the core procurement checkpoints every technical buyer should confirm before signing a contract:
- Certifications on file: Confirm the supplier holds a valid EN 10219-1 CE marking certificate and can provide a full Material Test Certificate (MTC) per EN 10204 3.1 or 3.2. Third-party verification by SGS or TÜV adds an extra layer of assurance, particularly when the end-client or supervising engineer requires independent confirmation.
- Delivery window: Project-driven procurement typically needs material in 15–30 days. Verify the mill's production schedule and stock availability before committing. A supplier with finished-goods inventory can often ship faster than one quoting off a rolling production slot.
- Tiered pricing and MOQ: Most manufacturers offer graduated pricing at 20-tonne, 50-tonne, and full-container-load thresholds. Align your order volume with these breaks to lower the unit cost without over-purchasing.
- Packaging and insurance: Bundled pipe with end caps, steel strapping, and moisture-barrier wrapping reduces transit damage. Request a clear statement of the supplier's insurance terms and confirm the Incoterms before the contract is signed.
These checkpoints are not bureaucratic formalities — they directly protect your project timeline and your company's budget. A missed certification or a damaged shipment can delay a construction milestone by weeks.
Technical Support and Best Practices for EN10219-1 S355JRH Pipe Usage
Welding Procedures
You can use MIG welding , TIG welding or submerged arc welding to join two pieces of S355JRH . The yield strength of the filler metal must not be less than 355 MPa. It has to be stronger than that. No pre-heating required if outside temperature is above 5 °C and wall thickness below 25 mm. Just make sure you follow the correct WPS (Welding Procedure Specification) and check with your site expert first.
Inspection Checkpoints
Before you put the pipe in place, make sure that the outside width and wall thickness of EN10219-1 S355JRH pipe match up with your plans. Take a look at the MTC to see how the impact test, carbon equivalent, and heat number tracking went. There shouldn't be any surface laminations, seam weld undercuts, or changes in the size or shape when you look at it. Ultrasonic weld testing is another way to make sure that a link is safe for places with a lot of traffic or heavy loads.
Maintenance and Defect Management
It is recommended to use a good primer within 24 to 48 hours of drilling or cutting in wet or outdoor places. This will keep the surface from oxidizing at the edges that will be seen. To make sure the Sandelin effect doesn't happen during hot-dip processing, check the amounts of silicon and phosphorus in the MTC for parts that have been galvanized. Most of the time, sheltered structures only need to be looked at once a year.
Advantages and Applications of EN10219-1 S355JRH Pipes
People who work as structural engineers and builders love the S355JRH grade because it solves real problems at a price that is easy to handle.
Many types of businesses are interested in it because of these major benefits:
- High strength-to-weight ratio: At 355 MPa minimum yield, designers can reduce section sizes compared with lower-grade S275JRH, cutting total steel tonnage and transportation costs without sacrificing structural integrity.
- Fabrication versatility: The grade cuts, drills, bends, and welds cleanly. Square and rectangular hollow sections simplify connection detailing and reduce the number of fittings needed on a typical portal frame.
- Compliance-ready documentation: CE marking, MTC, and third-party test reports satisfy most owner and supervising-engineer requirements in the EU, GCC, and ASEAN markets without additional material qualification steps.
- Versatile for making: It can drill, cut, bend, and weld without leaving marks. You can connect parts more easily and with fewer bolts if you use square or rectangular hollow pieces instead of round ones.CE marking, MTC, and third-party test results are all forms of documentation that are ready to be used. They meet the needs of most owners and managing engineers in the EU, GCC, and ASEAN markets without the need for extra material qualification steps.
Conclusion
It's not too expensive, and the EN10219-1 S355JRH pipe is a good mix of strength, ease of manufacture, and paperwork compliance. Southeast Asia, Eastern Europe, and the Middle East all have medium-sized building, warehouse, and equipment support projects that can benefit from this method. It is also a good business choice. Make sure the certifications are correct, the shipping times are clear, and the amount of your order matches the prices before you place it. In the long run, it saves a lot of time and money to get these things right when you ask for them.
FAQ
What is the difference between EN10219 and EN10210 for S355JRH?
For cold-formed empty parts, EN10219 is used, and for hot-finished parts, EN10210 is used. Pipes that have been hot-finished have less residual stress and work better when they are loaded and unloaded quickly. Low-cost EN10219 pieces that are cold-formed work well for most hard building needs.
Can this pipe grade be used in sub-zero temperatures?
Impact testing on S355JRH can only be done at +20 °C. If you need toughness for a project that will be used in cold places, choose S355J0H (tested at 0 °C) or S355J2H (tested at -20 °C).
What certifications should I request from a supplier?
This is what you should ask for: an EN 10219-1 CE Declaration of Performance, an EN 10204 3.1 or 3.2 MTC, and a third-party inspection report from SGS or TÜV if your client asks for one. Also, make sure that the seller has an ISO 9001 certification for quality management.
Is S355JRH suitable for hot-dip galvanizing?
Yes. Make sure that the silicon and phosphorus levels in the MTC stay in the right areas before putting parts through the galvanizer. This will keep the Sandelin effect from happening and create a smooth zinc covering.
How are dimensional tolerances verified?
With EN 10219-2, you can find out how close something is to being straight, square, or the right width around the outside. Ask for the mill's in-process inspection records or a measurement report from a third party if your project has tighter acceptance standards.
