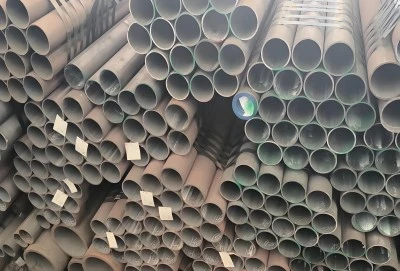

What the grade designation really says is the first step in choosing the proper structural hollow section for your cold-climate steel frames. EN10219-1 S355J0H pipe is a cold formed welded hollow section with a minimum yield strength of 355 MPa and a validated impact toughness of at least 27 Joules at 0°C. For procurement teams in Northern Europe, Canada, Russia or northeast China, this combination of strength and ductility at low temperature is the key factor in whether or not a steel frame can tolerate seasonal temperature changes without fracturing. This document provides specifications, selection criteria, sourcing strategy and technical best practices.
|
|
|
Understanding EN10219-1 S355J0H Pipe: Key Specifications and Standards
What the Grade Designation Means?
The “S” validates it for structural use. The yield strength MPa has the lowest value for “355”. J0 implies the product must to pass a Charpy impact test at 0°C with a minimum of 27 Joules of energy received. "H" implies the product has a hollow section. These names make for a traceable performance contract. EN 10219-1 is applied for mechanical norms and EN 10219-2 is applied for dimensional limits such as mass, straightness, wall thickness and outer diameter.
Chemical Composition and Weldability
The steel has a low Carbon Equivalent Value (CEV) with a maximum carbon concentration of 0.22% and a maximum manganese content of 1.60%. A low CEV in most ambient conditions permits rapid field welding without preheating, saving time and cost of manufacturing. Some publications give the range to 680 MPa although most sources have it between 470 and 630 MPa. It is a matter of wall thickness. Verify the mill’s Material Test Certificate (MTC) to ensure that you have the correct mechanical range.
Available Profiles and Dimensional Standards

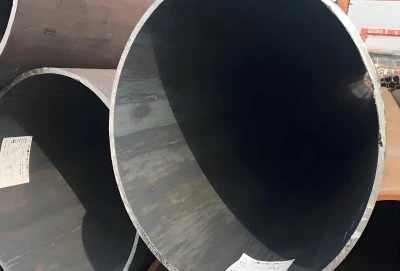

EN10219-1 S355J0H pipe hollow sections can be used to construct Circular Hollow Sections (CHS), Square Hollow Sections (SHS) and Rectangular Hollow Sections (RHS). Dimensional tolerances are in accordance with EN 10219-2 which contains requirements for squareness, straightness, outer diameter and wall thickness. These precise tolerances are critical in bolted connections and pre-engineered frame systems where dimensional deviation can accumulate through several members.
Criteria to Evaluate When Choosing S355J0H Pipe for Steel Frames
Load-Bearing Capacity and Structural Integrity
With a yield strength of 355 MPa, this grade can be used for main load-bearing columns, beams, and bracing in factories, equipment platforms, and conveyor systems. Check the design load against the section modulus tables from EN 1993 (Eurocode 3) before deciding on the grade. Oversizing a part wastes money, and undersizing it leads to a compliance failure when the job is turned over.
Grade Comparison: S355J0H vs. Alternatives
Knowing where S355J0H fits in relation to other grades helps you avoid mistakes that cost a lot of money. Here is a straight comparison of the grades that are most often seen in procurement:
- S355JR vs. S355J0H: S355JR is evaluated for impact at room temperature (20°C) and there is no assurance as to performance at low temperatures. If you’re working with an ambient installation or operation temperature of 0C or below to prevent the risk of brittle fracture, J0H is the right solution for your project.
- S355J2H vs. S355J0H: J2H takes the impact test down to −20°C and is the upgrade of choice for Arctic logistical hubs, Siberian pipeline supports or Scandinavian offshore structures where winter temperatures are routinely below −10°C.
- EN10210 S355J0H vs. EN10219 S355J0H: EN 10210 is for hot-finished hollow parts; EN 10219 for cold-formed sections. Hot-finished sections have less residual stress and slightly higher ductility but cold-formed sections are usually cheaper and give tighter dimensional tolerances appropriate for prefabricated frames.
- API 5L vs. S355J0H: API 5L is a standard for pipelines transit. It does not provide the same impact test technique or the profile of the structural hollow section. Using API 5L pipe in a structural steel frame without engineering sign-off breaks EN design assumptions.
When sending technical files to an owner's engineer in Norway, Sweden, or Canada for project approval, these differences become very important because inspectors there check that the sub-grade meets the project specifications.
Environmental and Application Fit
The effectiveness of strongness at 0°C has been demonstrated in cold-chain warehouse frames, bridge substructures in polar locations, wind turbine tower base rings and port crane gantries. If the project is close to a saline coast, you should select a corrosion protection system beyond the structural grade, such as hot dip galvanising or 3LPE coating. This is because the corrosion allowance is not covered by EN 10219-1.
Procurement Considerations: How to Source S355J0H Pipes Efficiently?
Supplier Qualification and Certification
To buy EN10219-1 S355J0H pipes from a reputed company, they should have third party mill inspection records from reputed organisations like Bureau Veritas, SGS, or TÜV, and CE marking under EN 10219-1. Need to track heat numbers for each pipe. That means each length should have a physical mark or laser stamp that ties back to the melt certificate, chemical and mechanical test findings in the mill quality system.
Pricing, MOQ, and Lead Time
The price of hollow sections is connected to the price of hot rolled coils, thus when placing an order with validity of more than 30 days, the pricing will be fixed based on a certain steel coil price index. Generally you have to acquire at least 20 to 40 metric tonnes of one size in standard stock quantities. Lead time increases by 2-4 weeks for bespoke wall thickness or non-standard lengths. Build this extra time into your project schedule so you don’t have to shell out extra to get things done faster.
Logistics and Documentation
If you are shipping something across borders to the EU, Canada or Russia, make sure the supplier can offer you the Inspection and Test Plan (ITP), the Manufacturing Procedure Specification (MPS), the Welding Procedure Specification (WPS) and the Procedure Qualification Record (PQR). Customs officers and project owners are increasingly demanding these papers at the point of entry – not simply at the handover.
Summarizing the Benefits and Making the Final Selection
S355J0H hollow sections are more cost effective and more reliable in cold weather conditions than hot finished solutions in terms of price. The verified impact toughness at 0°C removes brittleness risk of conventional JR grade portions in temperate and subarctic areas. Tighter tolerances on dimensions reduce fit-up time during fabrication, which reduces the cost of labour per connection. The purchasing managers analyse several possibilities using a weighted criteria matrix, and S355J0H usually wins since it is possible to inspect for toughness, to weld, it has accurate geometrical dimensions and can be acquired from ISO mills.
The method for the selection of materials was validated on a project in the north of Scandinavia where 800 metric tonnes of structural hollow sections were required. The project team selected S355J0H CHS for the primary beams and RHS for the secondary bracing. All components successfully passed the Charpy test at 0°C with ≥34 J, well over the minimum requirement of 27 J. The owner’s engineer was satisfied with the entire heat-number tracking throughout the third-party audit. The job was completed on time and did not require any structure work to be done again.
If the temperature in the location of your project regularly dips below -10°C, then you might wish to switch to S355J2H, which has a -20°C impact guarantee and gives you extra safety in case of extreme cold.
Conclusion
More than the grade designation is required to choose EN10219-1 S355J0H pipe hollow sections for steel frames in cold or mild climates. Before ordering, verify the Charpy impact data, heat number traceability, grades vs the actual design temperature and the certification package from your supplier. When these actions are done in a planned method the S355J0H pipe provides uniform structural performance, easy weldability and long-term project compliance. “Choose the right grade and you will have fewer problems in the field, easier owner checks and a building that performs as intended for its entire service life.”
FAQ
What is the difference between S355J0H and S355J2H?
The only change in structure is the temperature at which the Charpy impact test is done. At 0°C, S355J0H is tested with an energy threshold of 27 J. At -20°C, S355J2H is tried with the same energy threshold. When designing for temperatures of -15°C or less, like in Siberia, northern Canada, or Norway's Arctic zones, S355J2H is the safer and better choice.
Can S355J0H pipe be galvanized?
Yes. To make a smooth, stick-on zinc covering, the steel's silicon and phosphorus levels must be within the range of the Sandelin curve. Before you approve a galvanizing specification, get the mill's full chemistry certificate and look over the silicon content. Silicon levels that are out of control lead to a thick, brittle gray covering that makes the metal less resistant to rust.
What documentation should I require from a supplier?
Ask for the Material Test Certificate (MTC) with heat number, the EN 10219-1 declaration of conformity, the CE marking paperwork, the ISO 9001 certificate, the Charpy impact test report, and the dimensional inspection report at the very least.
Is EN10219-1 S355J0H pipe suitable for pressure applications?
Not at all. EN 10219-1 is a standard for buildings, not for pressure tools. Pipes must meet EN 10217 or a similar pressure design code in order to be used for pressure service. Using structural hollow parts in pressure systems without getting them re-qualified poses risks to both safety and following the rules.
How long does procurement typically take?
From signing off on the technical specifications to delivery, allow four to ten weeks. Every size in stock ships in two to three weeks. Custom sizes, different wall thicknesses, or check hold places by a third party make this process longer. To keep the project on track, make sure you plan your procurement schedule well.
